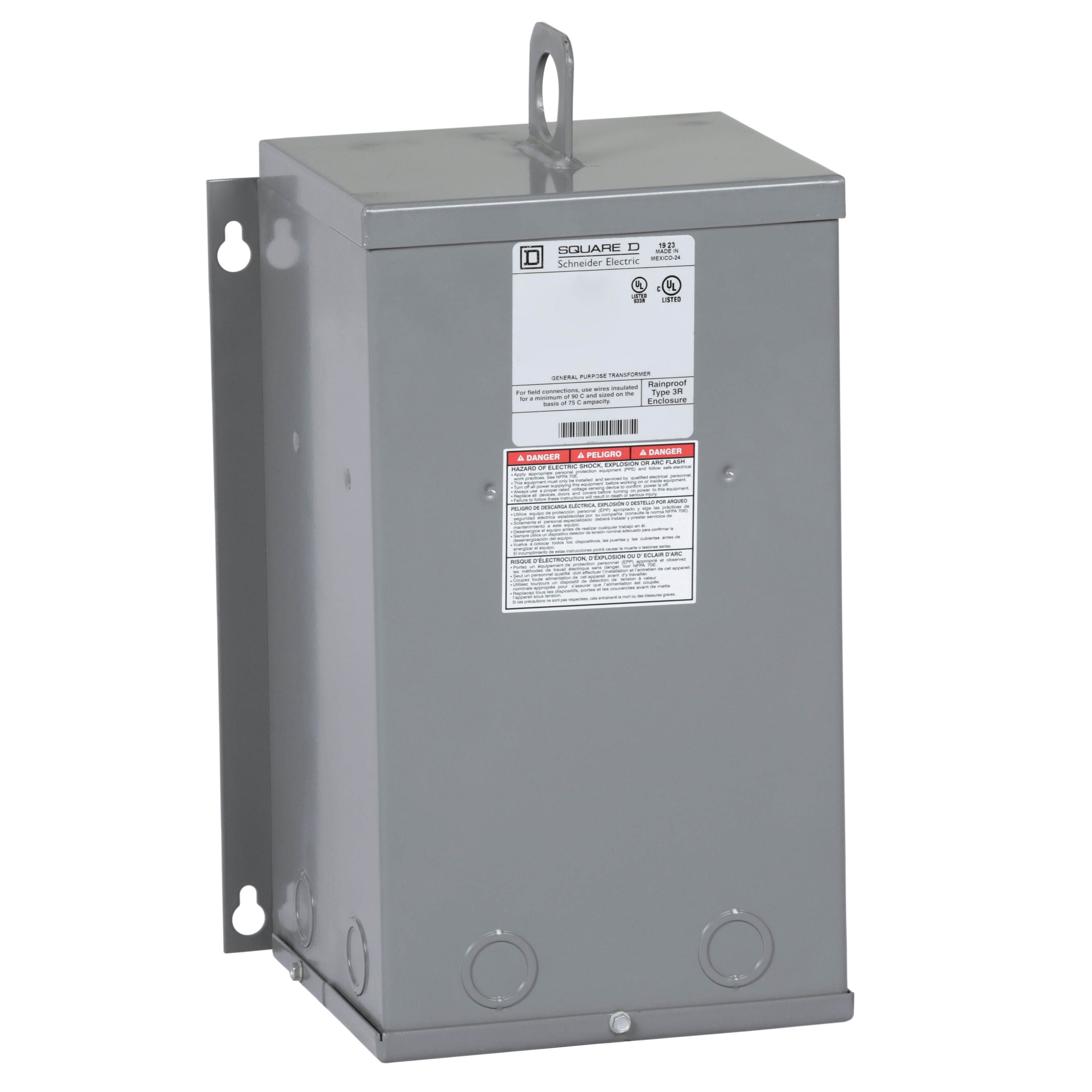

Square D™ 3S82F Dry Buck and Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 3 kVA Power Rating, 60 Hz, 1 ph Phase
Buck Boost Transformers
1323780
MFG #: 3S82F
Square D™
3341.61000
/ ea
Square D™ Buck and Boost Transformer, Dry, 240/480 VAC Primary, 24/48 VAC Secondary, 3 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R/IP54 Enclosure, 115 deg C, Steel Housing Material, 14.5 in H x 8.6 in W x 6.5 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8039996360Den&ext=webp(360 Degree View URL)
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_P1B354SDQURE7JNY.pdf(Spec Sheet URL)
- User Manual URL - 11003_QXST3ZIONWYJU17F.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/aFXeLjeOFxI(Video)
- Applications
- Features
| For buck and boost primary use is that the primary and secondary can be interconnected for use as an autotransformer |
| SEALED AND RESIN FILLED |
| The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R-rated |
| Carry the full load stated on the nameplate isolation transformer |
| Can carry loads in excess of their nameplate rating |
| Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings |
| Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected |
| Economical, compact means of slightly adjusting an application's voltage up or down |
| Gray color |
| Powder coated painted steel enclosure |
| Sealed and resin filled |
