Square D™

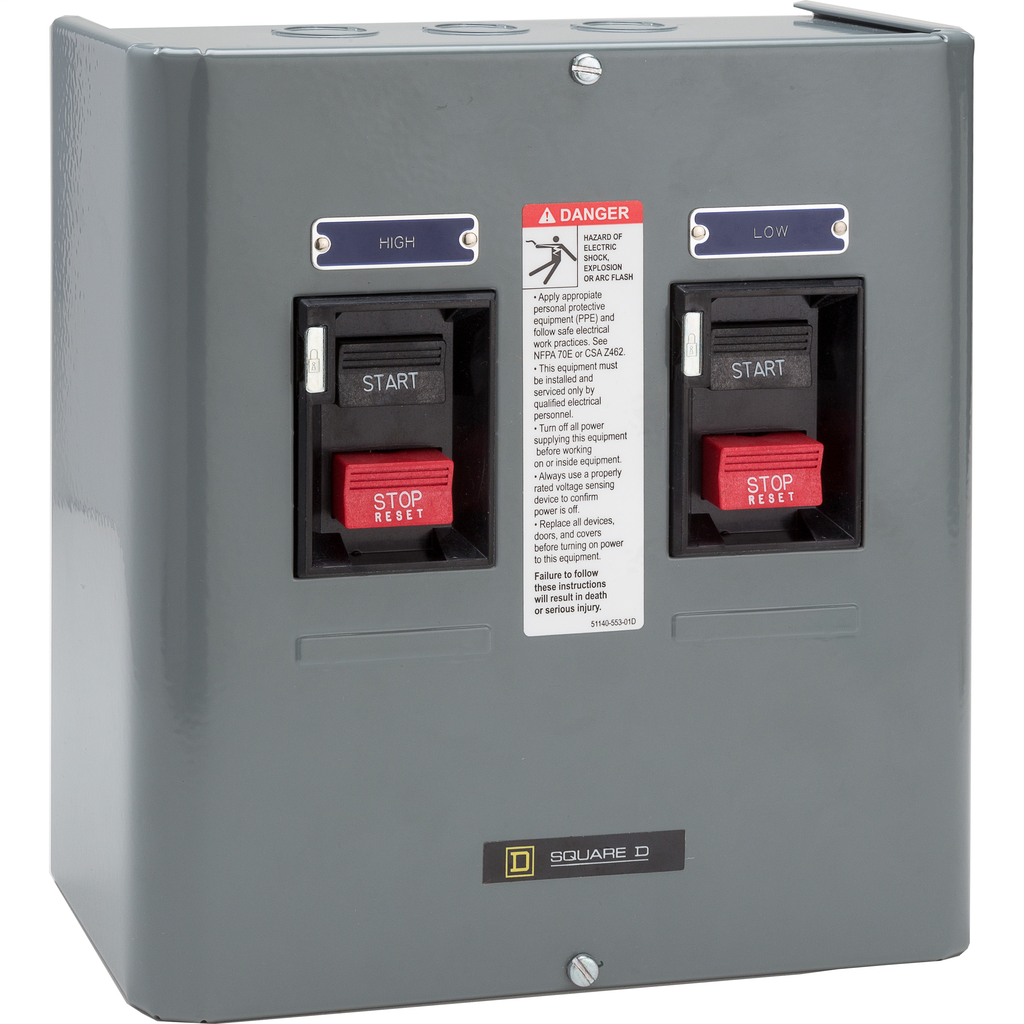

Square D™ 2511MCG1 MANUAL STARTER 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2511MCG1 MANUAL STARTER 600VAC
SKU246856
MFGR #2511MCG1
Your Cost: $1,542.77/ea
Square D 2511MCG1 MANUAL STARTER 600VAC,18A,3-Phase,3P,600VAC/250VDC,7.5HP200/230VAC - 10HP380/575VAC,General Purpose (Indoor),M,M-1,NEMA 1,Reversing Manual Starter,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,without
Square D 2511MCG1 MANUAL STARTER 600VAC,18A,3-Phase,3P,600VAC/250VDC,7.5HP200/230VAC - 10HP380/575VAC,General Purpose (Indoor),M,M-1,NEMA 1,Reversing Manual Starter,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,without
Amperage Rating 18 A ARRA Compliant N Buy American Compliant N Catalog Number 2511MCG1 Connection Type Screw Clamp Control Type Square Pushbutton Country of Origin MX Dimensions 5 in W x 4.13 in D x 8.63 in H EU RoHS Indicator N Gross Weight Per Pack 10.0000 lb Harmonization Tariff Schedule Code 8536504000 Item Group 21103 Material Sheet Steel Motor Power 7.5 hp at 200/230 VAC/10 hp at 380/575 VAC Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Phase 3 pH Reset Type (3) Thermal Melting Alloy Returnable Y Series 2511 Substitute Product Catalog Number 9999MP1 UNSPSC 39121521 UPC 11 78590133266 UPC 12 785901332664 Voltage Rating 600 VAC/250 VDC Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Action Reversing Enclosure Type NEMA 1 Type TYPE M WITHOUT Inexpensive motor control where low voltage protection is not required Reliable melting alloy thermal units Simple operation Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three Type B thermal units for 3-ph starters (All thermal units must be installed and the device reset before the starter contacts will operate) NEMA type 1 general purpose enclosure NEMA M-1
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 18 A |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 2511MCG1 |
| Connection Type | Screw Clamp |
| Control Type | Square Pushbutton |
| Country of Origin | MX |
| Dimensions | 5 in W x 4.13 in D x 8.63 in H |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 10.0000 lb |
| Harmonization Tariff Schedule Code | 8536504000 |
| Item Group | 21103 |
| Material | Sheet Steel |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 380/575 VAC |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Phase | 3 pH |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 2511 |
| Substitute Product Catalog Number | 9999MP1 |
| UNSPSC | 39121521 |
| UPC 11 | 78590133266 |
| UPC 12 | 785901332664 |
| Voltage Rating | 600 VAC/250 VDC |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Action | Reversing |
| Enclosure Type | NEMA 1 |
| Type | TYPE M |
| WITHOUT |
| Inexpensive motor control where low voltage protection is not required |
| Reliable melting alloy thermal units |
| Simple operation |
| Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three |
| Type B thermal units for 3-ph starters (All thermal units must be installed and the device reset before the starter contacts will operate) |
| NEMA type 1 general purpose enclosure |
| NEMA M-1 |
