Square D™

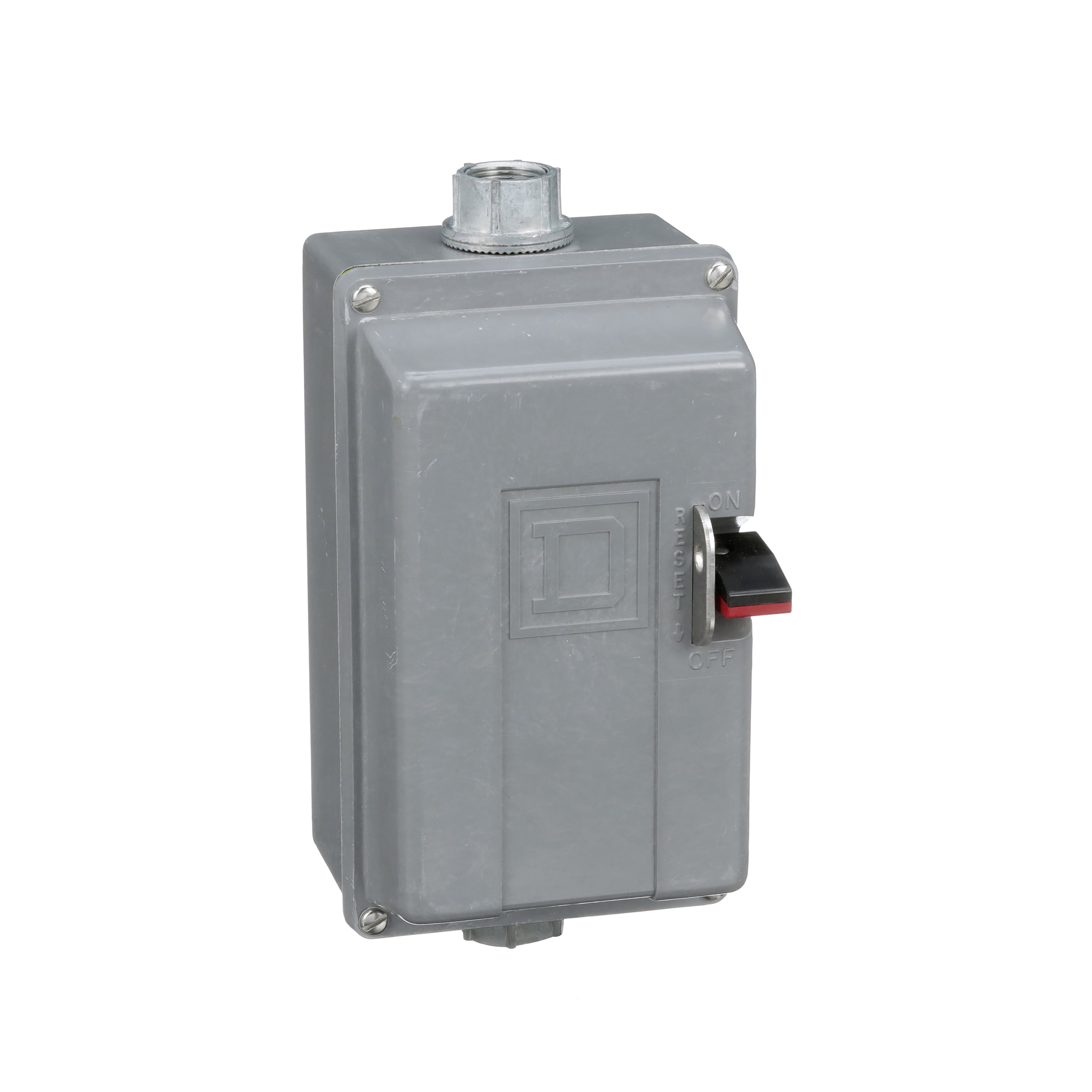

Square D™ 2510MCW3 MANUAL STARTER 600VAC
Custom_Product_Images_Illustration
Square D™
Square D™ 2510MCW3 MANUAL STARTER 600VAC
SKU34653
MFGR #2510MCW3
Your Cost: $926.64/ea
List: Square D 2510MCW3 MANUAL STARTER 600VAC,27A,3-Phase,3P,600VAC/250VDC,7.5HP200/230VAC - 10HP380/575VAC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-1,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Al
Square D 2510MCW3 MANUAL STARTER 600VAC,27A,3-Phase,3P,600VAC/250VDC,7.5HP200/230VAC - 10HP380/575VAC,Glass Polyester - Water tight, Dust tight and Corrosion Resistant,M,M-1,NEMA 4/4X,Non-Reversing Manual Starter,Pressure Wire Clamp,Thermal - Melting Al
Alternate Catalog Number 2510MCW3 Amperage Rating 27 A ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 2510MCW3 Connection PRESSURE WIRE CLAMP Connection Type Pressure Wire Clamp Control Type Pushbutton Switch Country of Origin MX Currency USD Depth 6.41 in Dimensions 6.5 in W x 6.41 in D x 12.13 in H Enclosure Type NEMA 4/4X EU RoHS Indicator Y Gross Volume Per Pack 752.51 Gross Volume per Pack Metric 12331.45 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 7.9400 lb Gross Weight per Pack Metric 3.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536504000 Height 17.5260 in Height [Metric] 17.3000 cm Item Group 21103 Length 33.7820 in Length [Metric] 33.5000 cm Manufacturer Schneider Electric Material Glass Polyester Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506391&lang=en-us Motor Power 7.5 hp at 200/230 VAC/10 hp at 380/575 VAC Number Of Poles 3 Operating Temperature 0 to 40 deg C Ambient Overload Relay Thermal Melting Alloy Phase 3 pH Reset Type (3) Thermal Melting Alloy Returnable Y Series 2510 Size M-1 in Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand M Substitute Product Catalog Number 9999SX11 Type TYPE M UNSPSC 39121521 UPC 11 78590182102 UPC 12 785901821021 Voltage Rating 600 VAC/250 VDC VAC Warranty Description Contractual Warranty:18 months Width 20.8280 in Width [Metric] 20.8000 cm WITHOUT Inexpensive motor control where low voltage protection is not required Reliable melting alloy thermal units Simple operation Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three Type B thermal units for 3-ph starters (All thermal units must be installed and the device reset before the starter contacts will operate) NEMA M-1 NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 2510MCW3 |
| Amperage Rating | 27 A |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 2510MCW3 |
| Connection | PRESSURE WIRE CLAMP |
| Connection Type | Pressure Wire Clamp |
| Control Type | Pushbutton Switch |
| Country of Origin | MX |
| Currency | USD |
| Depth | 6.41 in |
| Dimensions | 6.5 in W x 6.41 in D x 12.13 in H |
| Enclosure Type | NEMA 4/4X |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 752.51 |
| Gross Volume per Pack Metric | 12331.45 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 7.9400 lb |
| Gross Weight per Pack Metric | 3.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536504000 |
| Height | 17.5260 in |
| Height [Metric] | 17.3000 cm |
| Item Group | 21103 |
| Length | 33.7820 in |
| Length [Metric] | 33.5000 cm |
| Manufacturer | Schneider Electric |
| Material | Glass Polyester |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=506391&lang=en-us |
| Motor Power | 7.5 hp at 200/230 VAC/10 hp at 380/575 VAC |
| Number Of Poles | 3 |
| Operating Temperature | 0 to 40 deg C Ambient |
| Overload Relay | Thermal Melting Alloy |
| Phase | 3 pH |
| Reset Type | (3) Thermal Melting Alloy |
| Returnable | Y |
| Series | 2510 |
| Size | M-1 in |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | M |
| Substitute Product Catalog Number | 9999SX11 |
| Type | TYPE M |
| UNSPSC | 39121521 |
| UPC 11 | 78590182102 |
| UPC 12 | 785901821021 |
| Voltage Rating | 600 VAC/250 VDC VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 20.8280 in |
| Width [Metric] | 20.8000 cm |
| WITHOUT |
| Inexpensive motor control where low voltage protection is not required |
| Reliable melting alloy thermal units |
| Simple operation |
| Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three |
| Type B thermal units for 3-ph starters (All thermal units must be installed and the device reset before the starter contacts will operate) |
| NEMA M-1 |
| NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure |
