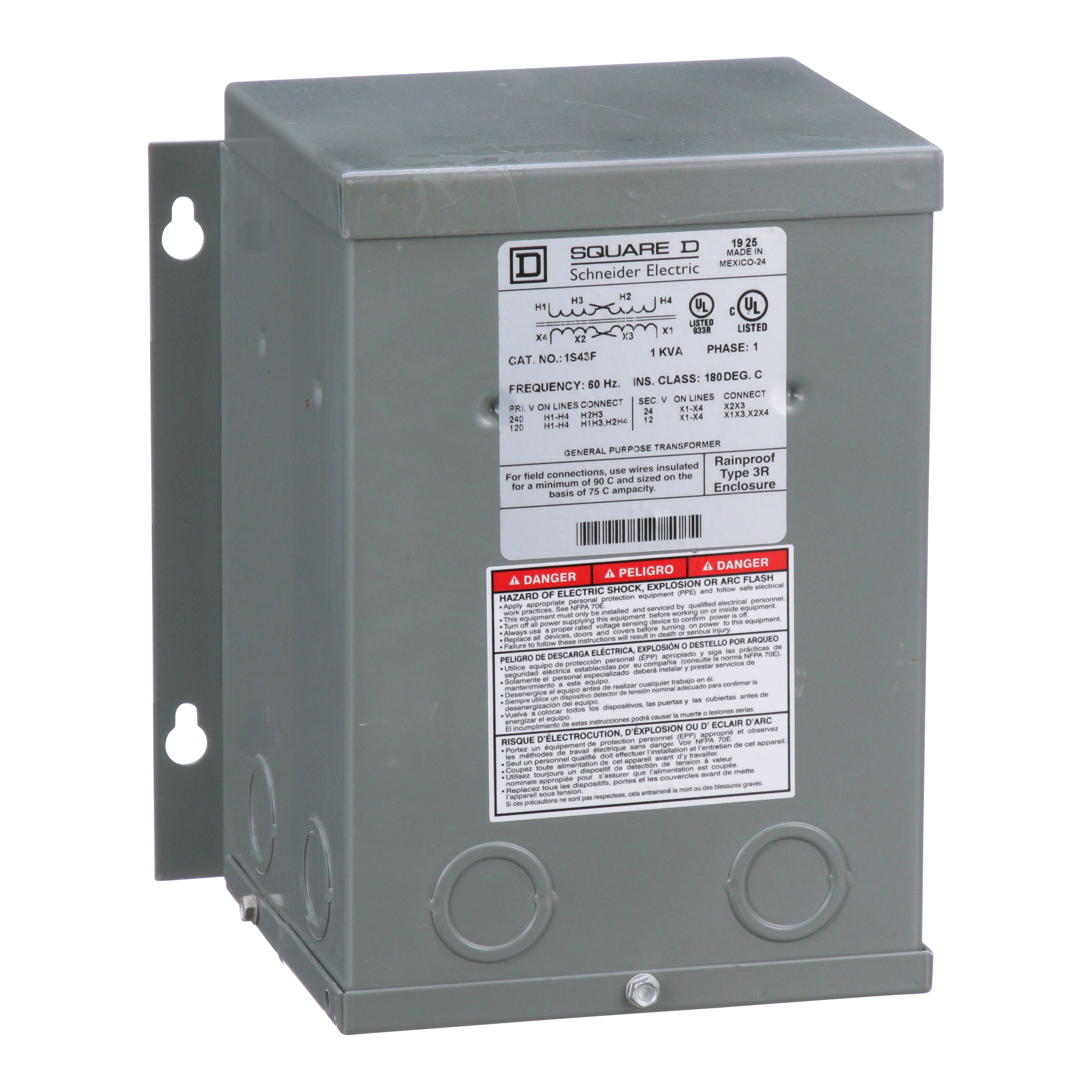

Square D™ 1S43F Dry Buck And Boost Transformer, 120/240 VAC Primary, 12/24 VAC Secondary, 1 kVA Power Rating, 60 Hz, 1 ph Phase
Buck Boost Transformers
268919
MFG #: 1S43F
Square D™
1090.39000
/ ea
Square D™, 1S43F, Buck And Boost Transformer, Dry, 120/240 VAC Primary, 12/24 VAC Secondary, 1 kVA Power, 60 Hz Frequency, 1 ph, Wall Mounting, 180 deg C Insulation, NEMA 3R/IP54 Enclosure, 115 deg C, Steel Housing Material, 8.13 in H x 6.94 in W x 5.31 in D Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8073194360Den&ext=webp(360 Degree View URL)
- Brochure URL - 482202b17e9da3c7d6a61d89b7977d1d0715c6f6.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3618.DWF(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3618.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_7PX62F3SAIMYRH81.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_GCV4H7QKSO0B9FYR.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_DVHEKX1S046YAG57.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_I5X80GJ2HWECKZ3T.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_43NVIBFTZKUS5YJ6.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_OQMD1HPJWR2ZB4TU.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/aFXeLjeOFxI(Video)
- Applications
- Features
| For buck and boost primary use is that the primary and secondary can be interconnected for use as an autotransformer |
| SEALED AND RESIN FILLED |
| The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R-rated |
| Carry the full load stated on the nameplate isolation transformer |
| Can carry loads in excess of their nameplate rating |
| Numerous voltage ratios and current ratings can be obtained by varying the connection between the two primary windings and the two secondary windings |
| Increased ampacity depends upon the ratio and the voltage to which the transformer is subjected |
| Economical, compact means of slightly adjusting an applications voltage up or down |
| Gray color |
| Powder coated painted steel enclosure |
| Sealed and resin filled |
