SolaHD™

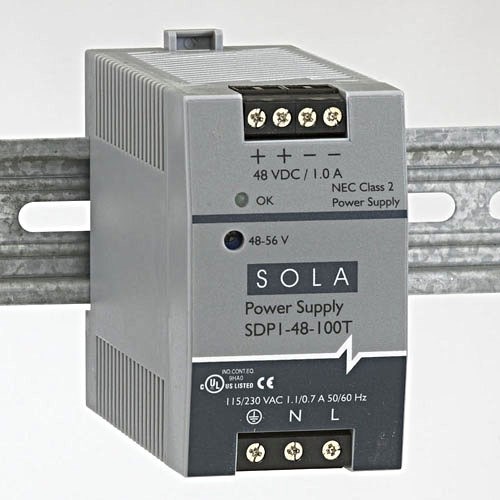

SolaHD SDP™ SDP 1-48-100T Low Power DC Power Supply, 85 to 264 VAC/90 to 375 VDC Input, 48 to 56 VDC Output, 50 W, 1 A
Custom_Product_Images_Illustration
SolaHD™
SolaHD SDP™ SDP 1-48-100T Low Power DC Power Supply, 85 to 264 VAC/90 to 375 VDC Input, 48 to 56 VDC Output, 50 W, 1 A
SKU336460
MFGR #SDP148100T
The compact, lightweight DIN rail power supplies come in output voltages from 5 to 48 VDC and power ratings of up to 100 Watts. these extra small, efficient units are designed specifically for the industrial environment. each unit is rated from -10 deg C to 70 deg C, with no derating necessary until above 60 deg C. Many extra "industrial" features are standard for the SDP PowerBoost™ overload circuitry can start up industrial loads (i.e. motors, relays, solenoids and DC-DC converters), that can cause ordinary power supplies to foldback or shutdown. each unit contains a DC indicator and front panel adjustment potentiometer. with the SolaHD SDP series, you can count on a high grade design.
The compact, lightweight DIN rail power supplies come in output voltages from 5 to 48 VDC and power ratings of up to 100 Watts. these extra small, efficient units are designed specifically for the industrial environment. each unit is rated from -10 deg C to 70 deg C, with no derating necessary until above 60 deg C. Many extra "industrial" features are standard for the SDP PowerBoost™ overload circuitry can start up industrial loads (i.e. motors, relays, solenoids and DC-DC converters), that can cause ordinary power supplies to foldback or shutdown. each unit contains a DC indicator and front panel adjustment potentiometer. with the SolaHD SDP series, you can count on a high grade design.
Application For applications where good voltage regulation and higher power capacities (1000-5000 VA) are required. ARRA Compliant N Buy American Compliant N Cable Size 20 to 12 Solid or Stranded Case Material Plastic Catalog Number SDP148100T Country of Origin TW Currency USD Depth 11.3 in Efficiency 83.00 Enclosure Class 1, IP20 Environmental Conditions 90 RH Humidity Range EU RoHS Indicator Y Frequency Rating 47 to 63 HZ Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Height 2.50 in Height [Metric] 6.3500 cm Insulation Class 180 DEG C Insulation System Length 5.50 in Length [Metric] 13.9700 cm Mounting Mtg Width 8.00, Mtg Depth 5.81, Slot Size .44 x .69 Number Of Taps 6 Standard UL Listed: E77014, UL 506; CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant Type Low Power UNSPSC 39121009 UPC 11 78347215155 UPC 12 783472151554 Width 5.00 in Width [Metric] 12.7000 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Amperage Rating 1 A Input Voltage 85 to 264 VAC/90 to 375 VDC Mounting Type DIN Rail Output Voltage 48 to 56 VDC Power Rating 50 W For applications where good voltage regulation and higher power capacities (1000-5000 VA) are required. Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC.
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For applications where good voltage regulation and higher power capacities (1000-5000 VA) are required. |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Cable Size | 20 to 12 Solid or Stranded |
| Case Material | Plastic |
| Catalog Number | SDP148100T |
| Country of Origin | TW |
| Currency | USD |
| Depth | 11.3 in |
| Efficiency | 83.00 |
| Enclosure | Class 1, IP20 |
| Environmental Conditions | 90 RH Humidity Range |
| EU RoHS Indicator | Y |
| Frequency Rating | 47 to 63 HZ |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Insulation | Class 180 DEG C Insulation System |
| Length | 5.50 in |
| Length [Metric] | 13.9700 cm |
| Mounting | Mtg Width 8.00, Mtg Depth 5.81, Slot Size .44 x .69 |
| Number Of Taps | 6 |
| Standard | UL Listed: E77014, UL 506; CSA Certified: LR-14328-4, CSA C22.2 No. 66. RoHS Compliant |
| Type | Low Power |
| UNSPSC | 39121009 |
| UPC 11 | 78347215155 |
| UPC 12 | 783472151554 |
| Width | 5.00 in |
| Width [Metric] | 12.7000 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Amperage Rating | 1 A |
| Input Voltage | 85 to 264 VAC/90 to 375 VDC |
| Mounting Type | DIN Rail |
| Output Voltage | 48 to 56 VDC |
| Power Rating | 50 W |
| For applications where good voltage regulation and higher power capacities (1000-5000 VA) are required. |
| Meets or exceeds electrical requirements of NEMA, ANSI, NMTBA and JIC. |
