SolaHD™

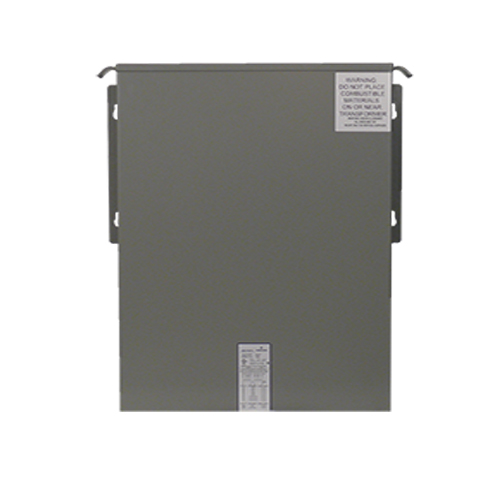

SolaHD HS2 Encapsulated Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD™
SolaHD HS2 Encapsulated Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 7.5 kVA, 60 Hz, 1 Phase
SKU564017
MFGR #HS22F75A
Your Cost: $2,346.86/ea
List: Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
ARRA Compliant Y Buy American Compliant Y Catalog Number HS22F75A Country of Origin US Currency USD Dimensions 17 in H x 14 in W x 9 in D Enclosure Type NEMA 3R EU RoHS Indicator C Gross Weight Per Pack 0.0110 lb Maximum Amperage Rating 312/156 A Series HS22 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 Type Encapsulated UNSPSC 39121027 UPC 11 78347254230 UPC 12 783472542307 Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 7.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 24/48 VAC Low cost, compact size and lightweight They are more efficient and cost less than equivalent isolation transformers They can handle loads up to 20 times the nameplate rating A buck-boost transformer is the ideal solution for changing line voltage by small amounts
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HS22F75A |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 17 in H x 14 in W x 9 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.0110 lb |
| Maximum Amperage Rating | 312/156 A |
| Series | HS22 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 |
| Type | Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 78347254230 |
| UPC 12 | 783472542307 |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 7.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 24/48 VAC |
| Low cost, compact size and lightweight |
| They are more efficient and cost less than equivalent isolation transformers |
| They can handle loads up to 20 times the nameplate rating |
| A buck-boost transformer is the ideal solution for changing line voltage by small amounts |
