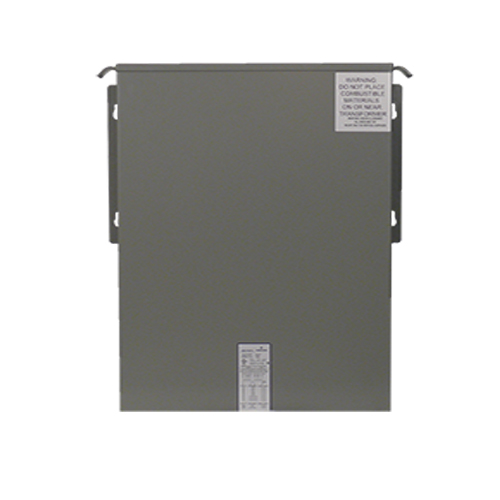

SolaHD HS14F7.5BS Non-Ventilated Automation Transformer, 208/240/415/480 VAC Primary, 120/240 VAC Secondary, 7.5 kVA
Hazardous Location Transformers
89953
MFG #: HS14F7.5BS
SolaHD™
1551.17000
/ ea
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
- WEB OWNERS MANUAL URL - SolaHD_HS10F1_5AS_Manual.pdf(WEB OWNERS MANUAL URL)
- WEB SELLER HOME PAGE URL - solahd.aspx(WEB SELLER HOME PAGE URL)
- WEB SPEC SHEET URL(WEB SPEC SHEET URL)
- WEB WARRANTY 1 URL - WAR_appleton-grp-terms-and-conditions.pdf(WEB WARRANTY 1 URL)
- WEB WARRANTY URL - appleton-grp-terms-and-conditions.pdf(WEB WARRANTY URL)
- Applications
- Features
| SolaHD encapsulated transformer rated for harsh industrial environments |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. |
| Conduit knockouts for side entry into wiring compartment |
| NEMA type 3R non encapsulated enclosure for indoor and outdoor service |
| 80 deg C temperature rise under full load |
| Copper wound designs |
| 190/200/208/220/380/400/415/440 VAC primary, 110/220 VAC secondary, 200/208/230/400/415/460 VAC primary, 115/230 VAC secondary, 208/240/415/480 VAC primary, 120/240 VAC secondary voltage |
| 190/200/208/220/380/400/415/440, 200/208/230/400/415/460, 208/240/415/480 VAC primary volt |
| 110/220, 115/230, 120/240 VAC secondary volt |
| 2.08/1.04 A primary, 4.16/2.08 A secondary |
