SolaHD™

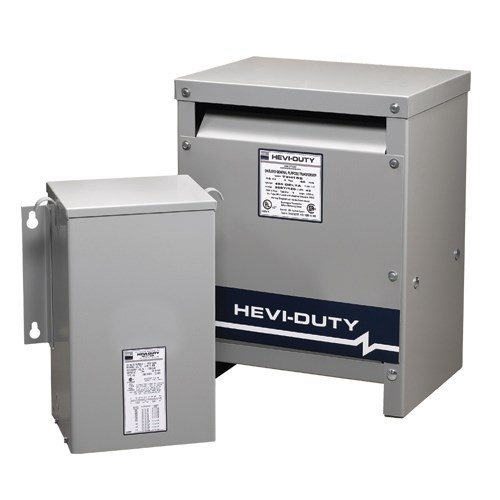

SolaHD DT661H11S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 11 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD DT661H11S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 11 kVA, 60 Hz
SKU183506
MFGR #DT661H11S
Your Cost: $1,668.62/ea
List: SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 11 kVA, 60 Hz, 3 Phase, 1, 5% FCAN/1, 5% FCBN Taps, Floor Mount, NEMA 3R, 23 in H x 18 in W x 14 in D
SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 11 kVA, 60 Hz, 3 Phase, 1, 5% FCAN/1, 5% FCBN Taps, Floor Mount, NEMA 3R, 23 in H x 18 in W x 14 in D
Application Drive Isolation ARRA Compliant Y Buy American Compliant Y Catalog Number DT661H11S Country of Origin US Currency USD Dimensions 23 in H x 18 in W x 14 in D Enclosure Type NEMA 3R EU RoHS Indicator Y Frequency 60 Hz Gross Weight Per Pack 172.0000 lb Gross Weight per Pack Metric 78.02 Gross Weight UOM Metric kg Height 29.00 in Height [Metric] 73.6600 cm KVA Rating 11 KVA Length 20.00 in Length [Metric] 50.8000 cm Mounting Floor Mounting Type Floor Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561UL File No. E25872cULus File No. E77014CSA C22.2 No. 66 Type Ventilated UNSPSC 39121029 UPC 11 78347254275 UPC 12 783472542758 Width 21.00 in Width [Metric] 53.3400 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 pH Power Rating 11 kVA Primary Voltage 460 VAC Secondary Voltage 133/230 VAC Drive Isolation Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the National Electric Code Shielding attenuates line to ground noise Isolation minimizes load disturbances caused by the SCR drive A transformer is needed to magnetically isolate the incoming line from the motor drive The transformer must also provide a voltage change to match the required voltage of the SCR drive Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Drive Isolation |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | DT661H11S |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 23 in H x 18 in W x 14 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 172.0000 lb |
| Gross Weight per Pack Metric | 78.02 |
| Gross Weight UOM Metric | kg |
| Height | 29.00 in |
| Height [Metric] | 73.6600 cm |
| KVA Rating | 11 KVA |
| Length | 20.00 in |
| Length [Metric] | 50.8000 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561UL File No. E25872cULus File No. E77014CSA C22.2 No. 66 |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 78347254275 |
| UPC 12 | 783472542758 |
| Width | 21.00 in |
| Width [Metric] | 53.3400 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 pH |
| Power Rating | 11 kVA |
| Primary Voltage | 460 VAC |
| Secondary Voltage | 133/230 VAC |
| Drive Isolation |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the National Electric Code |
| Shielding attenuates line to ground noise |
| Isolation minimizes load disturbances caused by the SCR drive |
| A transformer is needed to magnetically isolate the incoming line from the motor drive |
| The transformer must also provide a voltage change to match the required voltage of the SCR drive |
| Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
