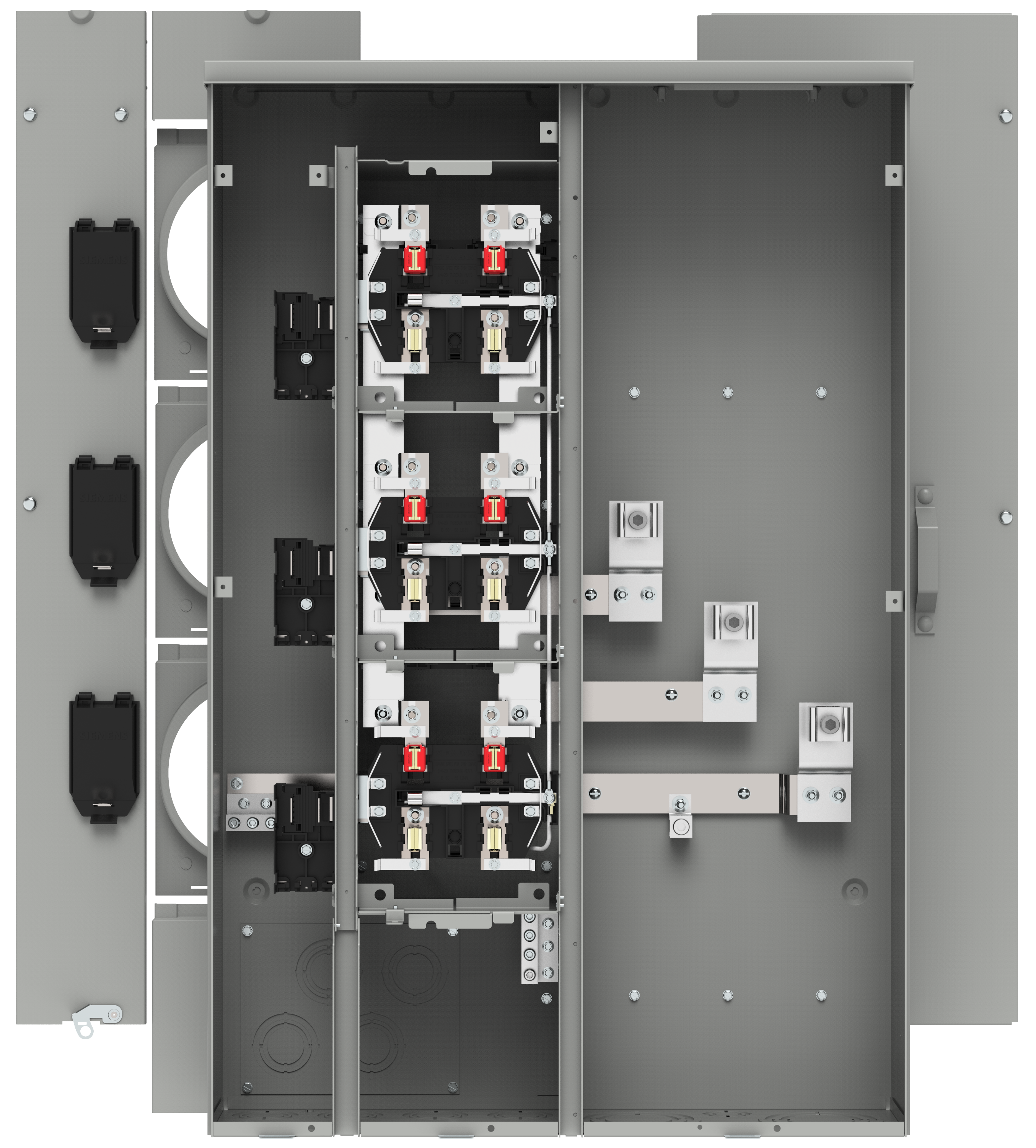

Siemens WP Series Ringless Style Meter Socket, 120/240 VAC, 300 A, 1 Phase
Meter Sockets - Multi Position
1087693
MFG #: WP3311RJB
Siemens
878.02000
/ ea
Siemens Meter Socket, Ringless Style, Series: WP Series, 120/240 VAC, 300 A, 1 Phase, Top/Bottom Feed, 2 AWG to 600 kcmil Wire, Tenant Cover, Rail Mount, 38.69 in H x 25.42 in W x 8.63 in D
- Brochure URL - SIE_BR_UNIPAK_METERING_WP.pdf(Brochure URL)
- http://www.sea.siemens.com(WEB SELLER HOME PAGE URL)
- User Manual URL - PAKInstructionSheet.pdf(User Manual URL)
- WEB SPEC SHEET URL - SIE_CS_WP3311x.pdf(WEB SPEC SHEET URL)
- Wiring Diagram URL - SIE_WD_UniPak_WP3311-RJ-RJB.pdf(Wiring Diagram URL)
- Applications
- Features
| SERVICEENTRANCEEQUIPMENT |
| HORN BYPASS |
| Individual split covers with barrel lock compatibility |
| Horn bypass factory installed |
| Completely self-contained meter centers |
| Compact, pre-bussed, easy to handle, hang and wire |
| Barriered, sealable compartment for unmetered current carrying parts |
| Aluminum/copper lay-in lugs, except two position 125 A units |
| Bottom and rear branch wiring exits (neutral and ground at bottom only) |
| ANSI NO 61 light gray electro-deposited paint on zinc coated steel |
| 5th jaw kit included |
| 3-wire connection |
| 125 A sockets feed plug-in tenant breakers through 125 A |
| 65 kA interrupt rating |
| QP, QPH, HQP, MP-T, MP-HT, MP-MT breaker provision |
