Siemens

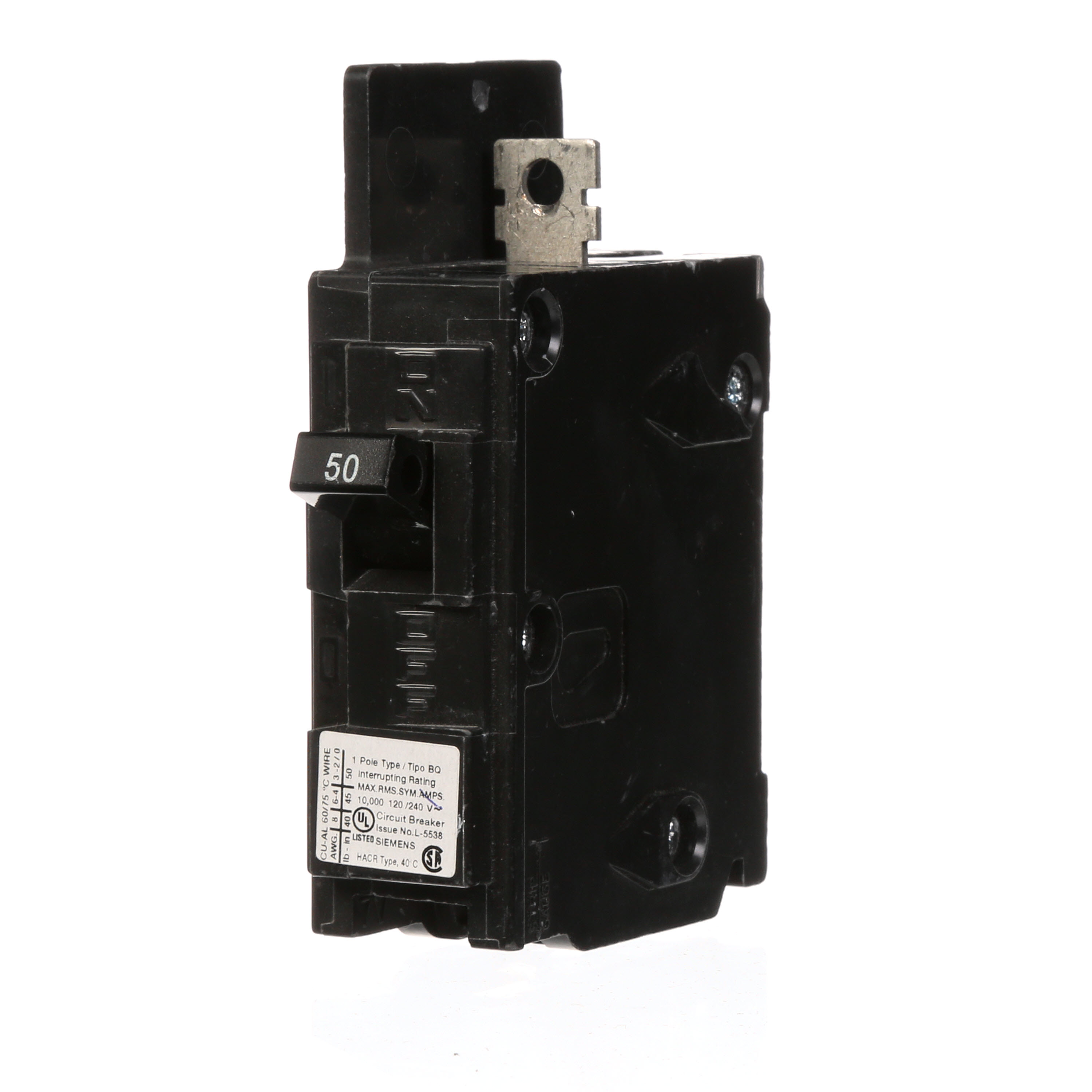

Siemens Speedfax™ BQ1B050 Molded Case Circuit Breaker, 120 VAC, 50 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ BQ1B050 Molded Case Circuit Breaker, 120 VAC, 50 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU27408
MFGR #BQ1B050
Your Cost: $71.51/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Actuator N/A Actuator Type Toggle Alternate Catalog Number US2:BQ1B050 Application Electrical Distribution ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number BQ1B050 Color Black Connection Bolt-on Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 3 in L x 1 in W x 4 in H Enclosure N/A Environmental Conditions N/A EU RoHS Indicator C Frame N/A Frequency Rating 50/60 Hz Gross Volume Per Pack 27.68 Gross Volume UOM in Gross Weight Per Pack 0.4850 lb Gross Weight per Pack Metric 0.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.7380 in Height [Metric] 10.4140 cm Length 2.5720 in Length [Metric] 11.4300 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 1 Operating Temperature N/A Phase 1 pH Returnable Y Standard UL 489 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 Sub Brand N/A Temperature Rating 40 °C Trip Range Thermal Magnetic Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364310238 UPC 12 783643102385 Width 1.0000 in Width [Metric] 3.8100 cm Wire Size 8 to 6 AWG, 8 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 50 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120 VAC Electrical Distribution N/A Lug in/lug out with insta-wire 8 to 6 AWG copper, 8 to 4 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | N/A |
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ1B050 |
| Application | Electrical Distribution |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | BQ1B050 |
| Color | Black |
| Connection | Bolt-on |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 1 in W x 4 in H |
| Enclosure | N/A |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | N/A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 27.68 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.4850 lb |
| Gross Weight per Pack Metric | 0.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.7380 in |
| Height [Metric] | 10.4140 cm |
| Length | 2.5720 in |
| Length [Metric] | 11.4300 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Operating Temperature | N/A |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL 489 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 |
| Sub Brand | N/A |
| Temperature Rating | 40 °C |
| Trip Range | Thermal Magnetic |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364310238 |
| UPC 12 | 783643102385 |
| Width | 1.0000 in |
| Width [Metric] | 3.8100 cm |
| Wire Size | 8 to 6 AWG, 8 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 50 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120 VAC |
| Electrical Distribution |
| N/A |
| Lug in/lug out with insta-wire |
| 8 to 6 AWG copper, 8 to 4 AWG aluminum wire |
