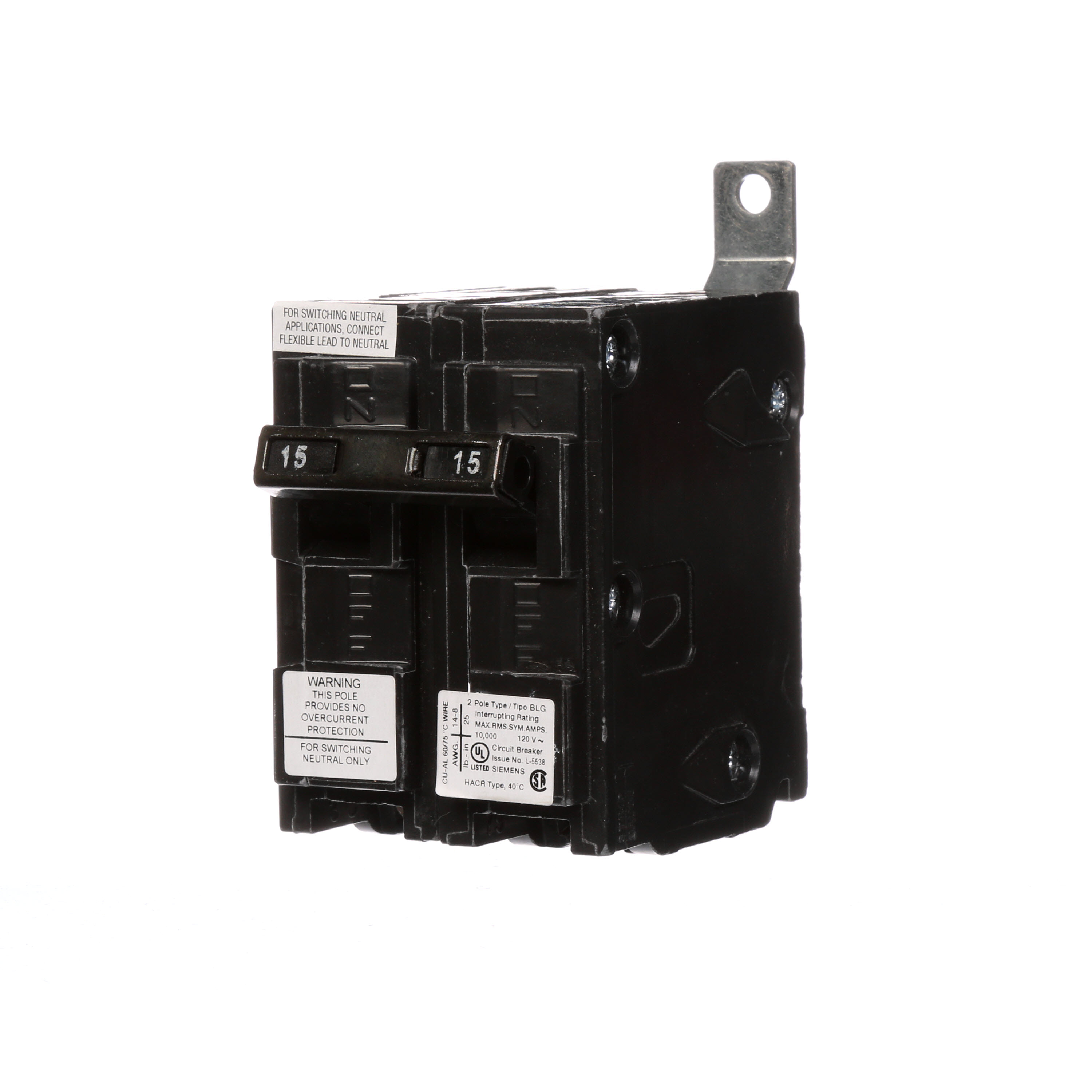

Siemens Speedfax™ BG215 Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ BG215 Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU220920
MFGR #BG215
Your Cost: $129.49/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Alternate Catalog Number US2:BG215 ARRA Compliant C Buy American Compliant C Catalog Number BG215 Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 6 in L x 4 in W x 4 in H EU RoHS Indicator C Gross Volume Per Pack 91.74 Gross Volume UOM in Gross Weight Per Pack 0.8000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.8000 in Height [Metric] 9.6520 cm Length 4.3500 in Length [Metric] 11.0490 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard UL489 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type BG UNSPSC 39121601 UPC 11 78364327118 UPC 12 783643271180 Width 5.5500 in Width [Metric] 14.0970 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 15 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120 VAC Switching Neutral Breakers used where all conductors are required to be disconnected Neutral pole of the circuit breaker does not connect to load center bus One side is wired to neutral and the other side to the device Switching neutral Special application breakers 2-wire common trip
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:BG215 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BG215 |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 4 in W x 4 in H |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 91.74 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.8000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.8000 in |
| Height [Metric] | 9.6520 cm |
| Length | 4.3500 in |
| Length [Metric] | 11.0490 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL489 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type BG |
| UNSPSC | 39121601 |
| UPC 11 | 78364327118 |
| UPC 12 | 783643271180 |
| Width | 5.5500 in |
| Width [Metric] | 14.0970 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 15 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120 VAC |
| Switching Neutral |
| Breakers used where all conductors are required to be disconnected |
| Neutral pole of the circuit breaker does not connect to load center bus |
| One side is wired to neutral and the other side to the device |
| Switching neutral |
| Special application breakers |
| 2-wire common trip |
