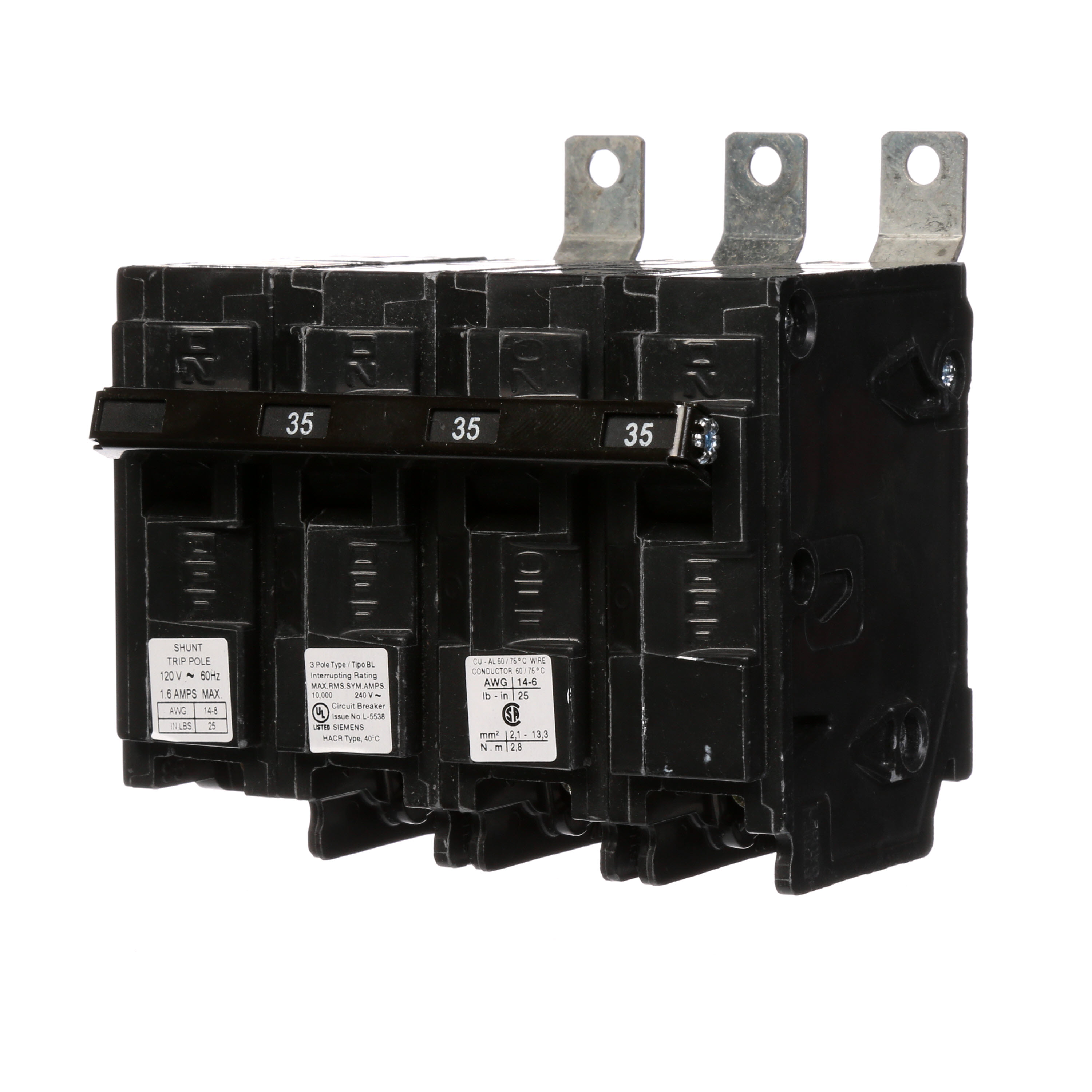

Siemens Speedfax™ B33500S01 Molded Case Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
881120
MFG #: B33500S01
Siemens
147.21000
/ ea
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
- Catalog URL - Siemens_B215HHNAV_Brochuer_1.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:B33500S01&language=en(Spec Sheet URL)
- Spec Sheet URL - sf-11-sect-07-029-036.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Wiring Diagram URL - SIE_WD_QP-BQ-BL_111128AR10.pdf(Wiring Diagram URL)
- Features
| Shunt Trip 120V |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire |
| 120 VAC shunt trip |
