Siemens

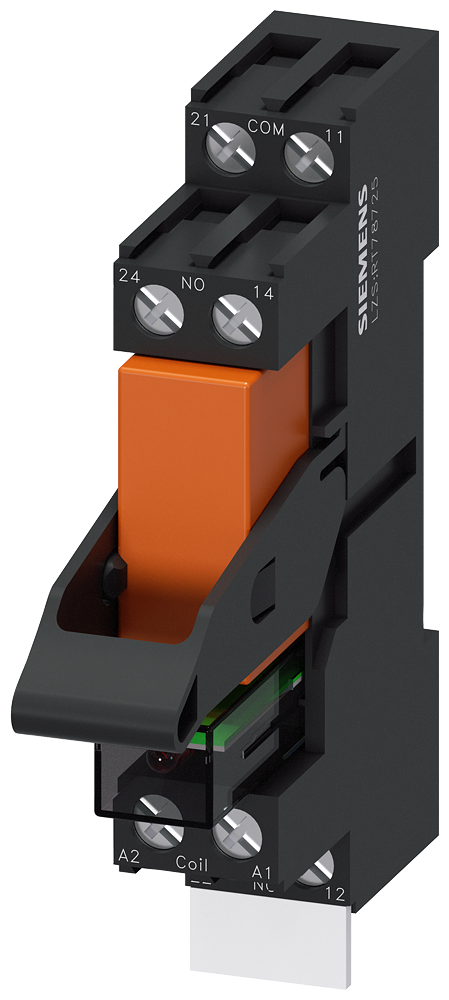

Siemens LZS:RT4A4L24 General Purpose Relay, 2CO Contact Form, 24 VDC Coil
Custom_Product_Images_Illustration
Siemens
Siemens LZS:RT4A4L24 General Purpose Relay, 2CO Contact Form, 24 VDC Coil
SKU508401
MFGR #LZS:RT4A4L24
Your Cost: $25.89/ea
List: SIEMENS LZS:RT4A4L24 PLUG-IN RELAY COMPACT UNIT
SIEMENS LZS:RT4A4L24 PLUG-IN RELAY COMPACT UNIT
Alternate Catalog Number LZS:RT4A4L24 Amperage Rating 8 ARRA Compliant C Base Type Plug-In Brand Siemens Buy American Compliant C Catalog Number LZS:RT4A4L24 Coil Voltage 24 VDC Contact Form 2CO Contact Rating 2.5 A at 230 VAC Country of Origin DE Currency USD Dimensions 71 mm H x 15.5 mm W x 78 mm D Display Type Red LED Enclosure Type IP50 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 242.46 Gross Volume UOM in Gross Weight Per Pack 0.1200 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490080 Height 4.1000 in Height [Metric] 10.4140 cm Length 4.5000 in Length [Metric] 11.4300 cm Manufacturer Siemens Mounting Type Plug-In Number Of Poles 2 Power Rating 2 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, CE Certified, EAC Standard Stock Status NONSTOCK Temperature Rating -40 to 70 °C Terminal Type Screw Type Compact Standard UNSPSC 39122326 UPC 11 75455494872 UPC 12 754554948720 Width 4.7500 in Width [Metric] 12.0650 cm Contact LED module red socket 2.5 A at 230 VAC AC-15 The terminals for the contacts and the terminals for the coil are arranged on separate levels For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1 3 A at 250 VAC AC-15, 2 A at VDC DC-13 contact rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LZS:RT4A4L24 |
| Amperage Rating | 8 |
| ARRA Compliant | C |
| Base Type | Plug-In |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | LZS:RT4A4L24 |
| Coil Voltage | 24 VDC |
| Contact Form | 2CO |
| Contact Rating | 2.5 A at 230 VAC |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 71 mm H x 15.5 mm W x 78 mm D |
| Display Type | Red LED |
| Enclosure Type | IP50 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 242.46 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.1200 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490080 |
| Height | 4.1000 in |
| Height [Metric] | 10.4140 cm |
| Length | 4.5000 in |
| Length [Metric] | 11.4300 cm |
| Manufacturer | Siemens |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Power Rating | 2 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, CE Certified, EAC Standard |
| Stock Status | NONSTOCK |
| Temperature Rating | -40 to 70 °C |
| Terminal Type | Screw |
| Type | Compact Standard |
| UNSPSC | 39122326 |
| UPC 11 | 75455494872 |
| UPC 12 | 754554948720 |
| Width | 4.7500 in |
| Width [Metric] | 12.0650 cm |
| Contact LED module red socket |
| 2.5 A at 230 VAC AC-15 |
| The terminals for the contacts and the terminals for the coil are arranged on separate levels |
| For protective separation, transfer of the voltage of one circuit to another circuit is prevented to a suitable degree of safety requirements and tests are described in IEC 60947-1 |
| 3 A at 250 VAC AC-15, 2 A at VDC DC-13 contact rating |
