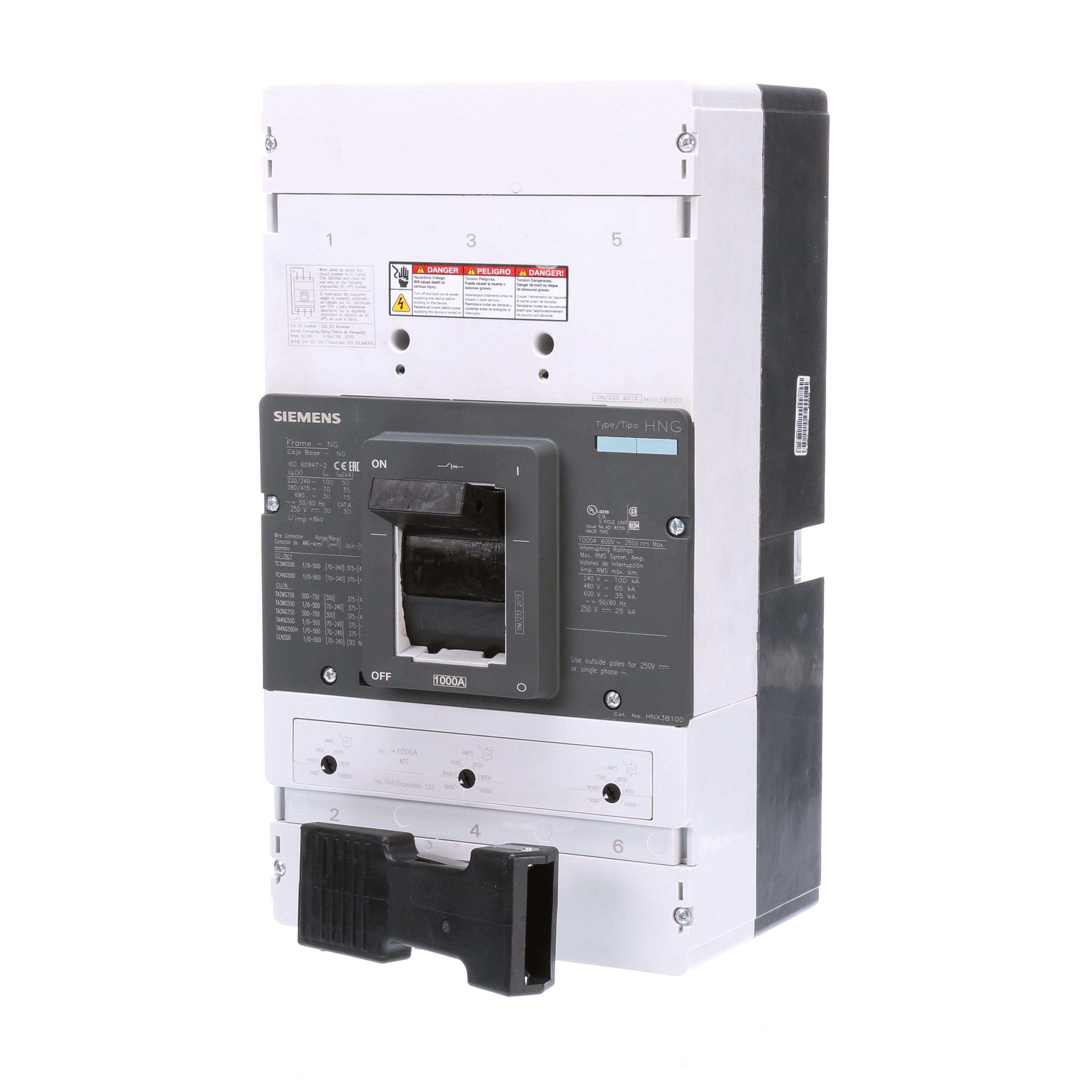

Siemens HNX3B100 Speedfax™ VL Series Molded Case Circuit Breaker, 480 VAC, 1000 A, 65 kA Interrupt, 3 Poles
Molded Case Circuit Breakers
1018005
MFG #: HNX3B100
Siemens
26877.52000
/ ea
Siemens VL Molded Case Circuit Breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL Circuit Breakers feature N-Class (35 kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL Trip Units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
- http://www.sea.siemens.com(WEB SELLER HOME PAGE URL)
- User Manual URL - SIE_IS_NG-PG_TMTUonly.pdf(User Manual URL)
- Video - https://youtube.com/embed/2_csXnI1Wo8(Video)
- WEB CATALOG URL - Siemens_HDC3B050_Catalog.pdf(WEB CATALOG URL)
- WEB SPEC SHEET 1 URL - ID-SPE-v1-SIE_IS_NG-PG_FullyFactAssemb.pdf(WEB SPEC SHEET 1 URL)
- WEB SPEC SHEET URL - SIE_IS_NG-PG_FullyFactAssemb.pdf(WEB SPEC SHEET URL)
- Applications
GLOBAL NON-INTERCHANGEABLE |
