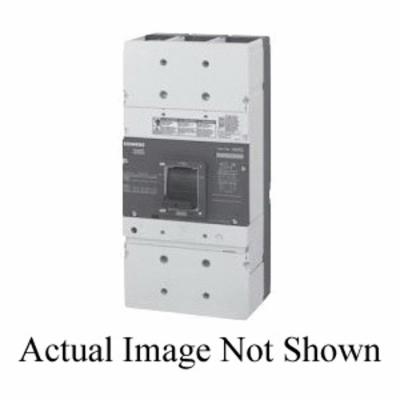

Siemens HMG3B600L VL Series Low Voltage Molded Case Circuit Breaker, 600 VAC, 600 A, 65 kA Interrupt, 3 Poles

Molded Case Circuit Breakers
652614 MFG #: HMG3B600L
Siemens
14935.60000 / ea
Siemens VL molded case circuit breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL circuit breakers feature N-Class (35kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL trip units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
QTY
  • Applications
  • Features
GLOBAL INTERCHANGEABLE
The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory
Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs
VL breaker are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breaker are HACR rated
Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units
A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs
VL breaker are 100% rated
High reliability most VL components are tested to twice the endurance specified by UL
HMG frame with high breaking capacity
Without auxiliary release and alarm switch
