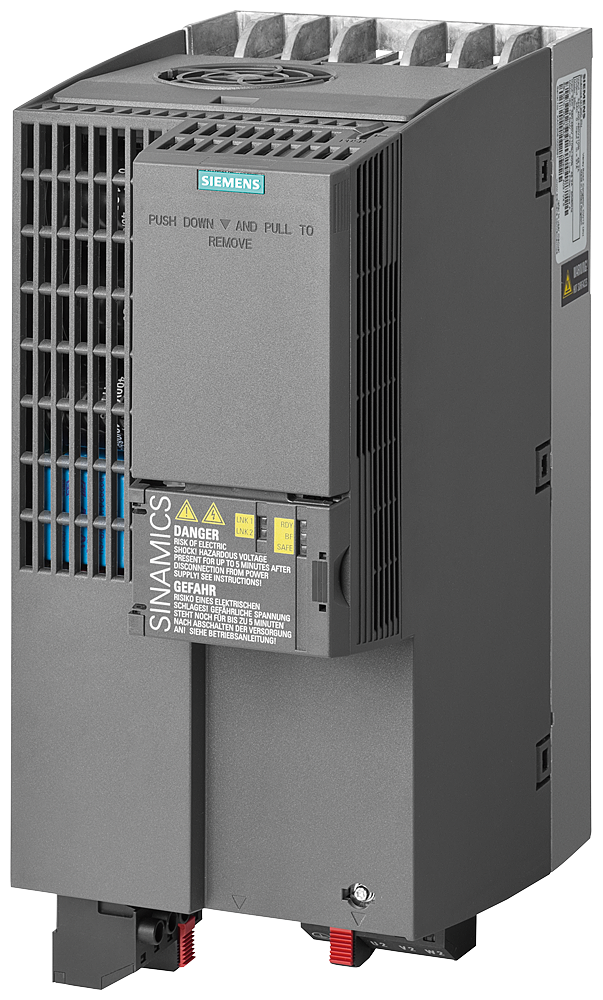

Siemens 6SL32101KE226UF1 SINAMICS G120C
AC Variable Frequency Drives
824211
MFG #: 6SL32101KE226UF1
Siemens
2020.60000
/ ea
SINAMICS G120C RATED POWER 11,0KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS PROFINET-PN PROTECTION IP20/ UL OPEN TYPE SIZE FSC 295X140X203(HXWXD)EXTERNAL 24V
- 3D Rendering URL - getCadDocument?articleNumber=6SL3210-1KE22-6UF1&fileType=3DPDF(3D Rendering URL)
- Catalog URL - Siemens_6SL32101KE118AP1_Catalog.pdf(Catalog URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6SL3210-1KE22-6UF1&language=en(Spec Sheet URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6SL3210-1KE22-6UF1&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6SL32101KE226UF1&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control |
| Due to the certified safe torque off safety function, which is integrated as standard, additional external components can be omitted |
| All standard bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported |
| Intuitive series commissioning, cloning function using a SINAMICS G120 smart access Module, BOP-2, IOP-2 or SD card |
| Simple and fast software parameter assignment |
| Full integration of the drives into the TIA portal system diagnostics and the use of the TIA portal library concept guarantee simple reusability of the converters, including their parameters and hardware components |
| Integrated input reactor and EMC filter |
| All frame sizes in side-by-side design without power reduction or current derating |
| Without filter |
| 33 A rated current (LO) input, 24.1 A rated current (HO) input, 25 A rated current (LO) output, 16.5 A rated current (HO) output, 26 A current rated (IN) output, 33 A max output current |
| 15 hp rated power NEC at 480 V (LO) output, 10 hp rated power NEC at 480 V (HO) output |
