Siemens 6EP13363BA00 6EP Fixed Power Supply, 85 to 132/170 to 264 VAC Input, 24 VDC Output, 480 W, 20 A, DIN Rail Mount
DC Power Supplies
62046
MFG #: 6EP13363BA00
Siemens
690.00000
/ ea

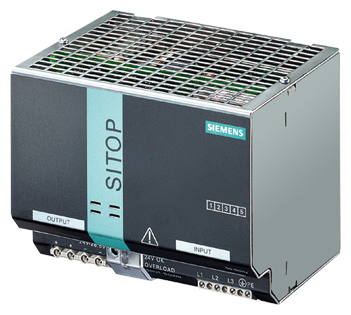

SIEMENS 6EP1336-3BA00 SITOP PS AC 120/230V D
- 3D Rendering URL - G_KT01_XX_00580V.pdf(3D Rendering URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP13363BA00&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP1336-3BA00&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6EP1336-3BA00&language=en(Spec Sheet URL)
- Tech Drawing URL - 10991_4IBXYKR7MSVHQ09N.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-SPE-v1-2D_G_KT01_XX_00578V.pdf(Tech Drawing URL)
- User Manual URL - man(User Manual URL)
- Video - https://docs.steinerelectric.com/IDW_DOCUMENT_1539704920655.jpeg(Video)
- Features
| Features: Voltage range set by means of wire jumper on the device; starting from Vin greater than 93/183 V, Switch-on current limiting, 60 AMP at 25 ° C, maximum, Built-in incoming fuse, Protection in the mains power input (IEC 898) recommended miniature circuit breaker at 1-phase operation: 10 AMP, characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2411-1JA10 (120 V) or 3RV2411-1FA10 (230 V), 3 PCT total tolerance, static +/-, 0.1 PCT static mains compensation, approximately, 0.1 PCT static load balancing, approximately, Output voltage setting via potentiometer, 0.1 S startup delay, maximum, 50 MS voltage rise, typical, Current range 0 - 20 AMP, 2 parallel switchable units for enhanced performance, 2 MS load step setting time 50 - 100 PCT, 100 - 50 PCT, typical, 5 MS setting time, maximum, Output overvoltage protection: less than 35 V, 23 AMP current limitation, Characteristic feature of the output or short-circuit protected, Short-circuit protection: alternatively, constant current characteristic approximately 23 AMP or latching shutdown, 23 AMP enduring short circuit current, effective level, LED yellow for overload", LED red for "latching shutdown", Primary/secondary isolation, 3.5 MILAMP maximum, 0.4 MILAMP typical, stray current, EN 55022 Class B emitted interference, EN 61000-3-2 supply harmonics limitation, EN 61000-6-2 noise immunity, Housing for side-by-side mounting, Electrical accessories: buffer module, signaling module; Operating Temperature: 0 - 70 ° C; Weight: 2.2 KG; Power Loss: 59 WTT, at Vout rated, Iout rated, approximately; Overvoltage Resistance: 2.3 ? Vin rated, 1.3 MS; Input Voltage: 120/230 VAC, 85 - 132 VAC/176 - 264 VAC; Connection: Screw-Type Terminals, Supply Input : L, N, PE: 1 screw terminal each for 0.2 - 4 SQ-MM single-core/finely stranded, Output : L+, M: 2 screw terminals each for 0.5 - 4 SQ-MM; Installation Width: 160 MM; Display: Green LED for 24 V OK; Output Voltage: 24 VDC, Controlled, Isolated, 24 - 28.8 VDC Adjustable Range, 100 MV (Residual Ripple Peak-Peak, Maximum), 30 MV (Residual Ripple Peak-Peak, Typical); Installation: Snaps onto DIN rail EN 60715 35x7.5/15" |
| Single phase |
| Screw terminals |
| 0 to 70 deg C operating temperature |
| -40 to 85 deg C storage temperature |
| IP20 degree of protection |
| Class I protection |
| Short-circuit protection |
| 89 % efficiency |
