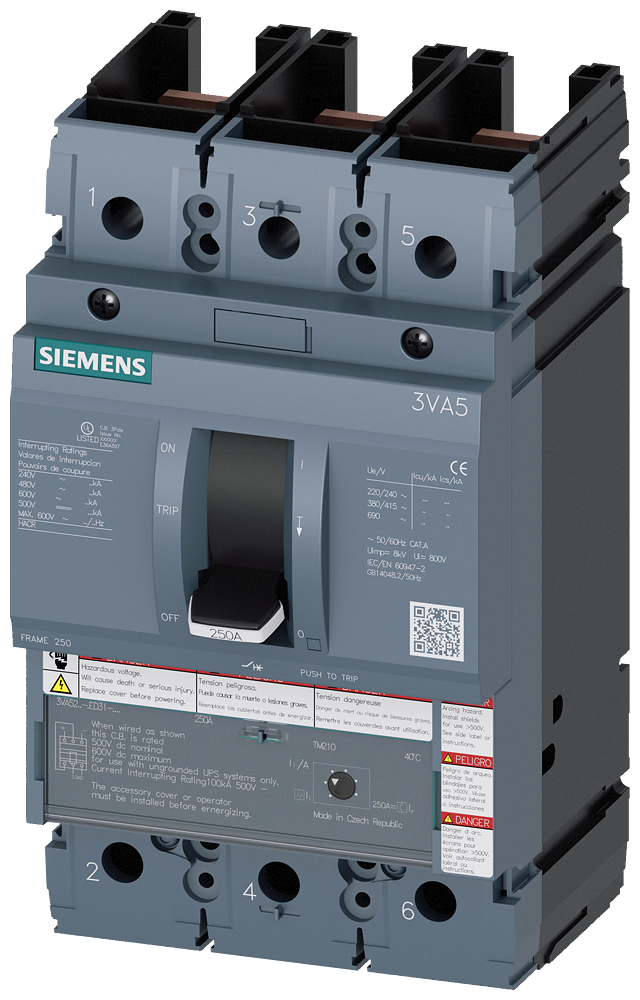

Siemens 3VA5225-6ED31-0AA0 Siemens 3VA5 Molded Case Circuit Breaker, 690 VAC/750 VDC, 250 A, 64 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Molded Case Circuit Breakers
1038287
MFG #: 3VA5225-6ED31-0AA0
Siemens
2414.50000
/ ea
Siemens Molded Case Circuit Breaker, Series: 3VA5, 690 VAC/750 VDC, 250 A, 50/60 Hz, 64 kA Interrupt, Thermal Magnetic Trip, 3 Poles, IP40, Fixed Mount, -25 to 70 deg C, 7.28 in H x 4.13 in W x 4.21 in D
- 3D Rendering URL - G_I202_XX_36861V.pdf(3D Rendering URL)
- Brochure URL - Product-Datasheets_en3VA52256ED310AA0_en.pdf(Brochure URL)
- Owners Manual URL - SIE_OM_3VA_L1V30575082-01.pdf(Owners Manual URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Computer~Aided [CAD|BIM] Model URL - 2D_G_I202_XX_36862V.dxf(Computer~Aided [CAD|BIM] Model URL)
- Catalog URL - Siemens_3VA5110_1BB31_0AA0_Catalog.pdf(Catalog URL)
- Spec Sheet URL - 10991_72MS54ACPHZRF3LT.pdf(Spec Sheet URL)
- Wiring Diagram URL - G_I202_XX_42238V.dxf(Wiring Diagram URL)
- User Manual URL - man(User Manual URL)
- Video - https://www.youtube.com/embed/2BlqUSedOt8(Video)
- Video - https://www.youtube.com/embed/J_LVTjU58ek(Video)
- Features
| The new 3VA5 molded case circuit breakers reliably perform all the tasks required for circuit protection |
| Compact design |
| Modular and easy to fit internal accessories with diverse functions |
| When it comes to operation, functionality and installation, the new 3VA UL series of molded case circuit breakers is a fully integrated system |
| Without connection |
