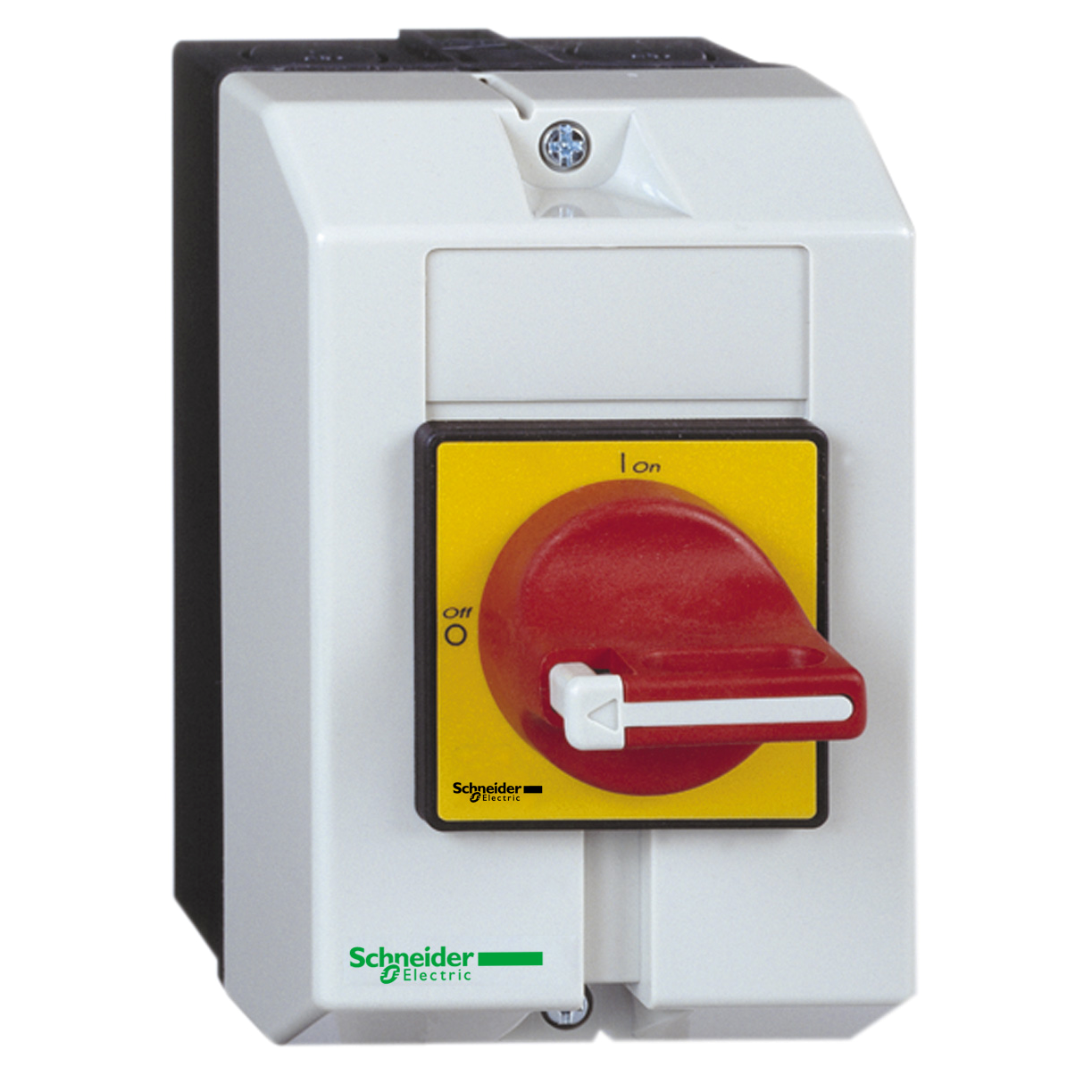

Schneider Electric TeSys™ Vario™ VCF VCF0GE Enclosed Emergency Switch Disconnector, 690 VAC, 14.5 A, 3 Poles
Enclosed Rotary Disconnects
1207562
MFG #: VCF0GE
Square D™
277.61000
/ ea
Schneider Electric TeSys™ Vario™ VCF Emergency Switch Disconnector, Enclosed, 690 VAC, 14.5 A, 3 Pole, Red Rotary Handle Actuator, IP65 Enclosure, Screw Clamp Terminal, -20 to 50 deg C, 90 mm W x 131 mm D x 146 mm H Dimensions, Yellow
- Brochure URL - 1e9fec7908b6a9b95fad9bd858baf64d80d88d9f.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=BBV28752-08.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_G0PN3RUHDVX45YLO.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_LFU7MPQZ2TE83YCB.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_V8DUAOTCSJ0FL2GY.dwg(Tech Drawing URL)
- Applications
- Features
| For high performance applications |
| 1 TO 3 PADLOCKS 4-8 MM,HIGH PERFORMANCE |
| Padlockable operating handle |
| IP65 degree of protection enclosures, sealable and lockable |
| Cover lockable in position "I" (ON) up to 63 A rating |
| Ground plate for shielded cable continuity (11 to 14 mm Dia) on enclosed switch-disconnectors "GP" version |
