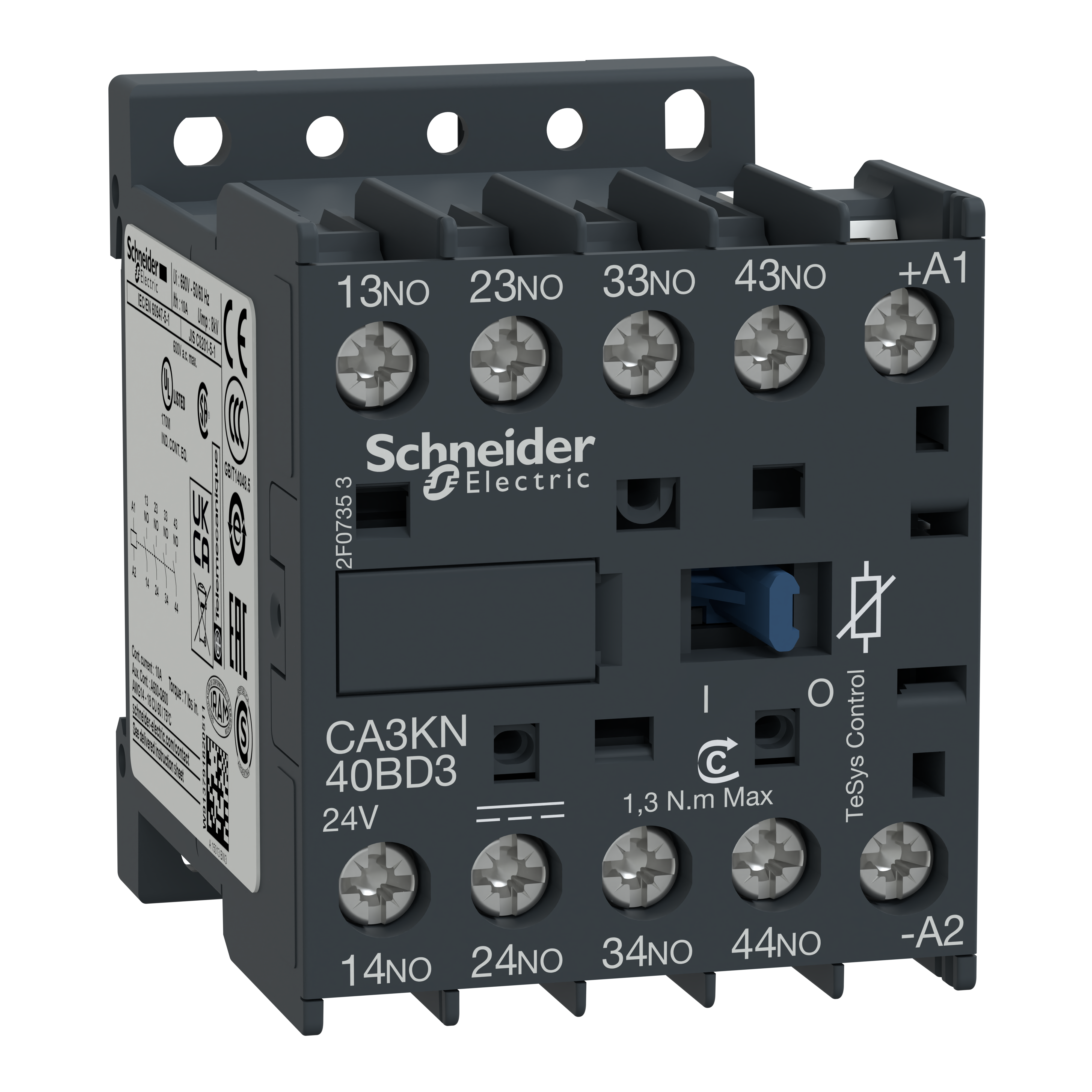

Schneider Electric TeSys™ K Series Control Relay, 10 A, 4NO Contact Form, 24 VDC Coil
Contactors
279844
MFG #: CA3KN40BD3
Schneider Electric
80.11000
/ ea
Schneider Electric CA3KN40BD3 CONTROL RELAY 600VAC 10AMP IEC +OPTIONS,-25...50 deg.C,10 A at <= 50 deg.C,24VDC,4 NO,IP2x,Screw Clamp,TeSys,UL Listed File Number 164353 CCN NKCR - CSA Certified File Number LR43364 Class 3211 03 - CE Marked,control circuit,control relay,rail-plate
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8143840360Den&ext=webp(360 Degree View URL)
- Brochure URL - 115967977b38aa63fd29e8e8024eb8003e40dffe.pdf(Brochure URL)
- Catalog URL - SquareD_CAD32U7_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_9XYK0Z78CLJBHPUW.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_3V7HC94PLOQNRATG.pdf(Service Manual URL)
- Service Manual URL - 11003_ZS45DFC0LRUIV97B.pdf(Service Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_2PO69SFR7ULQHN8Y.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/2fJJKGUbG-s(Video)
- Applications
- Features
| Control circuit |
| 690 VAC conforming to CSA C22.2 No 14, 690 VAC conforming to BS 5424, 690 VAC conforming to IEC 60947, 750 VAC conforming to VDE 0110 group C rated insulation voltage |
| 10 ms coil de-energization and NO opening, 30 to 40 ms coil energization and NO closing operating time |
| 10000 cycles/hr operating rate |
| 17 VAC minimum switching voltage |
| 5 mA minimum switching current |
| -58 to 176 deg F storage temperature |
| 690 VAC system voltage |
| -58 to 176 deg F storage temperature |
| 690 VAC system voltage |
