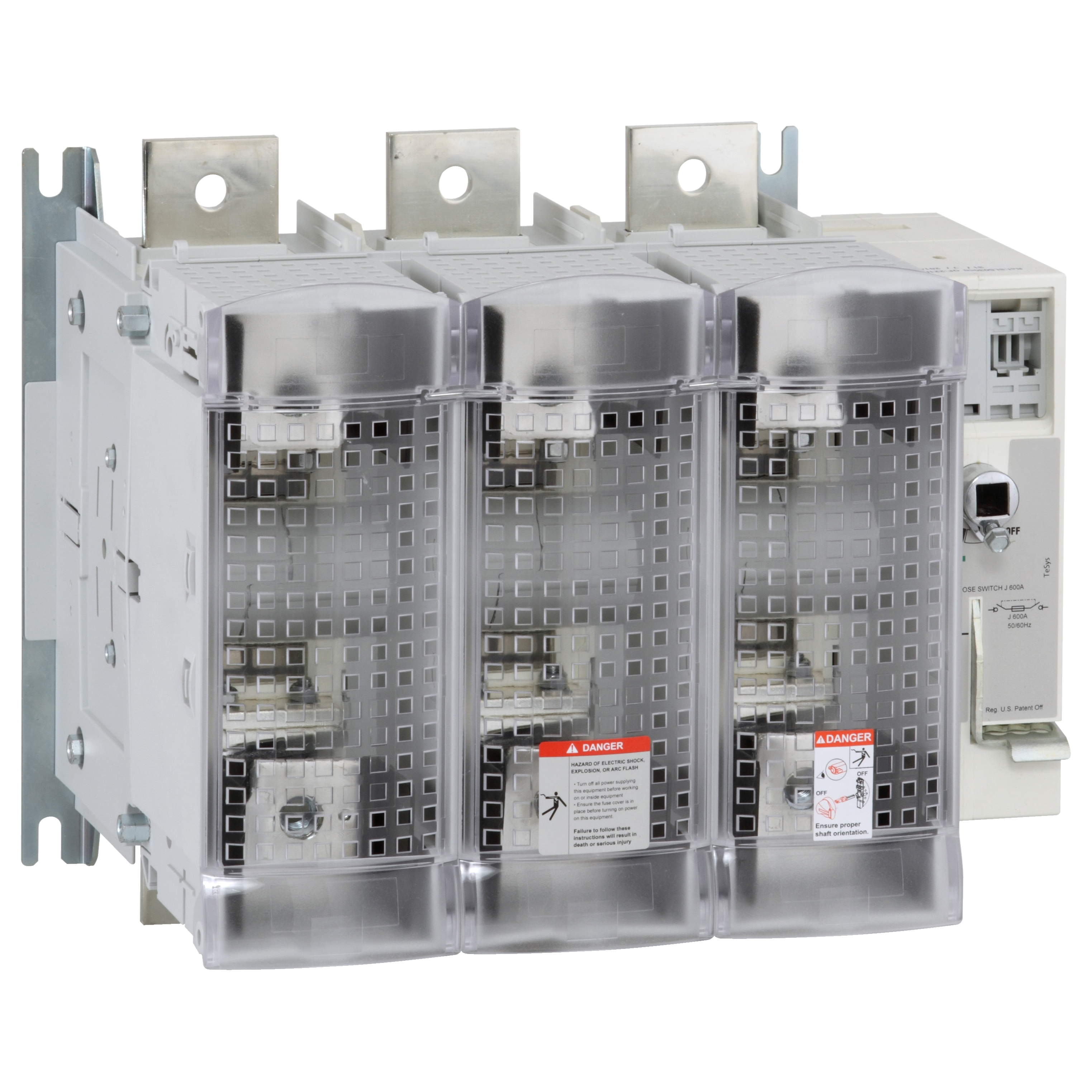

Schneider Electric TeSys™ GS2TU3 GS Series AC/DC Fusible IEC Style Disconnect Switch, 400/690 VAC, 800 A, 200 hp, 500 hp, 3NO Contact, 3 Poles
Enclosed Rotary Disconnects
1172818
MFG #: GS2TU3
Square D™
5561.04000
/ ea
Schneider Electric TeSys™ Disconnect Switch, AC/DC Fusible IEC Style, Series: GS Series, 400/690 VAC, 800 A, 200 hp, 500 hp, 3, 50/60 Hz, 3 Pole, 2 Wires, 200 kA Short Circuit Current, 3NO, IP20, Surface Mount, Lug Terminal, -20 to 70 deg C, 11.81 in H x 14.33 in W x 9.84 in D
- Brochure URL - 9dd046e396da65f8053a8247c252146e3fc8ede5.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_PDOIJXTKYG4W23Z7.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_AJB2LXPYMU83CHE4.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Features
| Fuse protection is a reliable and effective solution to protect your low voltage equipment against short circuits that can cause considerable damage to installations |
| For class CC, J and L UL type fuses 3-pole |
| For external front mounted and right hand side mounted operators |
| Padlockable using upto 3-padlocks, lockable, with door interlock, black/grey or yellow/red, NEMA 1/3R/12/4/4X |
| Two early break and "O" and "I" position signaling auxiliary contacts, configurable and common throughout the range |
| The GS series with the use of class CC or J fuses provides exceptional high short circuit protection, upto 200 kA |
| 200 hp at 240 VAC, 500 hp at 480/600 VAC |
