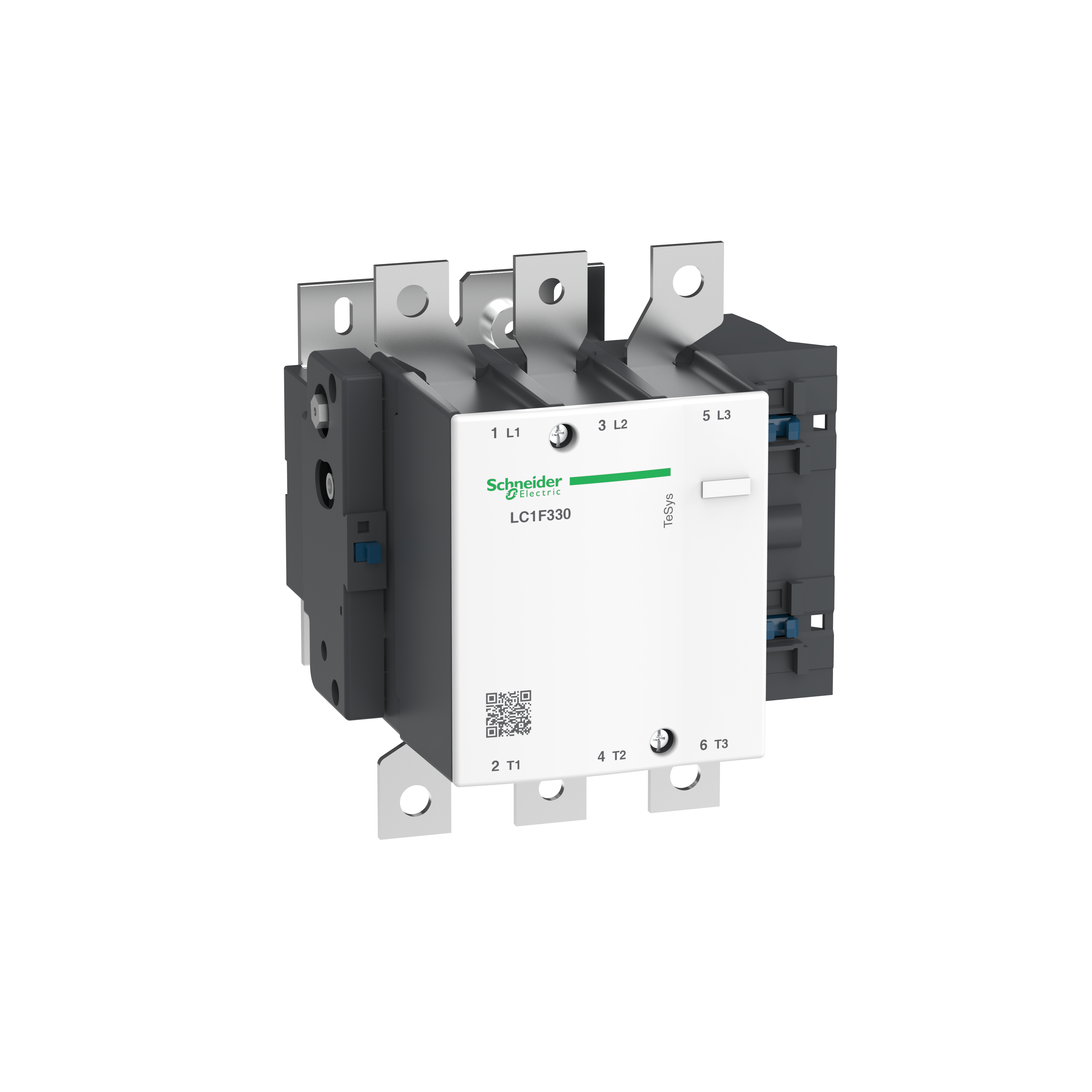

Schneider Electric TeSys™ F LC1F IEC Contactor With Coil, 120 VAC Coil, 330 A Max Load, 3NO, 3 Poles
NEMA & IEC Contactors
96393
MFG #: LC1F330G7
Schneider Electric
2072.08000
/ ea
Schneider Electric LC1F330G7 CONTACTOR 600VAC 330AMP IEC +OPTIONS,-5C to 55C,120VAC40/400Hz,16.66-200Hz,3,3-Pole,330A inductive, 400A resistive,Bolt on or Lugs (sold separately),Contactor with 120VAC 50/60Hz rated coil with built in surge suppressor,IEC Contactor and starter applications. Both Inductive and resistive current values,Non-Reversing Contactor,Panel Mount,TeSys,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,Up to 600VAC (UL), 330A inductive, 400A Resistive
- Brochure URL - 11003_9RL8I0KSOXCDUYQ6.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_LC1F500_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPD0004419.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WPRQF1HY3JVAKSU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_3B8D4APYGK25W16M.pdf(Service Manual URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1F330G7_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_VWQF1PA9ZB23RI50.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_X4K5G0FA6LND8UJ1.zip(Tech Drawing URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Applications
- Features
| Resistive load;motor control |
| CONTACTOR WITH 120VAC 50/60HZ RATED COIL WITH BUILT IN SURGE SUPPRESSOR |
| 8 kV rated impulse withstand voltage |
| III overvoltage category |
| 400 A at <=104 deg F (40 deg C) conventional free air thermal current |
| 2640 A conforming to IEC 60947-4-1 rated breaking capacity |
| 400 A aM at <=440 V/500 A gG at <=440 V associated fuse rating |
| 0.28 mOhm at 50 Hz to Ith 400 A average impedance |
| 1000 V conforming to IEC 60947-4-1/1500 V conforming to VDE 0110 group C rated insulation voltage |
| 35 Nm control circuit/1.2 Nm tightening torque power circuit |
| 100 to 170 ms closing/40 to 65 ms opening operating time |
| 2400 cycles/hr at <=131 deg F (55 deg C) operating rate |
| 650 VA at 68 deg F (20 deg C) 40 to 400 Hz inrush power |
| 10 VA at 68 deg F (20 deg C) 40 to 400 Hz hold-in power consumption |
| 8 W heat dissipation |
| TH protective treatment |
| -40 to 158 deg F permissible ambient air temperature around the device |
| 9842.52 ft without derating in temperature operating altitude |
| Vibrations contactor closed 6 gn, 5 to 300 Hz/shocks contactor open 9 gn for 11 ms/vibrations contactor open 2 gn, 5 to 300 Hz/shocks contactor closed 15 gn for 11 ms mechanical robustness |
| 160 kW at 380 to 400 VAC 50/60 Hz AC-3, 200 kW at 500 VAC 50/60 Hz AC-3, 180 kW at 415 VAC 50/60 Hz AC-3, 200 kW at 440 VAC 50/60 Hz AC-3 motor power |
| 220 kW at 660 to 690 VAC 50/60 Hz AC-3, 160 kW at 1000 VAC 50/60 Hz AC-3, 100 kW at 220 to 230 VAC 50/60 Hz AC-3, 59 kW at 400 VAC 50/60 Hz AC-4 motor power |
| 44 W (AC-1), 31 W (AC-3) power dissipation per pole |
