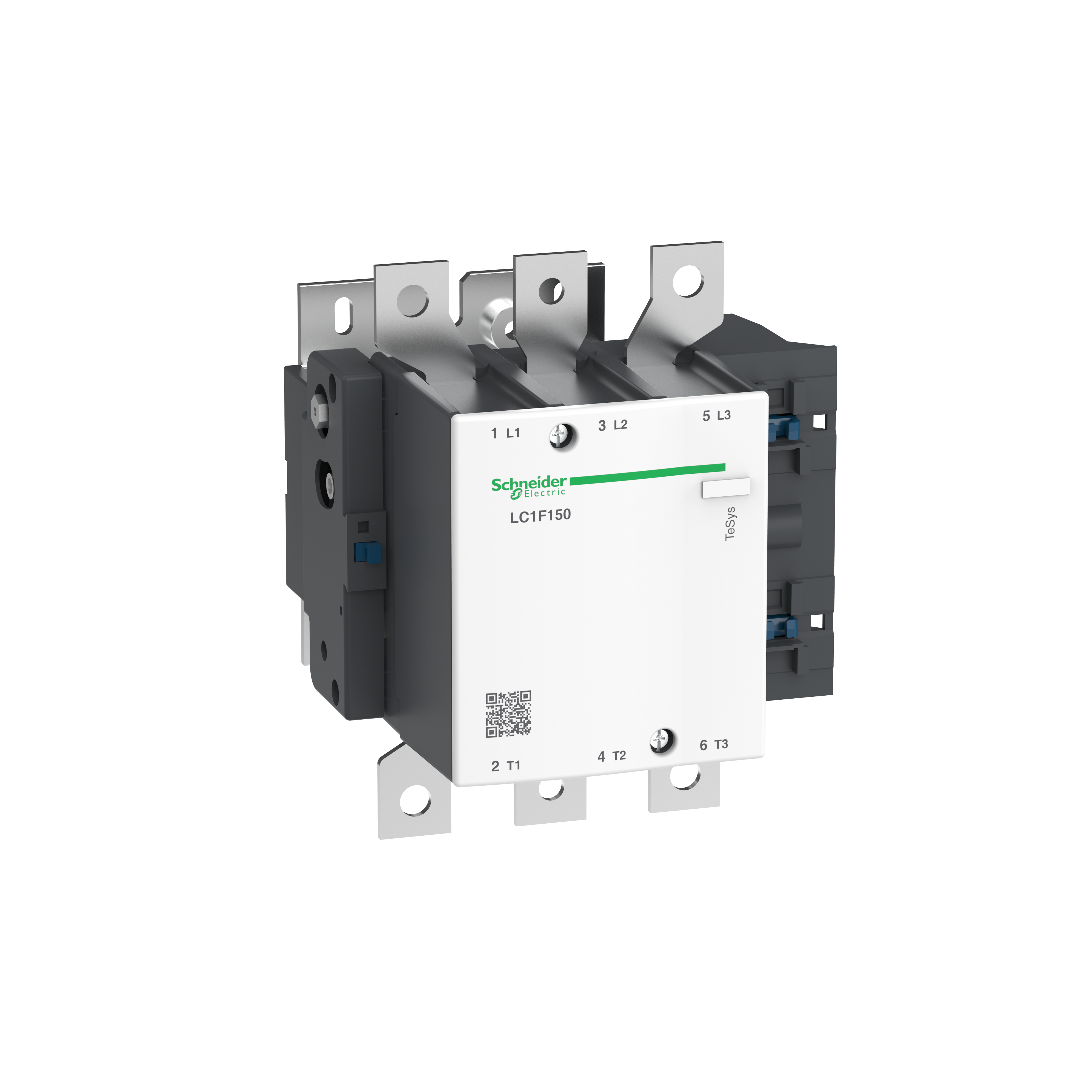

Schneider Electric TeSys™ F LC1F IEC Contactor LC1F150, 600 VAC Coil, 250 A Max Load, 3NO, 3 Poles
NEMA & IEC Contactors
32310
MFG #: LC1F150
Schneider Electric
789.98000
/ ea
Schneider Electric LC1F150 CONTACTOR 600VAC 150AMP IEC +OPTIONS,-5C to 55C,150A inductive, 250A resistive,16.66-200Hz,3,3-Pole,Bolt on or Lugs (sold separately),Contactor only (no coil),IEC Contactor and starter applications. Both Inductive and resistive current values,Non-Reversing Contactor,Panel Mount,TeSys,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,Up to 600VAC (UL), 150A inductive, 250A Resistive
- Brochure URL - 11003_KSGYFRZ9O1J6MP3N.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_LC1F500_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WPRQF1HY3JVAKSU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UGSAYIR6HJKZQC5B.pdf(Service Manual URL)
- Spec Sheet 1 URL(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_ZGFS5BHVNYRODCIM.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=LC1F150F.dxf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Applications
- Features
| Resistive load;motor control |
| CONTACTOR ONLY (NO COIL) |
| 8 kV rated impulse withstand voltage |
| III overvoltage category |
| 250 A at <=104 deg F (40 deg C) conventional free air thermal current |
| 1200 A conforming to IEC 60947-4-1 rated breaking capacity |
| 160 A aM at <=440 V/250 A gG at <=440 V associated fuse rating |
| 0.35 mOhm at 50 Hz to Ith 200 A average impedance |
| 1000 V conforming to IEC 60947-4-1/1500 V conforming to VDE 0110 group C rated insulation voltage |
| 88.5 lbf-in tightening torque power circuit |
| 23 to 35 ms closing/5 to 15 ms opening operating time |
| 2400 cycles/hr at <=131 deg F (55 deg C) operating rate |
| 660 VA at 68 deg F (20 deg C) 60 Hz inrush power |
| 55 VA at 68 deg F (20 deg C) 60 Hz hold-in power consumption |
| 12 to 16 W heat dissipation |
| TH protective treatment |
| -40 to 158 deg F permissible ambient air temperature around the device |
| 9842.52 ft without derating in temperature operating altitude |
| Vibrations contactor closed 6 gn, 5 to 300 Hz/shocks contactor open 9 gn for 11 ms/vibrations contactor open 2 gn, 5 to 300 Hz/shocks contactor closed 15 gn for 11 ms mechanical robustness |
| 65 kW at 1000 VAC 50/60 Hz AC-3, 40 kW at 220 to 230 VAC 50/60 Hz AC-3, 75 kW at 380 to 400 VAC 50/60 Hz AC-3, 90 kW at 500 VAC 50/60 Hz AC-3 motor power |
| 22 kW at 400 VAC 50/60 Hz AC-4, 80 kW at 415 VAC 50/60 Hz AC-3, 80 kW at 440 VAC 50/60 Hz AC-3, 100 kW at 660 to 690 VAC 50/60 Hz AC-3 motor power |
| 22 W (AC-1), 8 W (AC-3) power dissipation per pole |
