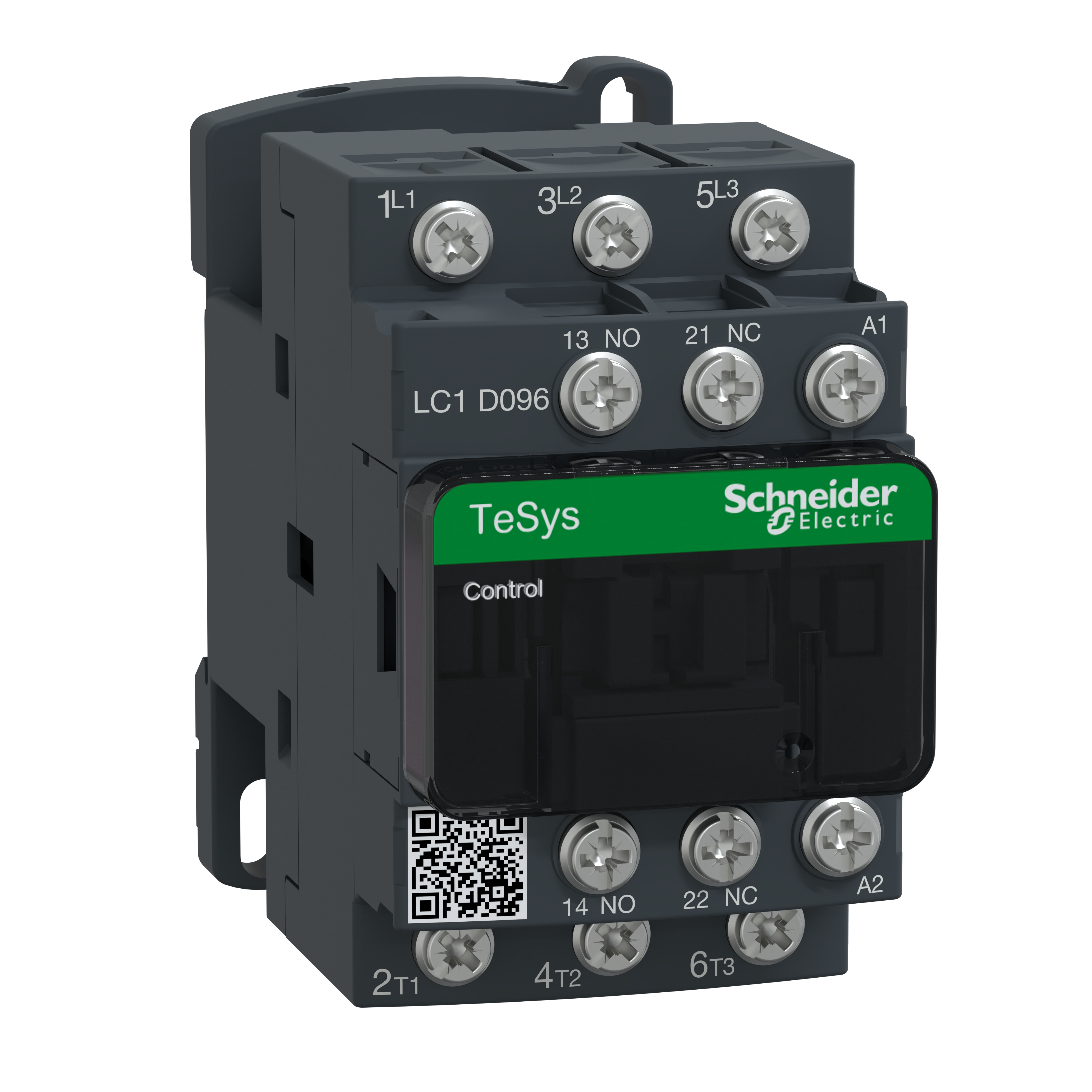

Schneider Electric TeSys™ D LC1D IEC Contactor With Protective Cover, 120 VAC Coil, 9 A Max Load, 3NO, 3 Poles
Contactors
407861
MFG #: LC1D096G7
Schneider Electric
117.97000
/ ea
Schneider Electric LC1D096G7 CONTACTOR 600VAC 9AMP IEC +OPTIONS,120 V AC 50/60 Hz,25 A at <= 60 deg.C for power circuit-10 A at <= 60 deg.C for signalling circuit,3 NO,3P,LC1D,contactor,LC1D,motor control-resistive load,Ring Tongue,TeSys,TeSys D,UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant,rail-plate
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8115807360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=998-20803955_GMA-US.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D066F7_2D-top.dxf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D066F7_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=LC1D096G7_2D Front View.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_PSZLYO09KDQ18N6R.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Service Manual URL - files?p_enDocType=End of life manual&p_File_Name=EoLI_ENVEOLI1501004_V4.pdf(Service Manual URL)
- Tech Drawing URL - 11003_U6M8DFV10JSPRKEX.pdf(Tech Drawing URL)
- Service Manual URL - 11003_YQ40O6UGP7C8EZ91.pdf(Service Manual URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_X71LGUWR20Q45VTJ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_K5FYENT7GU2XCJB0.pdf(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=LC1D096G7_2D Sales Drawing.pdf(Tech Drawing URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1D096G7_Datasheet.pdf(Spec Sheet 1 URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/COFeQr6wcKc(Video)
- Service Manual URL - 11003_580BRMYI619ZSGLN.pdf(Service Manual URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Applications
- Features
| Resistive load;motor control |
| Without built-in suppressor module |
| 6 kV conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 25 A at <=140 deg F (60 deg C) power circuit/10 A at <=140 deg F (60 deg C) signaling circuit conventional free air thermal current |
| 250 A at 440 V power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5-1/250 A DC signaling circuit conforming to IEC 60947-5-1 irms rated making capacity |
| 250 A at 440 V power circuit conforming to IEC 60947 rated breaking capacity |
| 20 A gG at <=690 V coordination type 2 power circuit/25 A gG at <=690 V coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating |
| 2.5 mOhm at 50 Hz - Ith 25 A power circuit average impedance |
| 12 to 22 ms closing/4 to 19 ms opening operating time |
| 3600 cycles/hr at <=140 deg F (60 deg C) operating rate |
| Without built-in suppressor module coil technology |
| 2 to 3 W heat dissipation |
| 70 VA at 68 deg F (20 deg C) 50/60 Hz inrush power |
| 7.5 VA at 68 deg F (20 deg C) 60 Hz/7 VA at 68 deg F (20 deg C) 50 Hz hold-in power consumption |
| 25 to 400 Hz signaling circuit frequency |
| 5 mA signaling circuit minimum switching current |
| 17 V signaling circuit minimum switching voltage |
| 1.5 ms on energisation between NC and NO contacts/1.5 ms on de-energisation between NC and NO contacts non-overlap time |
| >10 MOhm signaling circuit insulation resistance |
| TH protective treatment |
| 3 pollution deg |
