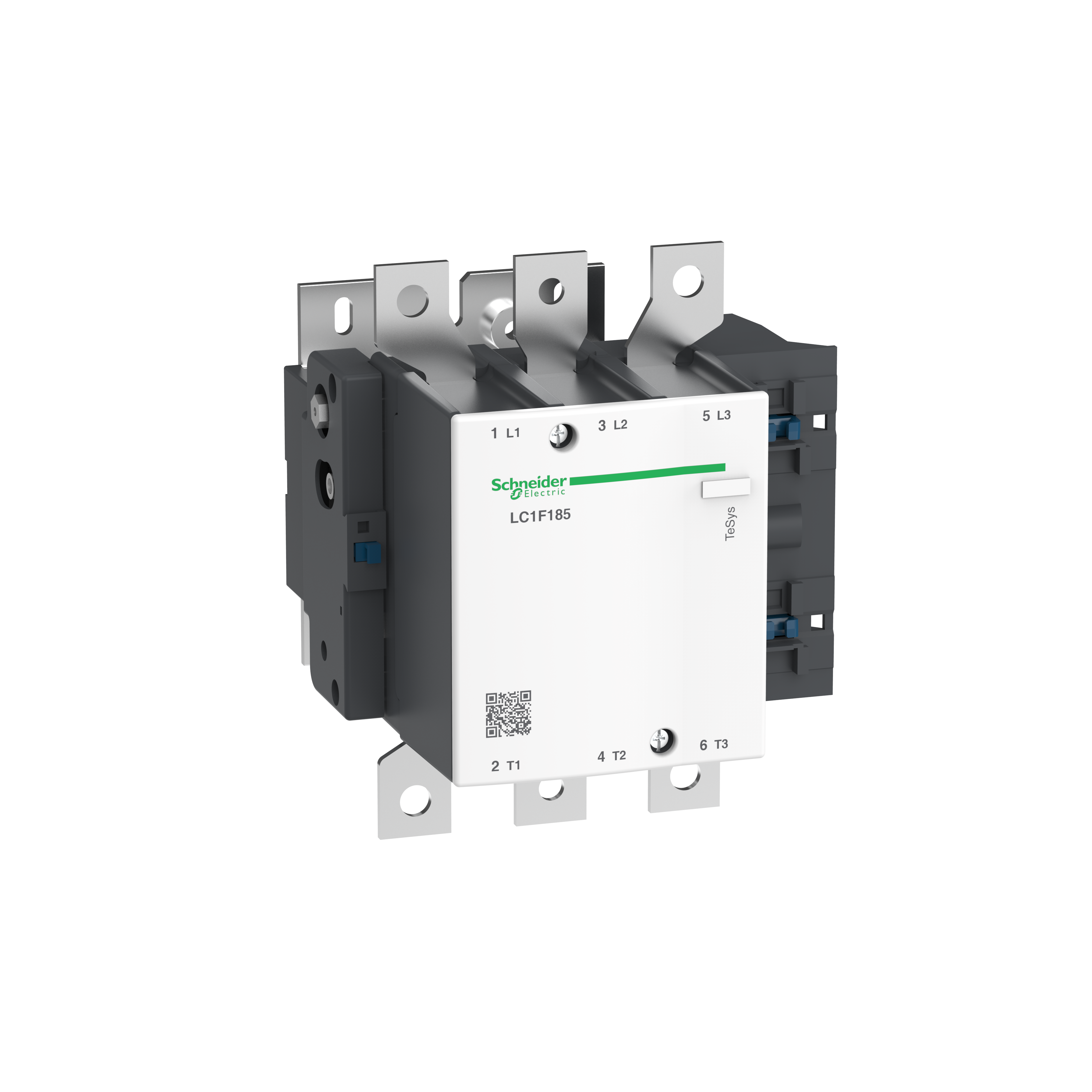

Schneider Electric Square D™ TeSys™ F LC1F185 3-Phase IEC Contactor, 690 VAC V Coil, 185/275 A, 3NO Contact, 3 Poles
NEMA & IEC Contactors
1398969
MFG #: LC1F185
Square D™
1011.37000
/ ea
Schneider Electric Square D™ TeSys™ F IEC Contactor, 3-Phase, 690 VAC Coil, 185/275 A Maximum Load Current, 8.9 to 10.9 VA Coil, 3 Pole, 50/60 Hz Frequency, 12/25 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 185 A/275 A at 600 VAC Contact, Bolt-On/Lug Connection, 168.5/174/181 mm Size, Bolt-On/Lug Terminal, IP20 Enclosure, 10000000 cycles Operating Cycles, -5 to 55 deg C Operating, Panel Mounting, 174 mm W x 181 mm D x 168.5 mm H Dimensions
- Brochure URL - 11003_KSGYFRZ9O1J6MP3N.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPD0004416_2D-front.dxf(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_Z8T9J2MLADVO137S.pdf(Spec Sheet URL)
- Install Instructions 1 URL - 11003_WPRQF1HY3JVAKSU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_L32VKXAS5TUQ8EDN.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=LC1F185F.dxf(Tech Drawing URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Applications
- Features
| For motor control and resistive load, IEC contactor and starter applications, both inductive and resistive current values applications |
| CONTACTOR ONLY (NO COIL) |
| 8 kV rated impulse withstand voltage |
| III overvoltage category |
| 275 A at 104 deg F conventional-free air thermal current |
| 1480 A conforming to IEC 60947-4-1 rated breaking capacity |
| 200 A aM at 440 V/315 A gG at 440 V associated fuse rating |
| 0.33 MOhm at 50 Hz to Ith 200 A average impedance |
| 1000 V conforming to IEC 60947-4-1/1500 V conforming to VDE 0110 group C rated insulation voltage |
| 88.5 in-lb tightening torque power circuit |
| 20 to 35 ms closing, 7 to 15 ms opening operating time |
| 970 VA at 68 deg F 60 Hz inrush power |
| 970 VA at 68 deg F 60 Hz inrush power |
| 66 VA at 68 deg F 60 Hz hold-in power consumption |
| 18 to 24 W heat dissipation |
| TH protective treatment |
| -40 to 158 deg F permissible ambient air temperature around the device |
| 9842.52 ft without derating in temperature operating altitude |
| Vibrations contactor closed 6 gn, 5 to 300 Hz/shocks contactor open 9 gn for 11 ms/vibrations contactor open 2 gn, 5 to 300 Hz/shocks contactor closed 15 gn for 11 ms mechanical robustness |
| 55 kW at 220 to 230 VAC 50/60 Hz AC-3, 90 kW at 380 to 400 VAC 50/60 Hz AC-3, 100 kW at 415 VAC 50/60 Hz AC-3, 100 kW at 440 VAC 50/60 Hz AC-3 motor power dissipation per pole |
| 110 kW at 500 VAC 50/60 Hz AC-3, 110 kW at 660 to 690 VAC 50/60 Hz AC-3, 100 kW at 1000 VAC 50/60 Hz AC-3, 33 kW at 400 VAC 50/60 Hz AC-4 motor power |
| 25 W (AC-1), 12 W (AC-3) power dissipation per pole |
