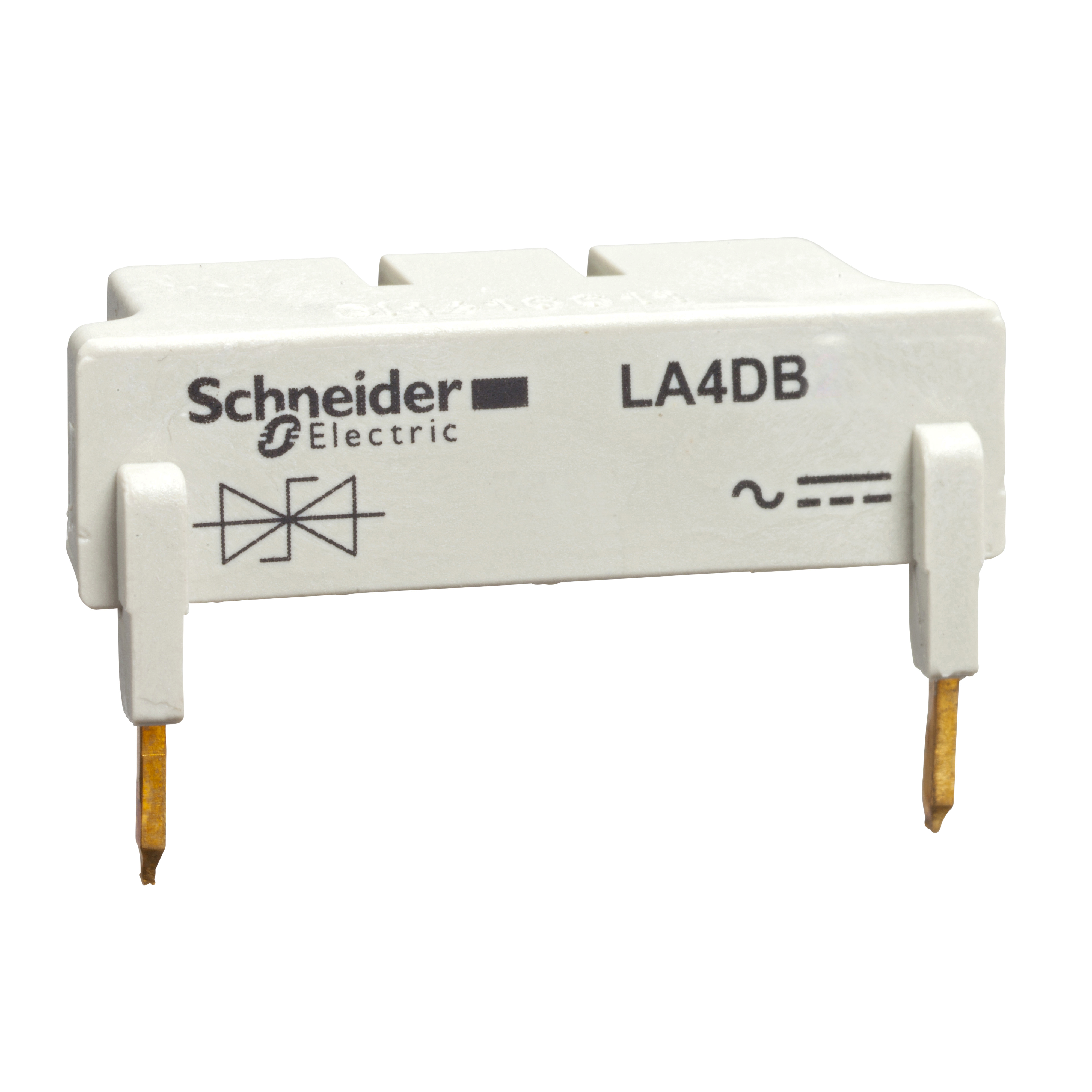

Schneider Electric Square D™ LA4DB3B Bidirectional Peak Limiting Diode Suppressor Module, 3/4 Poles, For Use With TeSys™ D LC1D80 to LC1D95, LC1D40008 to D80008, LC1D80004 Contactor
Contactor Parts & Accessories
1150795
MFG #: LA4DB3B
Square D™
47.42000
/ ea
Schneider Electric Square D™ Suppressor Module, Bidirectional Peak Limiting Diode, Series: LA4D, 3/4 Pole, For Use With: TeSys™ D LC1D80 to LC1D95, LC1D40008 to D80008, LC1D80004 Contactor, Specifications: 24 VDC Coil, 2 Uc Maximum Peak, -13 to 131 deg F Temperature, Screw Mount
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_9SOAIJK3CE8NVRPM.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_3I2SVC1QWDET4FNX.dxf(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_D48FNJ1W6HOSKVZR.dxf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/e8UrRZljFg0(Video)
- Applications
- Features
| 4P LP1D80;3P LC1D80...D95;4P LP1D40...D65 |
| BIDIRECTIONAL PEAK LIMITING DIODE |
| Protection provided by limiting the transient voltage to 2 UC max |
| Maximum reduction of transient voltage peaks |
