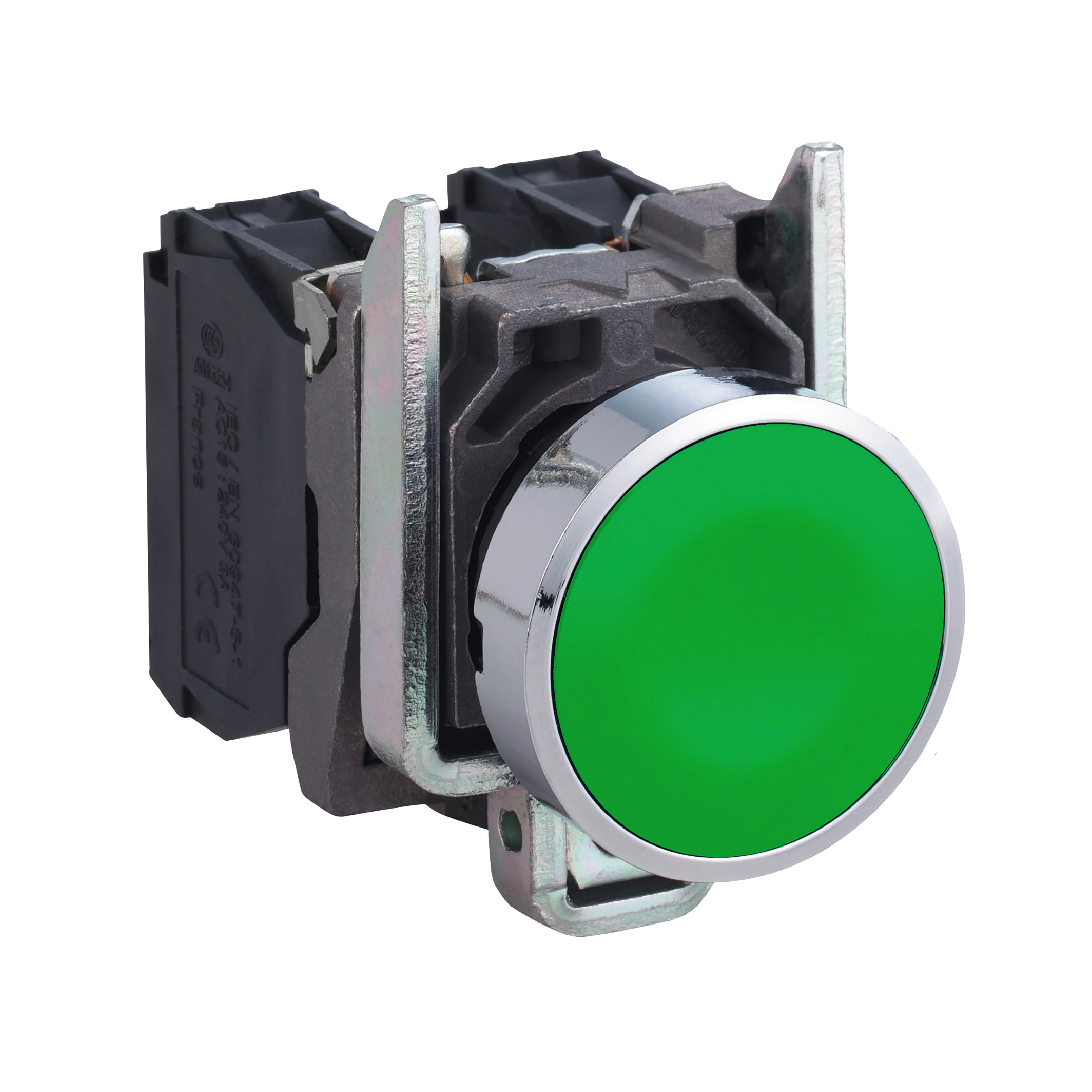

Schneider Electric Square D™ Harmony™ XB4BA35 Complete Non-Illuminated Pushbutton, 2.05 in, 1NO-1NC Contact, Slow Break Contact, Spring Return Operator, Green
Non-Illuminated Pushbuttons
335425
MFG #: XB4BA35
Square D™
48.16000
/ ea
Schneider Electric Square D™ Harmony™ Pushbutton, Complete Non-Illuminated, Series: XB4, 2.05 in, 1NO-1NC, Slow Break Contact, Momentary Contact Mode, 10 A at 600 VAC Contact, Spring Return Operator, Bezel/Housing: Chromium Plated Metal, Spring Return, Screw Terminal, NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06, Panel Mount, Chromium Plated, Green, Environmental Conditions: -40 to 70 deg C Operating/Storage Temperature
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9411650360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XB4BA35-3d.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_Q4A6WUJS9PMHVX7I.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UDOKY6NSRJPGT4WI.pdf(Service Manual URL)
- Service Manual URL - 11003_Z5K7YEDHAFLTQ8XR.pdf(Service Manual URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2308035_V1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_WO051TMVSHCB4XUQ.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/fRFG1d6JH7Q(Video)
- Features
| CHROMIUM PLATED METAL,COMPLETE PUSH-BUTTON |
| Zamak fixing collar material |
| Round shape of signaling unit head |
| Green flush unmarked operator profile |
| Slow-break contact operation |
| 11 to 12-terminal |
| 1015.26 psi (7000000 Pa) at 131 deg F, 0.1 m distance-resistance to high pressure washer |
| Standard contact operation |
| With positive opening conforming to EN/IEC 60947-5 1 appendix K positive opening |
| 0.06 in (NC changing electrical state), 0.1 in (NO changing electrical state) and 0.17 in (total travel) operating travel |
| 10000000 cycles mechanical durability |
| 10000000 cycles mechanical durability |
| 7.08 to 10.62 in-lb (0.8 to 1.2 N-m) conforming to EN 60947-1 tightening torque |
| Cross head compatible with Phillips® and Pozidrive #1 screwdriver, slotted head compatible with flat 4 and 5.5 mm dia screwdriver |
| Silver alloy (Ag/Ni) contact |
| 10 A cartridge fuse type gG conforming to EN/IEC 60947-5 1 short circuit protection |
| 10 A conforming to EN/IEC 60947-5 1 conventional-free air thermal current |
| 600 VAC conforming to EN/IEC 60947-1 rated insulation voltage |
| 6 kV conforming to EN/IEC 60947-1 rated impulse withstand voltage |
| 3 deg of pollution |
