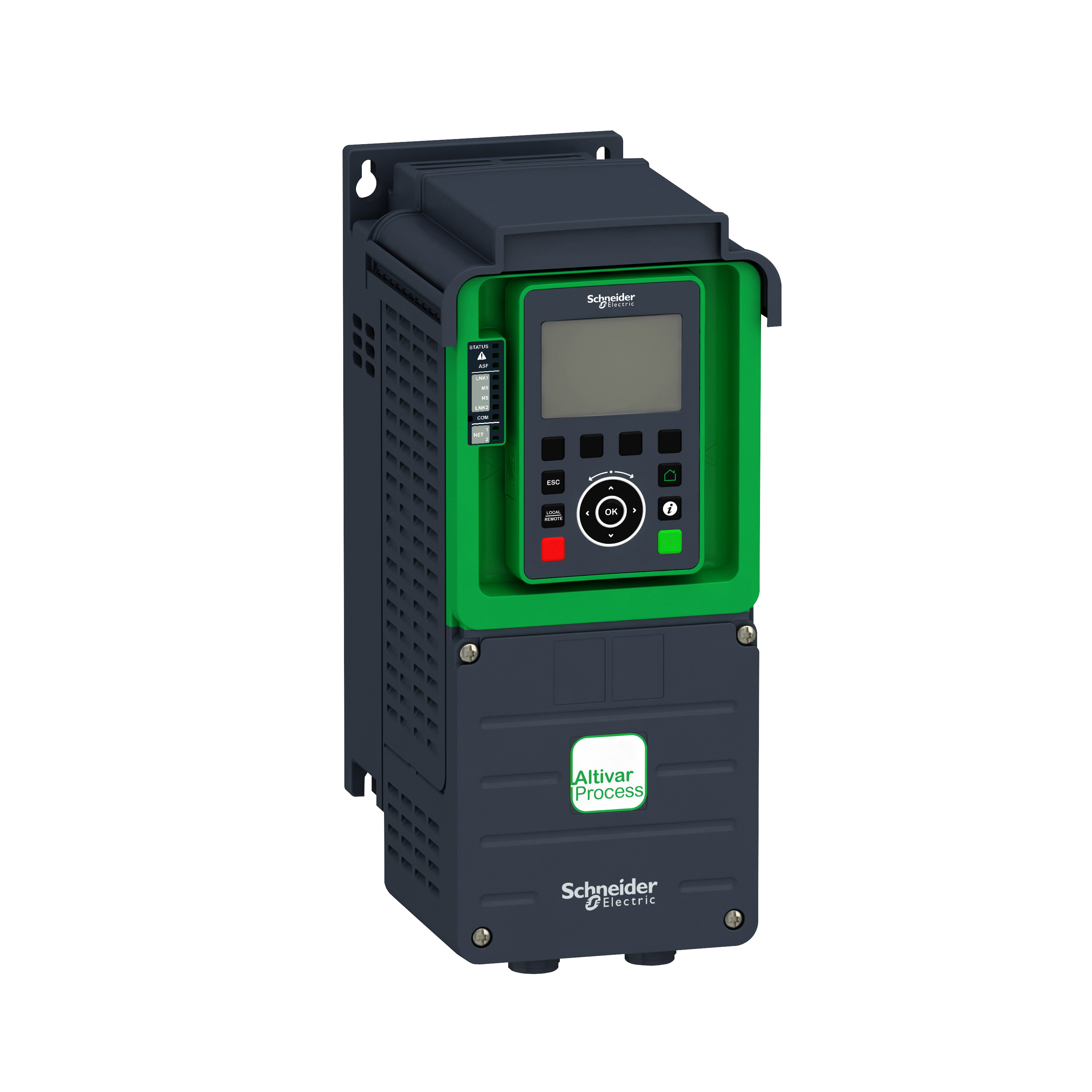

Schneider Electric Square D™ Altivar™ Process 930 ATV930U30N4 3-Phase Variable Speed Drive With Braking Unit, 400/480 V, 5.6 A Heavy Duty/7.2 A Normal Duty, 4 hp, 144 mm W x 206 mm D
Custom_Product_Images_Illustration
Schneider Electric Square D™ Altivar™ Process 930 ATV930U30N4 3-Phase Variable Speed Drive With Braking Unit, 400/480 V, 5.6 A Heavy Duty/7.2 A Normal Duty, 4 hp, 144 mm W x 206 mm D
SKU1221188
MFGR #ATV930U30N4
Call For Price
List: Schneider Electric Square D™ Altivar™ Process 930 Variable Speed Drive, 3-Phase, Series: ATV900, 400/480 V, 5.6 A Heavy Duty/7.2 A Normal Duty, 4 hp, 144 mm Width, 206 mm Depth, 350 mm Height, IP21 Enclosure, Red LED Display, Wall Mounting
Schneider Electric Square D™ Altivar™ Process 930 Variable Speed Drive, 3-Phase, Series: ATV900, 400/480 V, 5.6 A Heavy Duty/7.2 A Normal Duty, 4 hp, 144 mm Width, 206 mm Depth, 350 mm Height, IP21 Enclosure, Red LED Display, Wall Mounting
Alternate Catalog Number ATV930U30N4 Application Industrial Application, Synchronous Motor and Asynchronous Motor ARRA Compliant N Buy American Compliant N Catalog Number ATV930U30N4 Communication Modbus serial;EtherNet/IP;Modbus TCP;Ethernet;2-wire RS 485 Country of Origin US Currency USD Current Rating 5.6 A 4 kHz heavy duty;7.2 A 4 kHz normal duty Display Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) Display Type Red LED Enclosure Type IP21 Environmental Conditions -15-50 A?°C WITHOUT)-50-60 A?°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 EU RoHS Indicator Y Gross Volume Per Pack 1509.38 Gross Volume per Pack Metric 24734.21 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0608 lb Gross Weight per Pack Metric 6.08 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 31.0000 in Height [Metric] 75.0000 cm Input Voltage 380...480 V - 15...10 % Item Group 22276 Length 41.0000 in Length [Metric] 80.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548056&lang=en-us Mounting Wall mount Mounting Type Wall Returnable Y Series ATV900 Size 8.11 in Standard IP21 Substitute Product Catalog Number VW3A1112 Type 3-Phase UNSPSC 39122001 Width [Metric] 60.0000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 5.6 A Heavy Duty/7.2 A Normal Duty Depth 206 in Horsepower 4 Voltage Rating 400/480 Width 19.0000 in Industrial Application, Synchronous Motor and Asynchronous Motor Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 2.5...6 mm² AWG 14...AWG 10;motor screw terminal 2.5...6 mm² AWG 14...AWG 10;DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV930U30N4 |
| Application | Industrial Application, Synchronous Motor and Asynchronous Motor |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATV930U30N4 |
| Communication | Modbus serial;EtherNet/IP;Modbus TCP;Ethernet;2-wire RS 485 |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 5.6 A 4 kHz heavy duty;7.2 A 4 kHz normal duty |
| Display | Local diagnostic 3 LED mono/dual colour);embedded communication status 5 LED dual colour);communication module status 2 LED dual colour);presence of voltage 1 LED red) |
| Display Type | Red LED |
| Enclosure Type | IP21 |
| Environmental Conditions | -15-50 A?°C WITHOUT)-50-60 A?°C WITH DERATING FACTOR),CHEMICAL POLLUTION RESISTANCE CLASS 3C3 EN/IEC 60721-3-3-DUST POLLUTION RESISTANCE CLASS 3S3 EN/IEC 60721-3-3 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1509.38 |
| Gross Volume per Pack Metric | 24734.21 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0608 lb |
| Gross Weight per Pack Metric | 6.08 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 31.0000 in |
| Height [Metric] | 75.0000 cm |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22276 |
| Length | 41.0000 in |
| Length [Metric] | 80.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428548056&lang=en-us |
| Mounting | Wall mount |
| Mounting Type | Wall |
| Returnable | Y |
| Series | ATV900 |
| Size | 8.11 in |
| Standard | IP21 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | 3-Phase |
| UNSPSC | 39122001 |
| Width [Metric] | 60.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 5.6 A Heavy Duty/7.2 A Normal Duty |
| Depth | 206 in |
| Horsepower | 4 |
| Voltage Rating | 400/480 |
| Width | 19.0000 in |
| Industrial Application, Synchronous Motor and Asynchronous Motor |
| Variable torque standard;constant torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 2.5...6 mm² AWG 14...AWG 10;motor screw terminal 2.5...6 mm² AWG 14...AWG 10;DC bus screw terminal 2.5...6 mm² AWG 14...AWG 10;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
