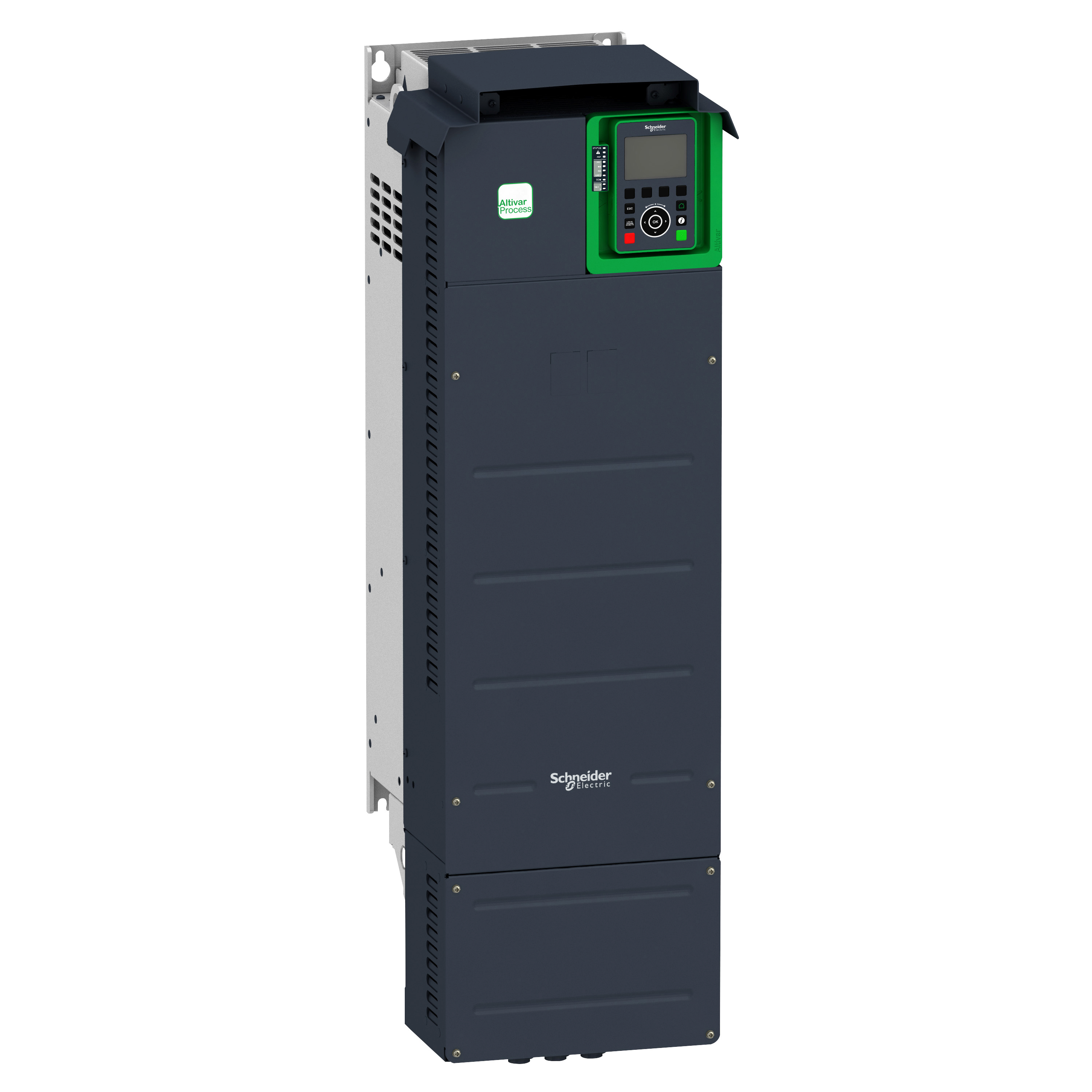

Schneider Electric Square D™ Altivar™ Process 930 ATV930D55N4 3-Phase Variable Speed Drive With Braking Unit, 400/480 V, 88 A Heavy Duty/127.2 A Normal Duty, 75 hp, 290 mm W x 325 mm D
AC Variable Frequency Drives
1324779
MFG #: ATV930D55N4
Square D™
11787.57000
/ ea
Schneider Electric Square D™ Altivar™ Process 930 Variable Speed Drive, 3-Phase, Series: ATV900, 400/480 V, 88 A Heavy Duty/127.2 A Normal Duty, 75 hp, 290 mm Width, 325 mm Depth, 922 mm Height, IP21 Enclosure, Red LED Display, Wall Mounting
- 360 Degree View URL - index.html?pid=11003&id=13853610360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ATV930D55N4_2D.dwf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ATV930D55N4_2D.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_ABY71PWCO9X2L5VT.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11003_S8VL0YZ7NK25AJGC.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_2N5RQMDTULXS9J74.pdf(Service Manual URL)
- Service Manual URL - 11003_6NEG8FZORTJPCAI1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_DO57LSA1V6F9MW3R.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8B39GOI7P1SVZE4C.pdf(Tech Bulletin URL)
- User Manual URL - 11003_3BEAXPF0CSYJOUGM.pdf(User Manual URL)
- Tech Bulletin URL - files?p_enDocType=Data Bulletin&p_File_Name=8800DB1705.pdf(Tech Bulletin URL)
- Tech Drawing URL - cc570e8cdeda81f402c96b696b082b22422d646a(Tech Drawing URL)
- User Manual URL(User Manual URL)
- Applications
- Features
| Industrial Application, Synchronous Motor and Asynchronous Motor |
| 16 PRESET SPEEDS,STO (SAFE TORQUE OFF) SIL 3,CONSTANT TORQUE STANDARD-OPTIMIZED TORQUE MODE-VARIABLE TORQUE STANDARD,CONTROL SCREW TERMINAL 0.5...1.5 MMA² AWG 20...AWG 16-LINE SIDE SCREW TERMINAL 70...120 MMA² AWG 1/0...250 KCMIL-MOTOR SCREW TERMINAL 70...120 MMA² AWG 1/0...250 KCMIL-DC BUS SCREW TERMINAL 70...120 MMA² AWG 1/0...250 KCMIL,EXTERNAL SUPPLY FOR DIGITAL INPUTS 24 V DC 19-30 V), <1.25 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY FOR DIGITAL INPUTS AND STO 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION,FORCED CONVECTION,THERMAL PROTECTION MOTOR-SAFE TORQUE OFF MOTOR-MOTOR PHASE BREAK MOTOR-THERMAL PROTECTION DRIVE-SAFE TORQUE OFF DRIVE-OVERHEATING DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERLOAD OF OUTPUT VOLTAGE DRIVE-SHORT-CIRCUIT PROTECTION DRIVE-MOTOR PHASE BREAK DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-LINE SUPPLY PHASE LOSS DRIVE-OVERSPEED DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE |
