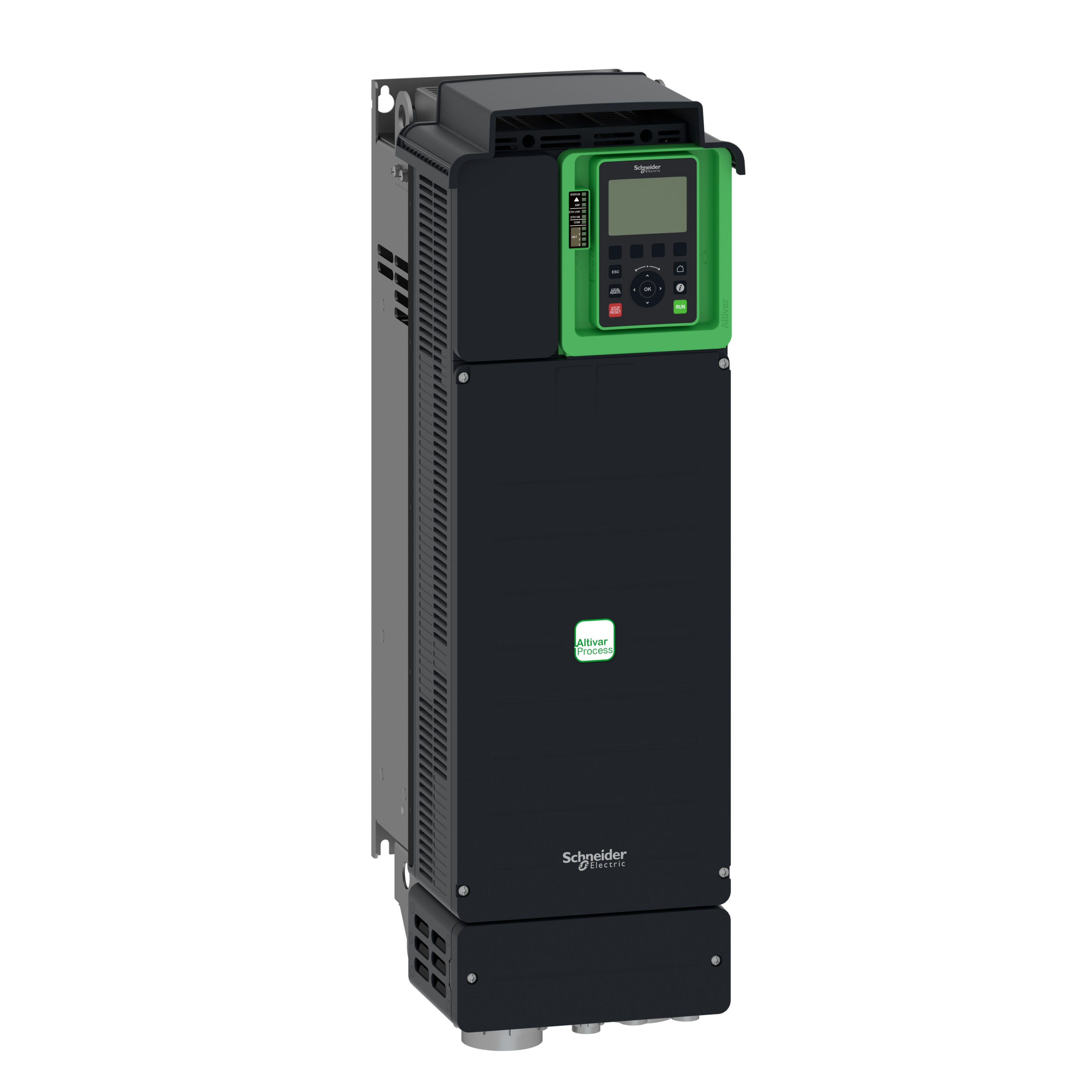

Schneider Electric Square D™ Altivar™ Process 630 ATV630D18M3 3-Phase Variable Speed Drive, 230 V, 63.4 A Heavy Duty/78.4 A Normal Duty, 25 hp, 226 mm W x 271 mm D
AC Variable Frequency Drives
PDW~11222894
MFG #: ATV630D18M3
Square D™
0.00000
/ ea
Schneider Electric Square D™ Altivar™ Process 630 Variable Speed Drive, 3-Phase, Series: ATV600, 230 V, 63.4 A Heavy Duty/78.4 A Normal Duty, 25 hp, 226 mm Width, 271 mm Depth, 673 mm Height, IP21 Enclosure, Red LED Display, Wall Mounting
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=13850787360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_CQIZ4BM17ANSU9F3.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11003_DEU3LH027KVZ5FTM.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_JCLVXOR4HSM0NY2A.pdf(Service Manual URL)
- Service Manual URL - 11003_QH1PU3WO9FKTMVN5.pdf(Service Manual URL)
- Spec Sheet URL - 11003_DCP6WQSOUZTKR7NJ.pdf(Spec Sheet URL)
- User Manual URL(User Manual URL)
- Tech Bulletin URL - files?p_enDocType=Data Bulletin&p_File_Name=8800DB1705.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_8B39GOI7P1SVZE4C.pdf(Tech Bulletin URL)
- Tech Drawing URL - sales?sn=ATV630D18M3(Tech Drawing URL)
- User Manual URL - 11003_3XHI9CF7ME54VOG1.zip(User Manual URL)
- Applications
- Features
| Process and Utilities, Synchronous and Asynchronous Motors |
| Optimized torque mode;variable torque standard;constant torque standard;STO (safe torque off) SIL 3;16 preset speeds;Forced convection;Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 35...50 mm² AWG 3...AWG 1;motor screw terminal 35...50 mm² AWG 3...AWG 1;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Without EMC filter |
