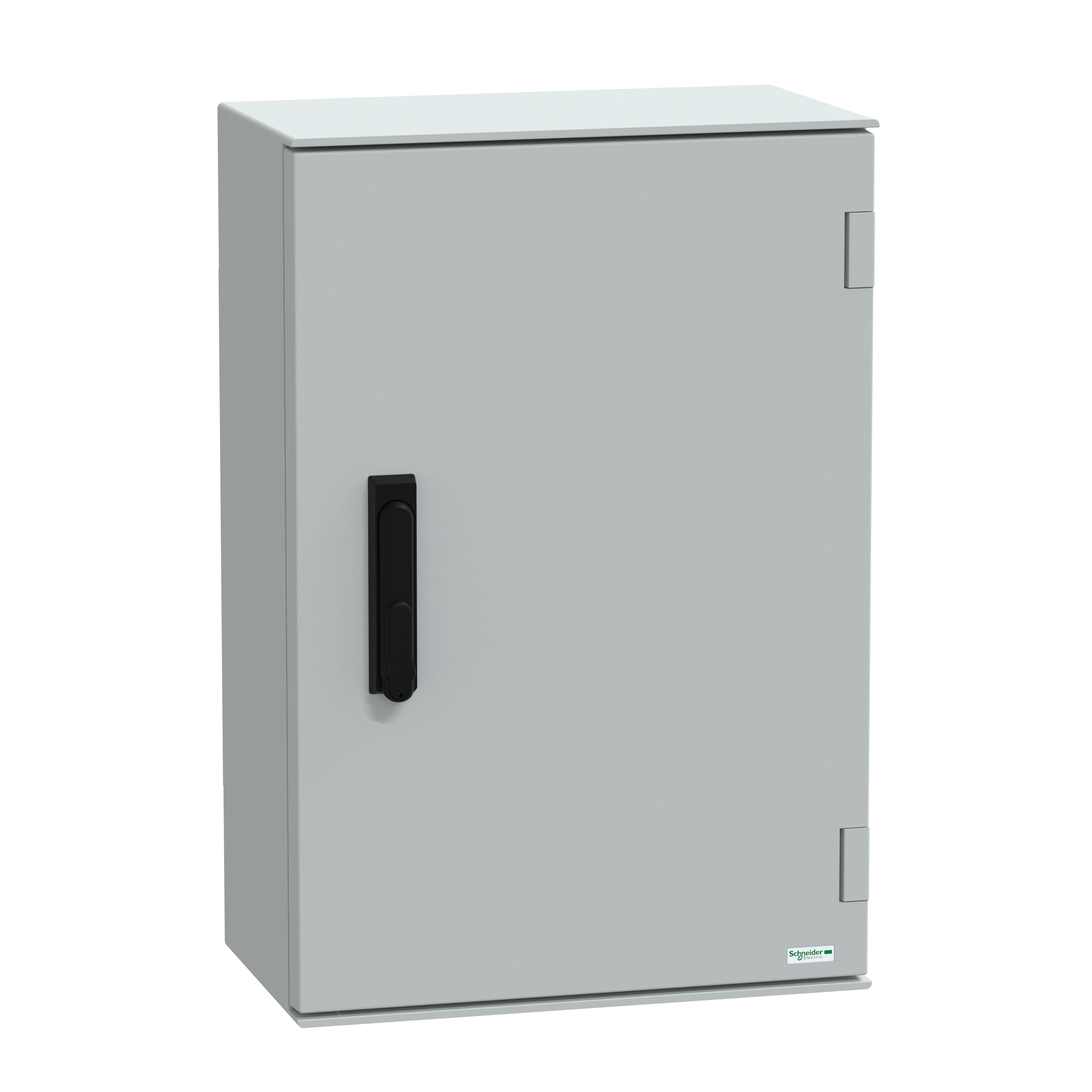

Schneider Electric NSYPLM64VG PLM Series Without Mounting Plate, 17.17 in w x 9.84 in d x 25.47 in h, polyester reinforced with fibreglass
Wall Mount Enclosures
PDW~12048707
MFG #: NSYPLM64VG
Square D™
0.00000
/ ea
Schneider Electric NSYPLM64VG, Without Mounting Plate, PLM Series, 17.17 in Width, 9.84 in Depth, 25.47 in Height, Hinged Cover, Lock: 3 points lock,handle with 1242E key lock , Class II Insulation, Wall Mounting, -40 to 80 deg C, polyester reinforced with fibreglass, Gray
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=15642162360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_HE5QDFLN4RPWAMOZ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADUE0001145.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_KHOWYAP6SM72Q843.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_J73FOQGCXH4ZAP8B.pdf(Spec Sheet URL)
- Features
| WM polyester enclosures & accessories |
| Body and door made from fiberglass reinforced polyester, molded by hot compression, RAL7032 color |
| Same finish for all surfaces |
| 8 dimensions from 310x215x160mm up to 1056x852x350mm |
| 2 locks with double-bar insert or 1 lock with 3 action points |
| Version with plain or glazed door |
| Version with metallic or bakelite mounting plate |
| ATEX black colour version, plain door |
| Total insulation suitable to produce class II assemblies |
| Impact resistance: IK10 for plain door version, - IK08 for the glazed door |
| Impact resistance: IK10 for plain door version, - IK08 for the glazed door |
| Polyester plinths ZM 200 mm, stackable 2x200mm, for PLM75, PLM 86, PLM108 enclosures |
| Schneider Electric selected a wide variety of spare parts for your enclosure |
| One piece moulded with notches in the rearBuilt-in canopy body type |
| 2 number of locks |
| Class II electrical insulation class |
| 1760 deg F (960 deg C) IEC 62208 fire resistance |
