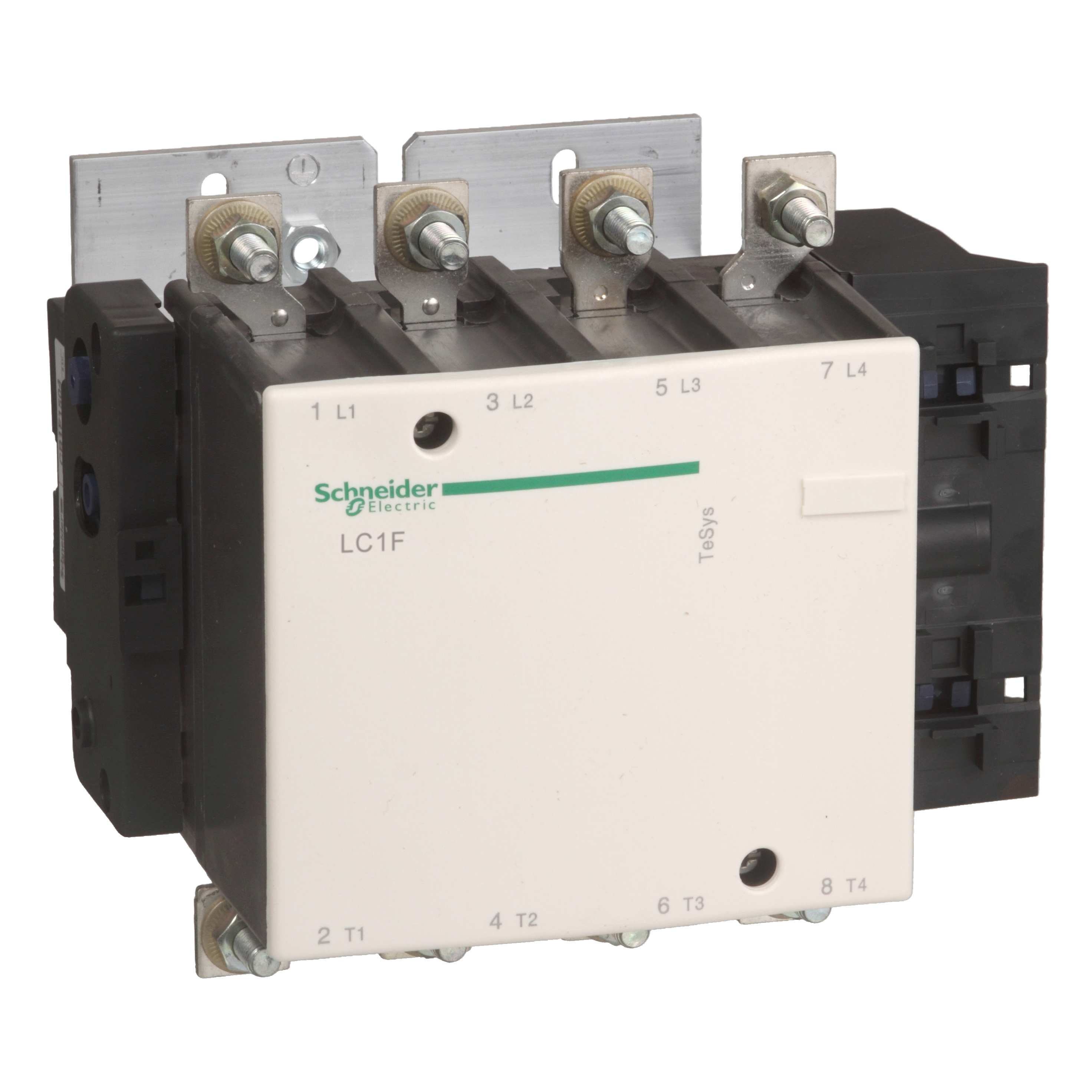

Schneider Electric LC1F2654M7 LC1F Series Contactor, 220 VAC v coil, 350 A, 4NO contact, 4 poles
NEMA & IEC Contactors
PDW~11734669
MFG #: LC1F2654M7
Square D™
0.00000
/ ea
Schneider Electric LC1F2654M7, Contactor, LC1F Series, 220 VAC Coil, 350 A Maximum Load Current, 4 Pole, 40 to 400 Hz Frequency, 37 W Wattage, 4NO Contact Configuration, 350 A Contact, Power Factor: 650 , Screw clamp Connection, 7.99 in H x 9.63 in W x 8.39 in D Size, Screw Clamp Terminal, IP20 Enclosure, 2400 cycles Operating Cycles, 23 to 131 deg F Operating, Plate Mounting, 7.99 in H x 9.63 in W x 8.39 in D Dimensions
- Brochure URL - 115967977b38aa63fd29e8e8024eb8003e40dffe.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WPRQF1HY3JVAKSU6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GTQU8NV73Z5S6BA1.pdf(Service Manual URL)
- Spec Sheet URL - 11003_HL74M3Q9O0TNS561.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Applications
- Features
| For high operating rates until 2400 cycles/hour and environments until 55, For bars or cables with lugs, For non-inductive load applications |
| The TeSys F contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes |
| Front mount dust tight auxiliary contact blocks |
| Pneumatic time delay blocks |
| Solid State Overload Relays |
| They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection |
| They also include the following features Isolated N.C. trip contact, N.O. alarm contact |
| Manual reset button |
| Rotary dial for adjustable current settings with tamper resistant window |
| Test trip button |
| Resistive load contactor application |
| Resistive load contactor application |
| 8 kV uimp rated impulse withstand voltage |
| III overvoltage category |
| 2200 A 104 deg F (40 deg C) - 10 s1230 A 104 deg F (40 deg C) - 30 s950 A 104 deg F (40 deg C) - 1 min620 A 104 deg F (40 deg C) - 3 min480 A 104 deg F (40 deg C) - 10 min icw rated short-time withstand current |
| 0.3 mOhm - Ith 350 A 50 Hz average impedance |
| 1000 V IEC 60947-4-1 1500 V VDE 0110 group C ui rated insulation voltage |
| 40 to 65 ms closing100 to 170 ms opening operating time |
| 10 Mcycles mechanical durability |
| LC1F compatibility code |
