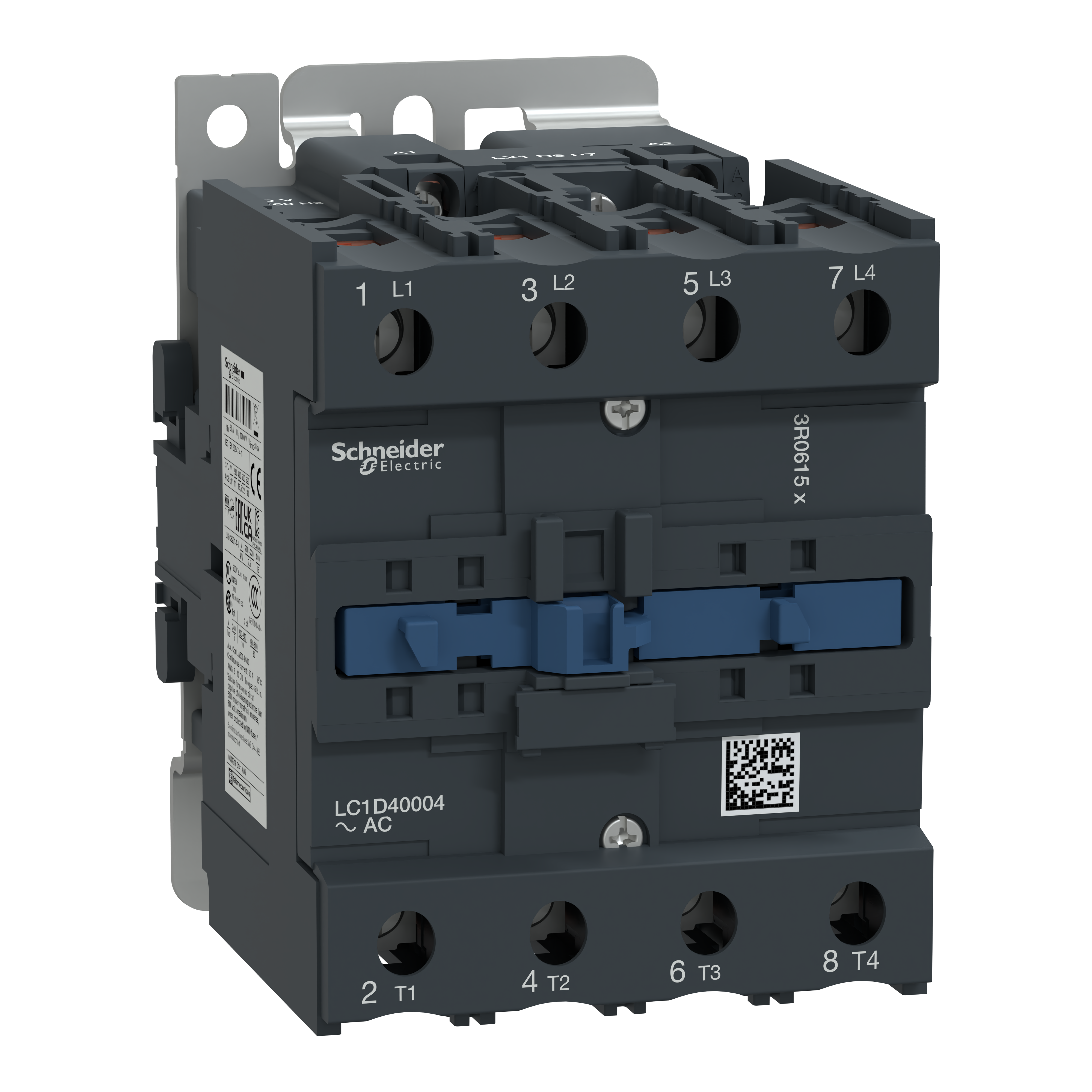

Schneider Electric LC1D40004F7 LC1 Contactor, 110 VAC V Coil, 10; 60, 4NO Contact, 4 Poles
NEMA & IEC Contactors
PDW~6407070
MFG #: LC1D40004F7
Square D™
0.00000
/ ea
Schneider Electric, LC1D40004F7, LC1 Contactor, Series: LC1, 110 VAC Coil, 10; 60 Maximum Load Current, 13; 15 Coil, 4 Pole, 50/60 Hz Frequency, 5.4 Wattage, Mechanically Linked/Mirror Contact, 4NO Contact Configuration, 1NO-1NC Mechanically Linked/1NC Mirror Contact Auxiliary Contacts, 10/60 A Contact, 4.92 Size, Screw Clamp Terminal, IP2x Enclosure, 3600 Cycles Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 127 mm H x 85 mm W x 125 mm D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=17182727360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_WEJC1ZNTS3GF5P0H.pdf(Service Manual URL)
- Spec Sheet URL - 11003_BN6LW82X4MQECAUY.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Applications
- Features
| Resistive load |
| Without built-in bidirectional peak limiting diode suppressor |
| TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps |
| Designed to control and provide overload protection to motors rated up to 100 HP at 480 VAC or 125 HP at 600 VAC, TeSys D meets your needs for a majority of motor starter applications |
| New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil |
| TeSys D Green contactor simplify your maintenance services with 90% less references needed |
| TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50 |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| 3-pole and 4-pole contactor versions available |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| TeSys D contactors can be panel mounted with screws or DIN rail mounted |
| Easily installed accessories |
| Without built-in bidirectional peak limiting diode suppressor |
