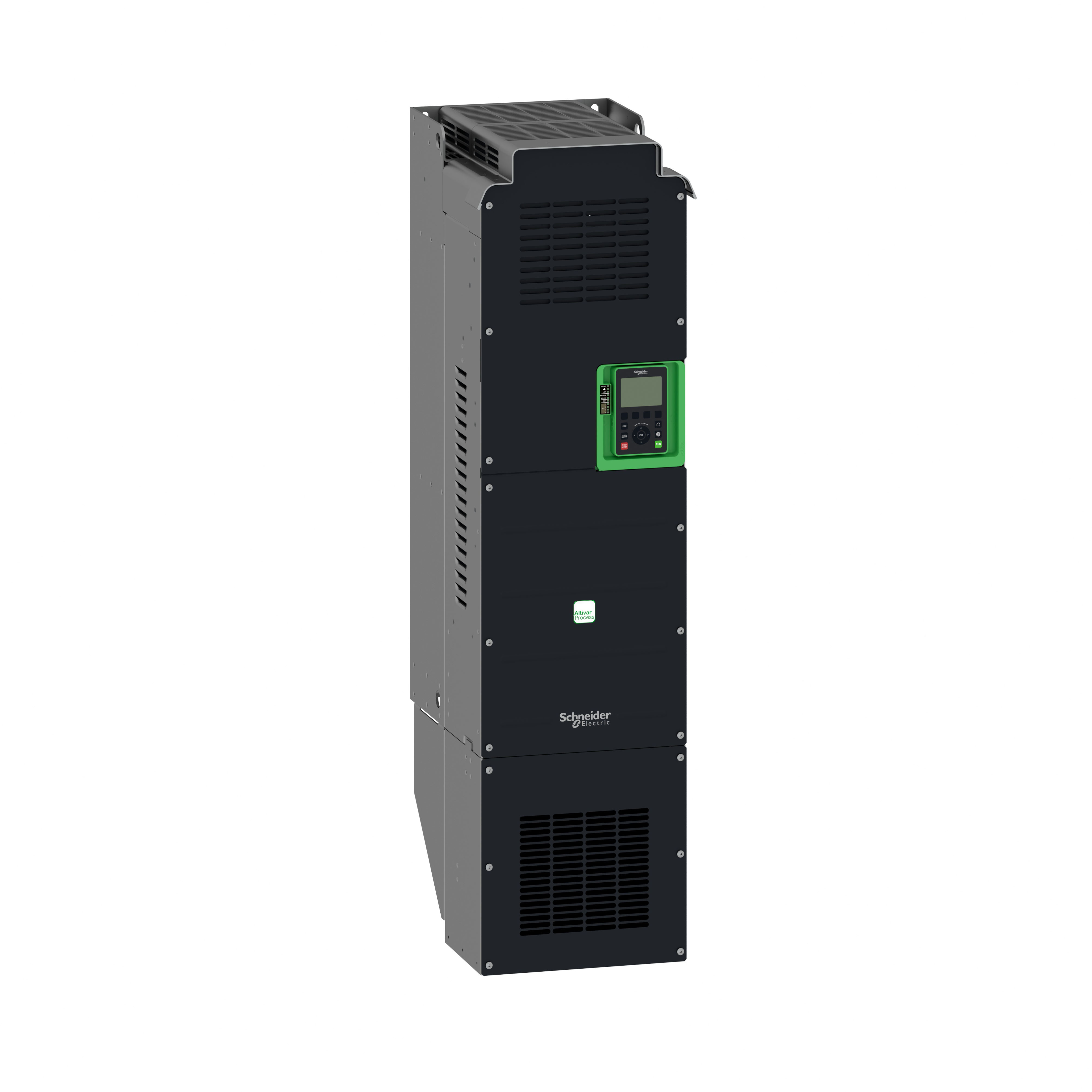

Schneider Electric Altivar® Process 630 ATV630C11N4 3-Phase Type 1 Standard AC Variable Speed Drive With Category C3 Integrated EMC Filter, 460 VAC, 143/170/165/201 A, 125 hp, 150 hp, 12.6 in W x 15.35 in D

AC Variable Frequency Drives
1367214 MFG #: ATV630C11N4
Square D™
17690.57000 / ea
11003_X94VGA2YFJPHCIMB
Schneider Electric Altivar® Process 630 AC Variable Speed Drive, 3-Phase Type 1 Standard, 460 VAC, 143/170/165/201 A, 125 hp, 150 hp, 12.6 in Width, 15.35 in Depth, 33.54 in Height, NEMA 1/IP00/IP20/IP21 Enclosure, LED/Remote Graphic Display, Wall Mounting
QTY
Add to Wishlist
  • Applications
  • Features
Water and Wastewater, Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Process and Utilities, Asynchronous and Synchronous Motors Applications
Constant torque standard;optimized torque mode;variable torque standard;STO (safe torque off) SIL 3;16 preset speeds;Forced convection;Control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16;line side screw terminal 2 x 50...3 x 120 mm² 2 x AWG 1/0...2 x 300 kcmil;motor screw terminal 2 x 50...3 x 120 mm² 2 x AWG 1/0...2 x 300 kcmil;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
Accurate measurement for monitoring system energy consumption (deviation <5%)
Installation energy drift detection
Embedded Ethernet with direct access to system configuration and monitoring
Integration of actual pump curves to optimize the system operating point
Optimized pump monitoring based on actual operating point
Sensorless estimated flow rate
Measurements expressed in working units
Limitation of overvoltage at the motor terminals
Contextual access to technical documentation through dynamic QR code
Predictive and preventive maintenance tracking functions (e.g. - temperatures with PT100/1000 probe, fan monitoring)
Predictive and preventive maintenance tracking functions (e.g. - temperatures with PT100/1000 probe, fan monitoring)
150 hp at normal duty, 125 hp at heavy duty horsepower rating
201 A at 380 VAC normal duty, 165 A at 480 VAC normal duty, 170 A at 380 VAC heavy duty, 143 A at 480 VAC heavy duty amperage rating
16 preset speeds
STO (safe torque off) SIL 3
0.5 to 1.5 sq-mm removable screw terminals, 20 to 16 AWG control, 2 x 50 to 3 x 120 sq-mm screw terminal, 2 x 2/0 AWG to 2 x 300 kcmil line side, 2 x 50 to 3 x 120 sq-mm screw terminal, 2 x 2/0 AWG to 2 x 300 kcmil motor
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 VDC +/- 5 % <= 10 mA overload and short circuit protection, external supply for digital inputs 24 VDC 19 to 30 V <= 1.25 mA overload and short circuit protection, internal supply for digital inputs and STO 24 VDC 21 to 27 V <= 200 mA overload and short circuit protection
Optimized torque mode, constant torque standard, variable torque standard, forced convection cooling
Safe torque off motor, motor phase break motor, Safe torque off drive, overheating drive, short circuit protection drive, motor phase break drive, overspeed drive, break on the control circuit drive, overvoltage on the DC bus drive, overload of output voltage drive, line supply overvoltage drive, line supply phase loss drive, line supply undervoltage drive, overcurrent between output phases and earth drive, thermal protection motor, thermal protection drive
