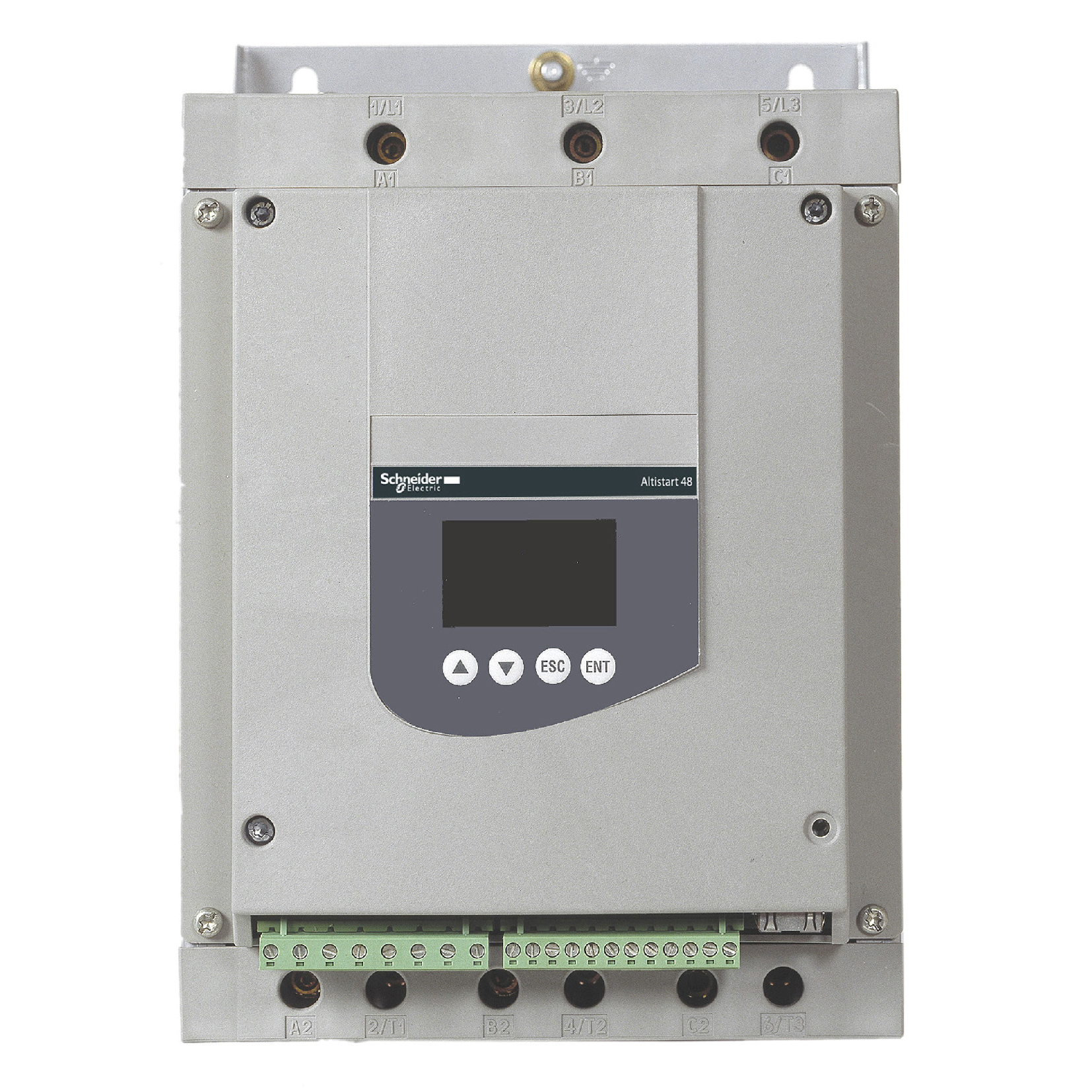

Schneider Electric Altistart 48 Square D™ ATS48D47Y Standard Duty Soft Starter With Heat Sink, 110/230 VAC V Coil, IP20 Enclosure
Open Soft Starters
412321
MFG #: ATS48D47Y
Square D™
1765.46000
/ ea
Schneider Electric Altistart 48 Square D™ Soft Starter, Standard Duty, Series: ATS48, 208 to 690 VAC, 47 A, 50/60 Hz Frequency, 11/37 kW Wattage, 10 hp Motor, 110/230 VAC Coil, 1 to 60 s Timing, 3 ph, Plug-In Connection, IP20 Enclosure, -10 to 40 deg C Operating, 6.3 in W x 7.48 in D x 10.83 in H Dimensions
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_ZCTNOJ19Q65W24K0.pdf(Service Manual URL)
- Install Instructions 1 URL - 11003_AZGHUWCIF6KRM1DE.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11003_FYT8K54GBVUI3COQ.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_QRGJY96MI8XEH743.pdf(Tech Drawing URL)
- User Manual URL - 11003_WYULO5ATQ4EDHVPF.pdf(User Manual URL)
- Tech Bulletin URL - 11003_S2G6TUD5QWKOVZF4.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/4Ag-WYcFNlw(Video)
- Applications
- Features
| Asynchronous Motors, Heavy Duty Industry and Pump Applications |
| EXTERNAL BYPASS (OPTIONAL) |
| The Altistart® 48 soft start/soft stop unit is a cost-effective solution |
| Reduce machine operating costs by reducing mechanical stress and improving machine availability |
| The Altistart® 48 soft start/soft stop unit 1 is supplied ready for use in a standard application with Class 10 motor protection |
| Exclusive Altistart® torque control |
| Constant control of the torque supplied to the motor during acceleration and deceleration periods |
| Ease of adjusting the ramp and the starting torque |
| Wide frequency tolerance for generator set power supplies |
| Built-in motor thermal protection |
| 10 hp at 208 VAC/15 hp at 230 VAC/25 hp at 460 VAC/30 hp at 460 VAC/30 hp at 575 VAC/40 hp at 575 VAC/10 hp at 208 VAC/15 hp at 230 VAC/30 hp at 460 VAC/30 hp at 575 VAC/40 hp at 575 VAC/25 hp at 460 VAC power rating |
