Schneider Electric ATV950U07N4EU ATV950 Series Variable Speed Drive, 380 to 480 V, 1.5 A, 1 hp, 10.39 in w x 11.81 in d
AC Variable Frequency Drives
PDW~12907000
MFG #: ATV950U07N4EU
Square D™
1940.40000
/ ea

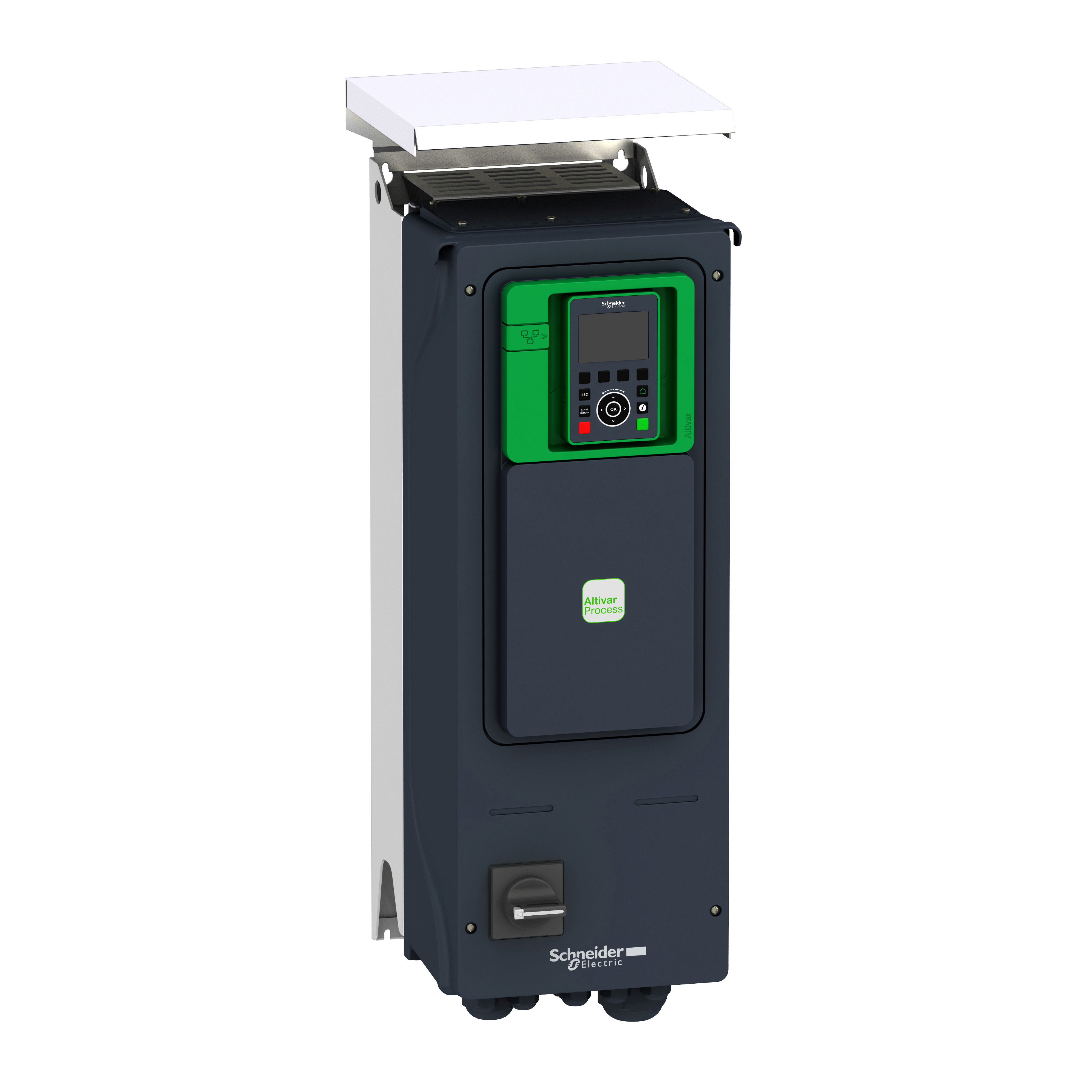

Schneider Electric ATV950U07N4EU, Variable Speed Drive, ATV950 Series, 380 to 480 V, 1.5 A, 1 hp, 10.39 in Width, 11.81 in Depth, 26.69 in Height, IP55 Enclosure, Wall Mounting
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_FYGSKXLR184OJ7E2.zip(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_0KFHZ6G125U9JINQ.pdf(Service Manual URL)
- Service Manual URL - 11003_6GAE7B2S0ORZQ14N.pdf(Service Manual URL)
- Spec Sheet URL - 11003_SCMO25JR16V94HKE.pdf(Spec Sheet URL)
- User Manual URL(User Manual URL)
- User Manual URL - 11003_3BEAXPF0CSYJOUGM.pdf(User Manual URL)
- Applications
- Features
| Industrial Application,Asynchronous motors,Synchronous motors |
| Constant torque standard;variable torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm²;line side screw terminal 4...6 mm²;motor screw terminal 4...6 mm²;DC bus screw terminal 2.5...6 mm²;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
| Embedded Power measurement and Energy dashboard |
| Embedded process monitoring and control |
| Low Harmonics (THDi < 48% at 80% load or THDi < 5% with low harmonic offer) |
| Stop and Go function to reduce energy consumption in standby mode |
| Asset monitoring and protection |
| Drift monitoring |
| Easy maintenance via a Dynamic QR-Code |
| Seamless integration with embedded Ethernet:From device to process control with the Smart Process Object |
| From data to insights with the embedded Web Server |
| Modular and compact design |
| Modular and compact design |
| Easy grid integration |
| Embedded Control (PLC, RTU, HMI) |
| A full set of control options |
| Fully load tested in a controlled laboratory environment |
| Complies with your countrys industry standards |
| Sustainable cost savings thanks to predictive condition-based maintenance |
| Up to 20% downtime reduction without additional investment |
| Excellent motor performance on any type of motor in open or closed loop control |
| Dual port Ethernet maximizes services such as connection to the control room and full process transparency |
