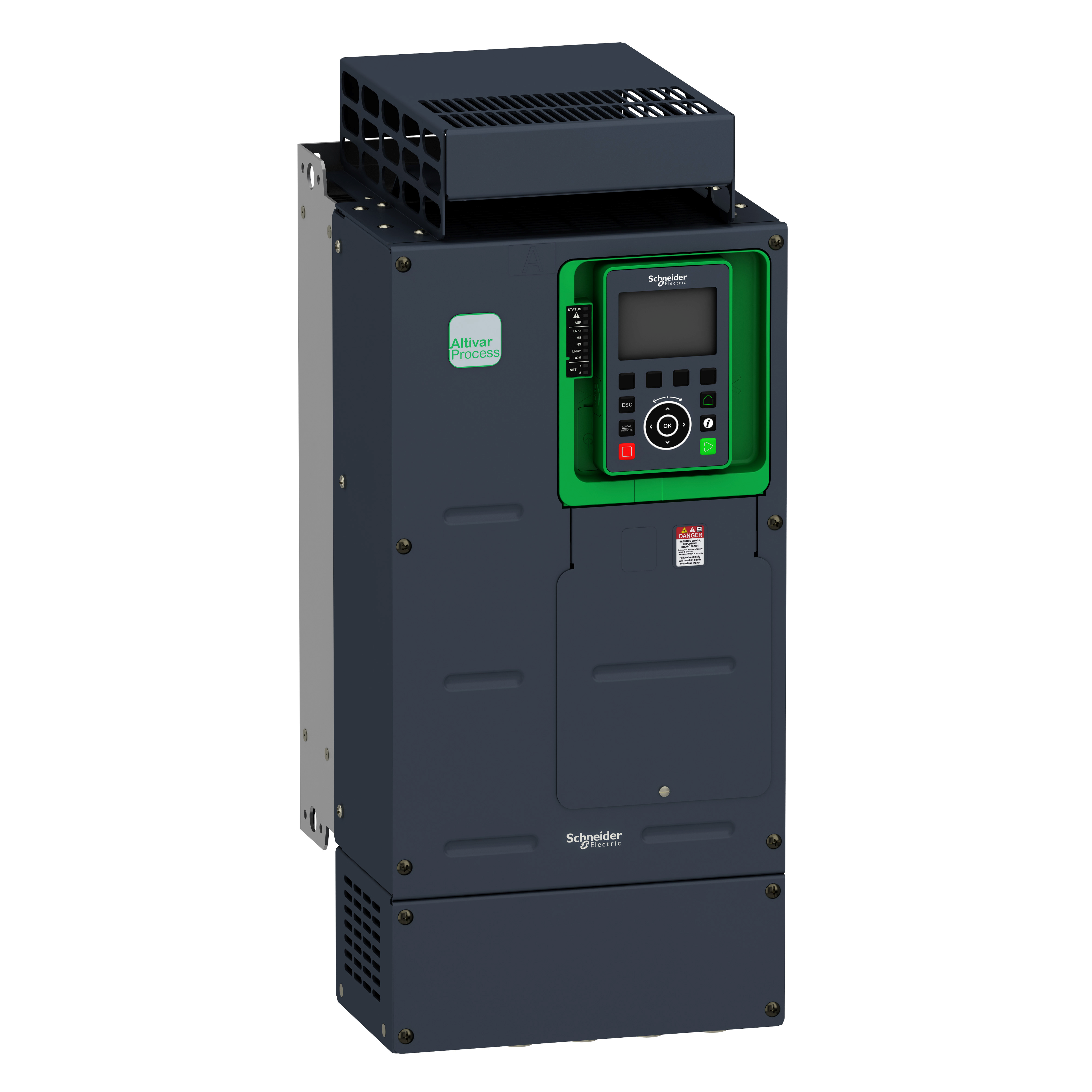

Schneider Electric ATV930D18S6 Altivar™ 3-Phase Variable Speed Drive, 600 V, 23.2 A at 600 V Normal Duty, 19.6 A at 600 V Heavy Duty, 25 hp at 600 V Normal Duty, 20 hp at 600 V Heavy Duty, 9.69 in W x 9.53 in D
AC Variable Frequency Drives
1311496
MFG #: ATV930D18S6
Square D™
4962.79000
/ ea
Schneider Electric Variable Speed Drive, 3-Phase, Series: Altivar™ ATV930, 600 V, 23.2 A at 600 V Normal Duty, 19.6 A at 600 V Heavy Duty, 25 hp at 600 V Normal Duty, 20 hp at 600 V Heavy Duty, 9.69 in Width, 9.53 in Depth, 22.32 in Height, IP20 Enclosure, Wall Mounting
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_ABY71PWCO9X2L5VT.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11003_S8VL0YZ7NK25AJGC.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_8QEC01IY6WPXJLBM.pdf(Service Manual URL)
- Service Manual URL - 11003_YZVLS51U9AFXQP2K.pdf(Service Manual URL)
- Spec Sheet URL - 11003_L7WMB93TA25SFNCZ.pdf(Spec Sheet URL)
- User Manual URL(User Manual URL)
- User Manual URL - 11003_3BEAXPF0CSYJOUGM.pdf(User Manual URL)
- Applications
- Features
| Industrial Applications |
| Constant torque standard;variable torque standard;optimized torque mode;16 preset speeds;Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16;motor screw terminal 10 mm² AWG 8;line side screw terminal 10 mm² AWG 8;DC bus screw terminal 10 mm² AWG 8;1;Thermal protection motor;safe torque off motor;motor phase break motor;thermal protection drive;safe torque off drive;overheating drive;overcurrent between output phases and earth drive;overload of output voltage drive;short-circuit protection drive;motor phase break drive;overvoltages on the DC bus drive;line supply overvoltage drive;line supply undervoltage drive;line supply phase loss drive;overspeed drive;break on the control circuit drive;External supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection;internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection;internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection |
