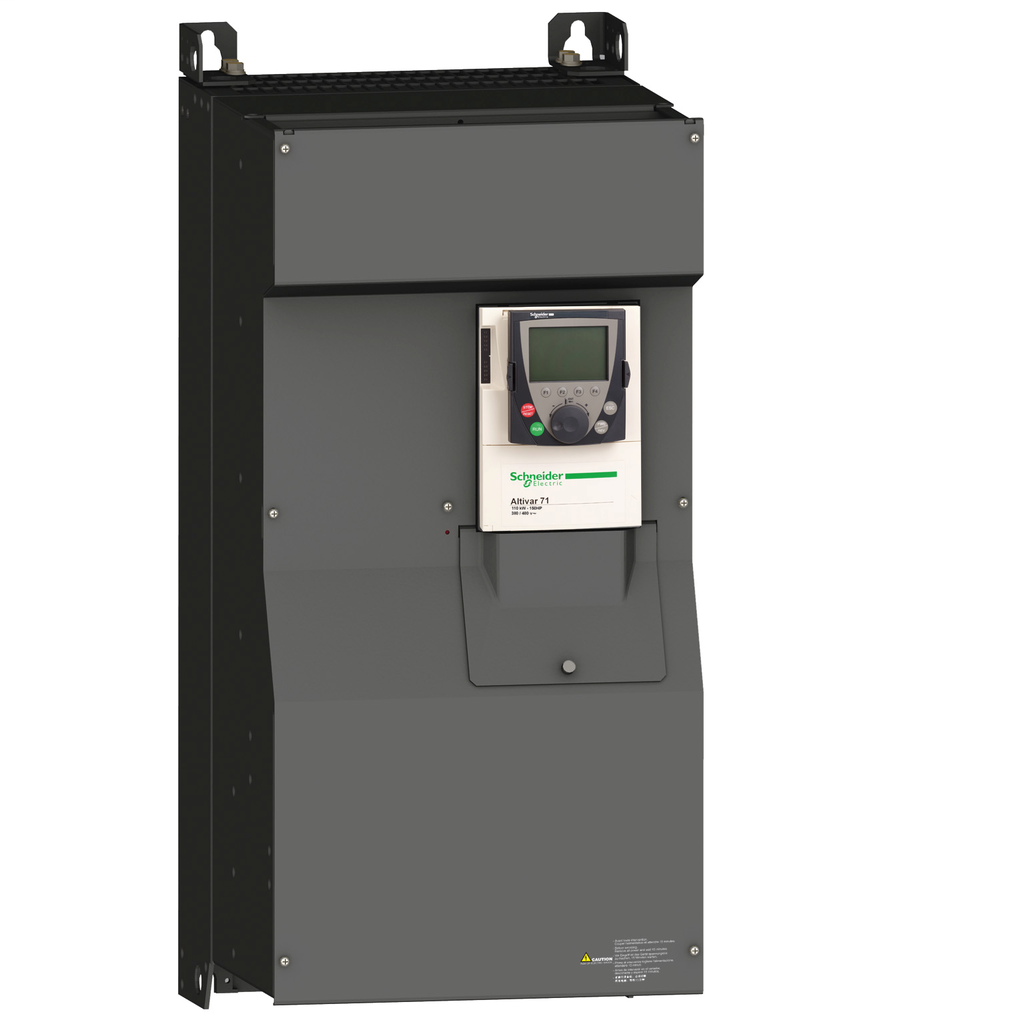

Schneider Electric ATV71HC11N4 AC Variable Frequency Drives
AC Variable Frequency Drives
436162
MFG #: ATV71HC11N4
Schneider Electric
24793.46000
/ ea
Schneider Electric ATV71HC11N4 SPEED DRIVE, 150HP, 460V, ATV71,110kW,215A 150HP,220 of nominal motor torque for 2 seconds, 170 for 60 seconds,3 phases,3-Phase,3-Phase,400/480VAC,AC Drive,AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR terminal 2.5 mmA? / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3 terminal 2 x 100 mmA?PA, PB terminal 60 mmA?PC/-, PO, PA/+ terminal 2 x 150 mmA?,Altivar 71,Altivar 71,Constant Torque,Frame 10,Graphic display keypad,IP20,Input 50/60 Hz,UL, CSA, CE, ABS, DNV, GOST, RoHS, WEEE, C-Tick, NOM 117
- Brochure URL - d4b5c808a99739821bf40e1b6871c97b5f49f0b8.pdf(Brochure URL)
- Catalog URL - Schneider_Electric_ATS22C11S6U_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_ATV71HC11N4_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - f5d865101663885b2a36c47a72780dfbedab817c.zip(Computer~Aided [CAD|BIM] Model URL)
- Line Drawing URL(Line Drawing URL)
- Owners Manual URL - Schneider_Electric_ATV61HC11N4_Manual.pdf(Owners Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - fdfdf7931628f30c959ea0f7a1d48ab9688d38e6.pdf(Spec Sheet URL)
- Tech Drawing URL - f5d865101663885b2a36c47a72780dfbedab817c.zip(Tech Drawing URL)
- Tech Drawing URL - sales?sn=ATV71HC11N4(Tech Drawing URL)
- Video - https://www.youtube.com/embed/Avmxgw6eeh8(Video)
- User Manual URL - 391e23339b4166655f58109fa08b5b51eb7fe1af.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/ZGRRZUBPvvg(Video)
- Applications
- Features
| CONSTANT TORQUE |
| 215A 150HP |
| Frequency inverters for 3-phase synchronous and asynchronous motors |
| Speed regulation by flux vector control with or without sensor |
| Protection of motor and of drive |
| Exceptional performance, advanced functions |
| Altivar® 71 provides ingenious solutions for all your particular requirements |
| Integrated EMC filter class A |
| Constant torque |
| Graphic terminal plain text, navigation button, configurable function keys, "Simply Start" menu |
| Modbus, CANopen communication port protocol |
| 1 to 1000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode speed range |
| Graphic terminal |
| -10 to 50 deg C operating |
| 110 kW power |
| 3 phase |
