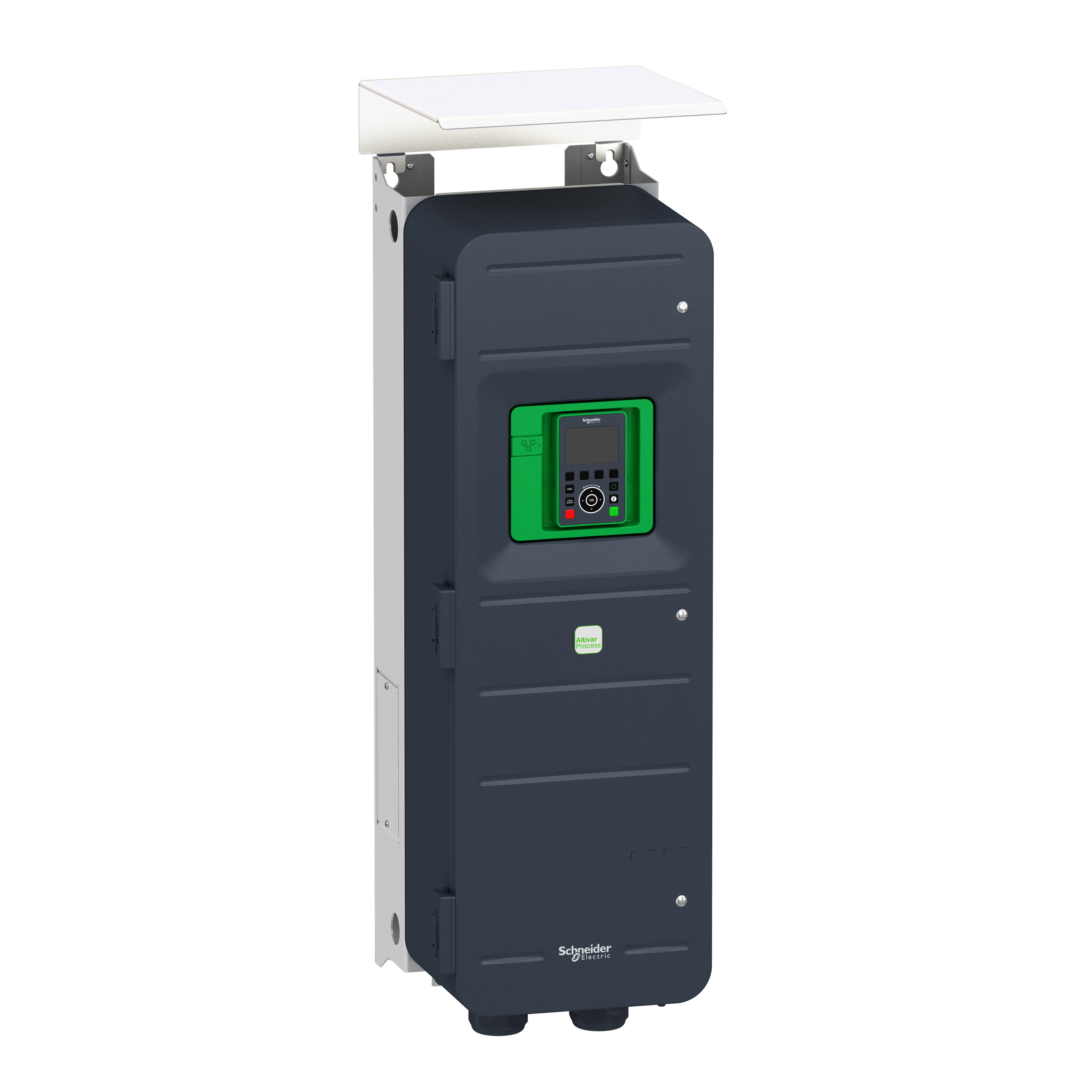

Schneider Electric ATV650D45N4U ATV650 Series Variable Speed Drive, 380 to 480 V, 69.1 A, 50 hp heavy duty,60 hp normal duty, 11.42 in w x 13.39 in d
AC Variable Frequency Drives
PDW~13592679
MFG #: ATV650D45N4U
Square D™
10018.80000
/ ea
Schneider Electric ATV650D45N4U, Variable Speed Drive, ATV650 Series, 380 to 480 V, 69.1 A, 50 hp heavy duty,60 hp normal duty, 11.42 in Width, 13.39 in Depth, 35.83 in Height, IP55 Enclosure, Wall Mounting
- Brochure URL - 11003_C9XPMSHBGA4Q63U2.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_DEU3LH027KVZ5FTM.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_PKAWL1X8EO4Q3VDG.pdf(Service Manual URL)
- Spec Sheet URL - 11003_O2I6CBRGWSV7Q1UP.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_QSFT7UXD2NYRG9L6.pdf(Tech Bulletin URL)
- User Manual URL(User Manual URL)
- Applications
- Features
| Asynchronous motors,Process and utilities |
| Proactive Operational Intelligence so you can customize information, your way |
| Embedded Guidance to serve you expertise, when you need it |
| A Reliable and Sustainable platform, delivering on decades of experience |
| Sustainable cost savings thanks to predictive condition-based maintenance |
| Unique Engineered Drives - Schneider Electrics expertise in design and application services delivers solution-specific designs dedicated to your process requirements for seamless plant integration |
| Minimize design and delivery risks |
| Reduces the commissioning and adaptation time |
| Enhanced Drives specifications - Compact and modular, suitable even in harsh environments, Altivar Process is perfect for upgrades, retrofits, or new installations |
| Withstand the severe conditions of use both electrical as environmental |
| STO (safe torque off) SIL 3 safety function |
| STO (safe torque off) SIL 3 safety function |
| Modbus TCPModbus serialEthernet communication port protocol |
| 69.7 dB 86/188/EEC noise level |
| Standard version variant |
| 50 kA prospective line isc |
| 49.1 kVA 480 V heavy duty)57.4 kVA 480 V normal duty) apparent power |
| 72 A 4 kHz heavy duty87 A 4 kHz normal duty continuous output current |
| Variable torque standardConstant torque standardVariable torque standard asynchronous motor control profile |
| Synchronous reluctance motorPermanent magnet motor synchronous motor control profile |
