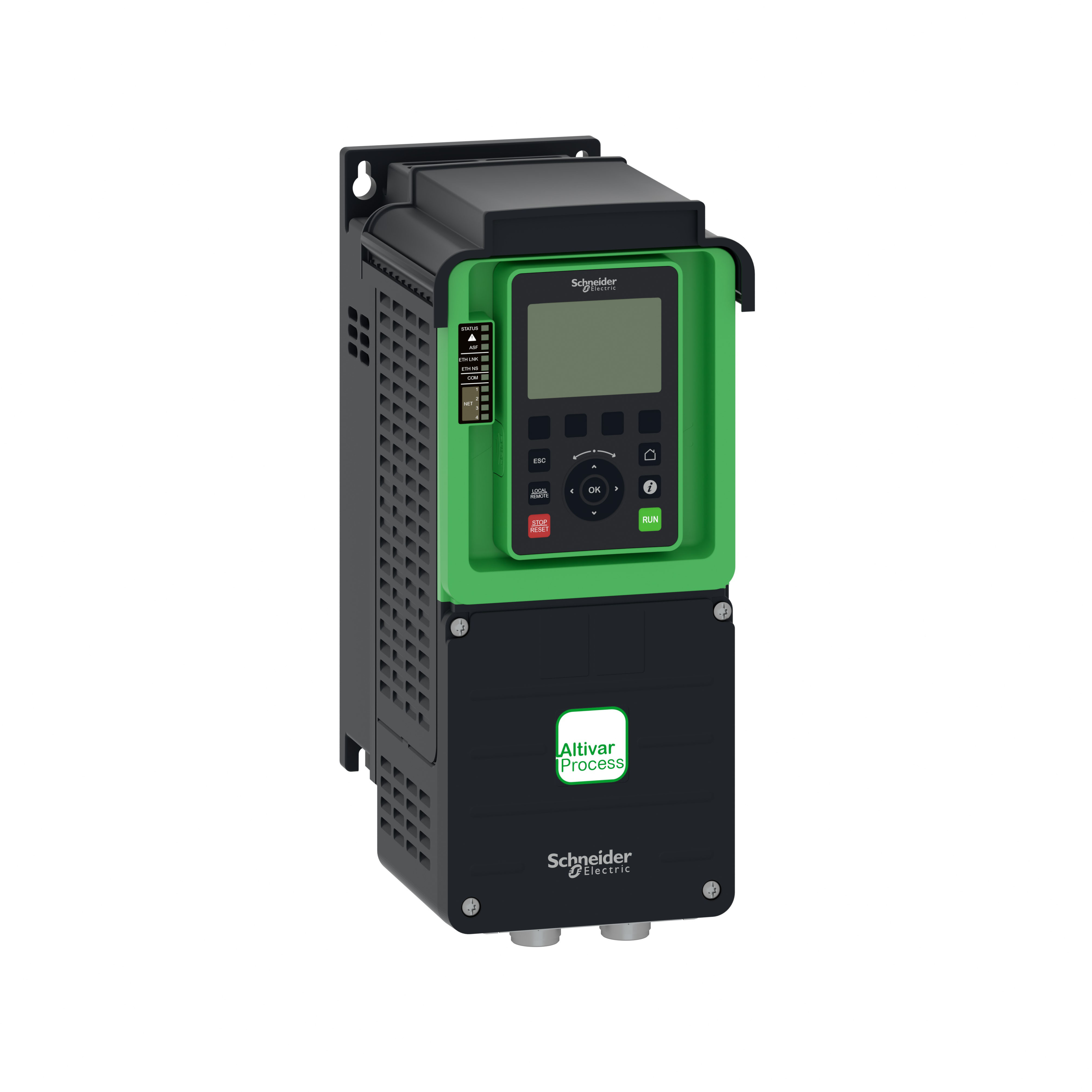

Schneider Electric ATV630U07N4 Altivar® Process ATV600 3-Phase Type 1 Standard AC Variable Speed Drive With Category C2/C3 Integrated EMC Filter, 380 to 480 VAC, 0.8/0.9/1.3/1.5 A, 1/2 hp, 1 hp, 5.67 in W x 7.99 in D
AC Drives
1102699
MFG #: ATV630U07N4
Square D™
1443.48000
/ ea
Schneider Electric AC Variable Speed Drive, 3-Phase Type 1 Standard, Series: Altivar® Process ATV600, 380 to 480 VAC, 0.8/0.9/1.3/1.5 A, 1/2 hp, 1 hp, 5.67 in Width, 7.99 in D, 13.78 in Height, NEMA 1/IP20/IP21, Remote Graphic, Wall Mount
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=13886040360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_CQIZ4BM17ANSU9F3.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 11003_DEU3LH027KVZ5FTM.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_1YCMAPIGWQ4H2VN9.pdf(Service Manual URL)
- Service Manual URL - 11003_G0WOJYLR1D73CTA5.pdf(Service Manual URL)
- Spec Sheet URL - 11003_P6RSVJLTU1FNEAHY.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8B39GOI7P1SVZE4C.pdf(Tech Bulletin URL)
- User Manual URL - 11003_3XHI9CF7ME54VOG1.zip(User Manual URL)
- User Manual URL(User Manual URL)
- Tech Bulletin URL - files?p_enDocType=Data Bulletin&p_File_Name=8800DB1705.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/1-ziZW4SvEM(Video)
- Applications
- Features
| Water and Wastewater, Oil and Gas, Mining, Minerals and Metals, Food and Beverage, Process and Utilities, Asynchronous and Synchronous Motors Applications |
| Accurate measurement for monitoring system energy consumption (deviation <5%) |
| Installation energy drift detection |
| Embedded ethernet with direct access to system configuration and monitoring |
| Integration of actual pump curves to optimize the system operating point |
| Optimized pump monitoring based on actual operating point |
| Sensorless estimated flow rate |
| Measurements expressed in working units |
| Limitation of overvoltage at the motor terminals |
| Contextual access to technical documentation through dynamic QR code |
| Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) |
| Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) |
| 1 hp at normal duty, 1/2 hp at heavy duty horsepower rating |
| 1.5 a at 380 vac normal duty, 1.3 a at 480 vac normal duty, 0.9 a at 380 vac heavy duty, 0.8 a at 480 vac heavy duty amperage rating |
