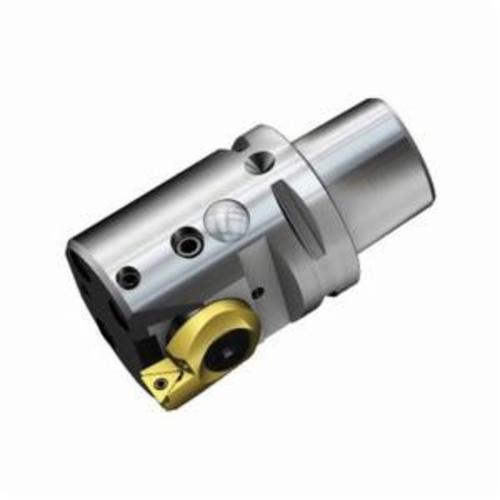

Sandvik Coromant 6873010 CoroBore® 826, C3, 1.5925 to 1.6358 in Bore, Right Hand, TCMT Insert
Modular Boring Cutting Unit Heads
1252180
MFG #: 6873010
Sandvik Coromant
1824.68000
/ ea
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C3, 1.5925 to 1.6358 in Bore Dia, 1.2598 in Head Dia, 1.8897 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 09 02 04, Steel
- Features
| Bolt and segment clamping machine side adaptive interface |
| 0.0001 mm adjustment increment |
| 0.549 mm adjustment limit |
| 0 deg body half taper |
| 1 cutting item |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 32 mm Dia connection |
| EFW cutting feed |
| 0 deg orthogonal rake |
| 92 deg cutting edge |
| 0 deg inclination |
| 67 mm OAL |
| T to Triangle insert |
| 0.8 Nm torque |
| 826..TC-CxHP tool style |
| 20 life cycle state |
| ANSI Code: 826-41TC09-C3HP |
| ISO Code: 826-41TC09-C3HP |
