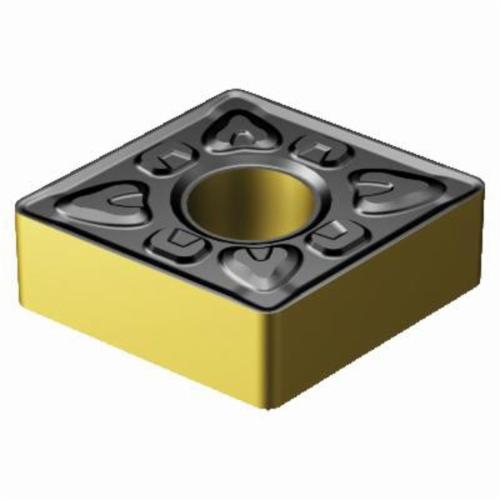

Sandvik Coromant 6863487 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-XMR 4325, C-80 deg Diamond, CNMG Insert
CNMG Turning Inserts
1123439
MFG #: 6863487
Sandvik Coromant
26.33000
/ ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 544-XMR 4325, ISO Code: CNMG 16 06 16-XMR 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
- Features
| Positive flank |
| Chip breaking in moderate feed range |
| Positive rake, low cutting forces |
| Chipbreaker on one side with hole and countersink |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.7 mm/r cutting feed |
| 20 life cycle state |
