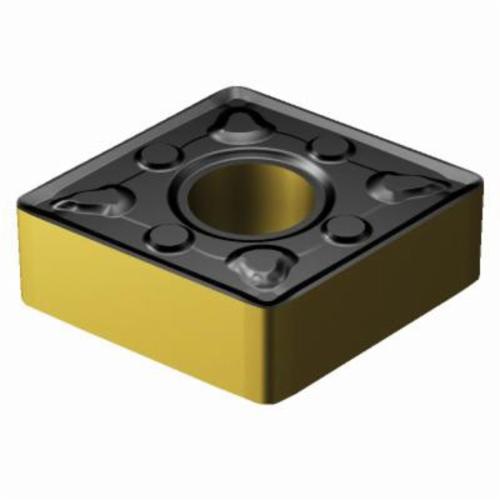

Sandvik Coromant 6707497 T-Max® P Negative Basic Shape Turning Insert, CNMG 432-WM 4305, C-80 deg Diamond, CNMG Insert, 4305
CNMG Turning Inserts
921579
MFG #: 6707497
Sandvik Coromant
21.27000
/ ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: CNMG 432-WM 4305, ISO Code: CNMG 12 04 08-WM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
- Features
| 6630 grade functionally gradient substrate |
| Relatively low content of cobalt binder phase |
| Highly versatile material with very good operational reliability |
| Medium and higher cutting speed |
| Continuous and interrupted cut |
| Unfavourable cutting conditions, continuous and interrupted cuts |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.15 - 0.6 mm/r cutting feed |
| 20 life cycle state |
