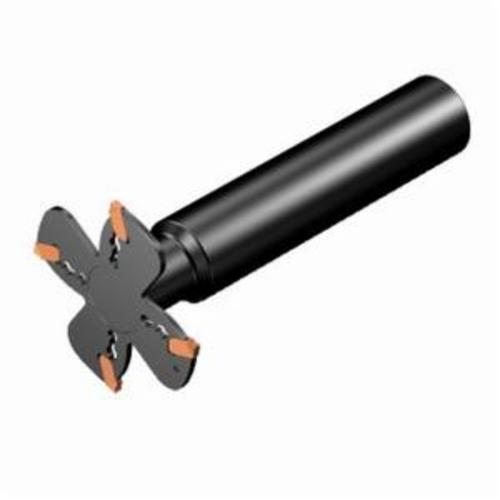

Sandvik Coromant 6657594 CoroMill® QD Indexable, Right Hand, 0.8267 in Max Depth of Cut, Steel
Indexable Slotting Cutters
1244633
MFG #: 6657594
Sandvik Coromant
900.14000
/ ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 2.4803 in Cutting Dia, 1 in, 0.8267 in Maximum Depth of Cut, 4 Inserts, 1 in Shank Dia, Cylinder Shank, Right Hand Cutting, Steel
- Features
| Cylindrical shank machine side adaptive interface without clamping |
| 10 life cycle state |
| 19 mm Dia body |
| 0 deg body half taper |
| 4 cutting item |
| Without coolant entry |
| Integrated spring clamping |
| 2.39 mm W cutting |
| No coolant exit |
| 19 mm Dia neck |
| SFW feed direction |
| 90 deg cutting edge |
| 22.3 mm L body |
| 130 mm L OAL |
| 23.9 mm L usable |
| QD-NF-0239-020E-PM compatible insert |
| 25.4 - 72.06 mm overhang |
| 5600 r/min |
| 4 face/peripheral effective cutting edges |
| F insert seat |
