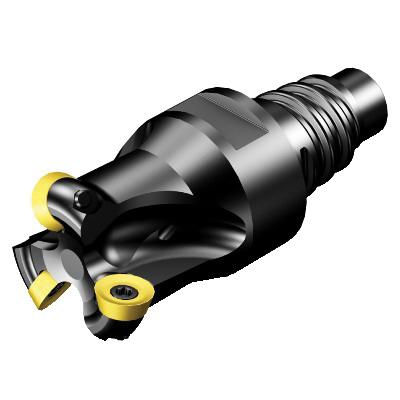

Sandvik Coromant 6550011 CoroMill® 300 Face Milling Cutter, 0.2755 in Cutting, 0.4606 in Shank, 1.3307 in OAL, R300..EH Insert, 0.0984 in Max Depth of Cut
Indexable Face Mills
1238883
MFG #: 6550011
Sandvik Coromant
417.27000
/ ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.2755 in Cutting Dia, 1.3307 in Overall Length, 0.0984 in Maximum Depth of Cut, R300..EH Insert, 3 Inserts, Insert Compatibility: R300-0517, 0.4606 in Shank Dia, Right Hand Cutting, ANSI Code: R300-12EH12-05M, ISO Code: R300-12EH12-05M, Steel
- Features
| Axial concentric coolant entry |
| Coromant EH adaptive interface |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 12 mm Dia maximum cutting |
| 20 mm overhang |
| 10 deg maximum ramping |
| 20000 r/min |
| 0.6 Nm torque |
| 20 life cycle state |
| Coromant EH adaptive interface |
