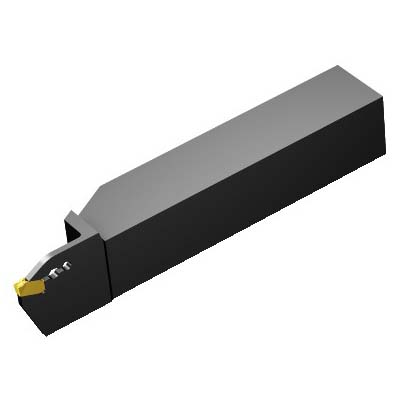

Sandvik Coromant 6427635 CoroCut® QD Indexable Shank Tool, QD-NH-0400-0002-CM insert, H Insert Seat, Right Hand
Indexable Grooving/Cut-Off Tool Holders
1230141
MFG #: 6427635
Sandvik Coromant
293.85000
/ ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NH-0400-0002-CM, QD-RFH33-2525A, 5.9055 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 1.2992 in Maximum Depth of Cut, Steel
- Features
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| No coolant exit |
| 90 deg cutting edge |
| 42 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QD-RFH33-2525A |
| ISO Code: QD-RFH33-2525A |
