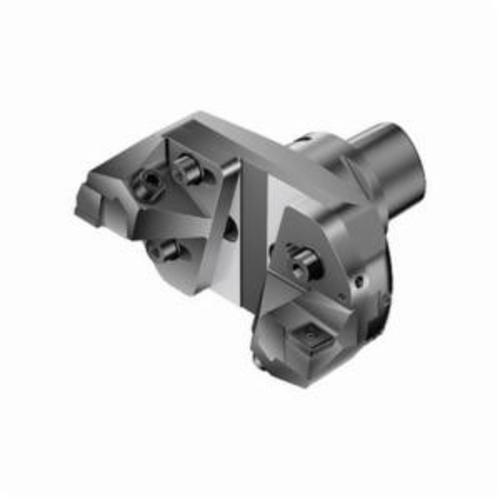

Sandvik Coromant 6352153 CoroBore® 820 XL Rough Boring Tool, 9.7637 in Min, 11.811 in Max, 6.6929 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352153 CoroBore® 820 XL Rough Boring Tool, 9.7637 in Min, 11.811 in Max, 6.6929 in OAL, Right Hand
SKU1228302
MFGR #6352153
Your Cost: $4,465.88/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-300SP18-C8 Catalog Number 6352153 Country of Origin NL Finish 5757635 Key, 5758337 Key, 5764133 Key, 6352008 Adaptor, 6352042 Slide and 6352044 Cartridge Gross Weight Per Pack 20.8100 lb Insert Screw 170 mm Insert Shape Square Insert Thickness 7/32 in Item Group 530 Overall Length 6.6929 in Series CoroBore® 820 XL Shank Diameter 3.1496 in Shank Type S-Square Type CoroBore® 820 XL UPC 11 69826274193 Width Offset 80 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility 880-0906W08H-P-GM Material Steel Maximum Bore Diameter 11.811 in Maximum Bore Depth 80 mm Minimum Bore Diameter 9.7637 in Bolt and segment clamping machine side adaptive interface 1.5 - 26 mm adjustment limit 2 cutting items Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit EFW feed direction 5 deg orthogonal rake 52 mm H support 90 deg cutting edge -6 deg inclination 122 mm L functional 122 mm L protruding 104 mm H 122 mm overhang 1541 r/min 3 Nm torque 820..SP-Cx (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-300SP18-C8 |
| Catalog Number | 6352153 |
| Country of Origin | NL |
| Finish | 5757635 Key, 5758337 Key, 5764133 Key, 6352008 Adaptor, 6352042 Slide and 6352044 Cartridge |
| Gross Weight Per Pack | 20.8100 lb |
| Insert Screw | 170 mm |
| Insert Shape | Square |
| Insert Thickness | 7/32 in |
| Item Group | 530 |
| Overall Length | 6.6929 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 3.1496 in |
| Shank Type | S-Square |
| Type | CoroBore® 820 XL |
| UPC 11 | 69826274193 |
| Width Offset | 80 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | 880-0906W08H-P-GM |
| Material | Steel |
| Maximum Bore Diameter | 11.811 in |
| Maximum Bore Depth | 80 mm |
| Minimum Bore Diameter | 9.7637 in |
| Bolt and segment clamping machine side adaptive interface |
| 1.5 - 26 mm adjustment limit |
| 2 cutting items |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| EFW feed direction |
| 5 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| -6 deg inclination |
| 122 mm L functional |
| 122 mm L protruding |
| 104 mm H |
| 122 mm overhang |
| 1541 r/min |
| 3 Nm torque |
| 820..SP-Cx (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
