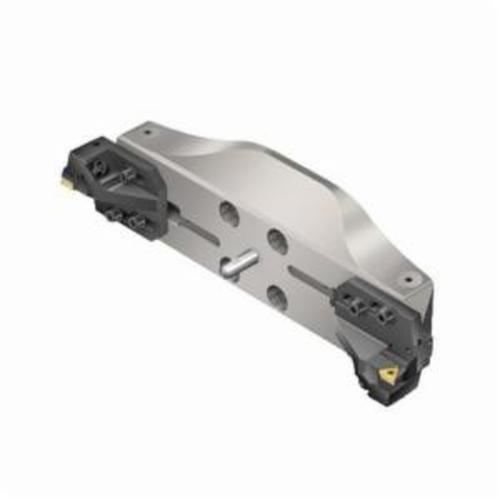

Sandvik Coromant 6352121 CoroBore® 820 XL Rough Boring Tool, 18.0315 in Min, 21.2598 in Max, 4.8818 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6352121 CoroBore® 820 XL Rough Boring Tool, 18.0315 in Min, 21.2598 in Max, 4.8818 in OAL, Right Hand
SKU1228271
MFGR #6352121
Your Cost: $5,187.15/ea
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
CoroBore® XL is the boring tool system for large diameter boring. The bridges and holders enable rough boring to be completed with high productivity. The system gives a more rigid and reliable performance in larger bores, and is designed to generate the required hole quality and diameter.
Alternate Catalog Number 820-540TC22 Catalog Number 6352121 Country of Origin NL Gross Weight Per Pack 27.8500 lb Insert Screw 124 mm Insert Shape Triangle Insert Thickness 3/16 in Item Group 530 Overall Length 4.8818 in Series CoroBore® 820 XL Shank Diameter 1.5748 in Shank Type T-Triangular Type 5757635 Key, 5758337 Key, 5758340 Key, 5764133 Key, 5924270 Stop Plate Set, 5924283 Bridge, 5924291 Cartridge and 5924293 Slide UPC 11 69826274213 Width Offset 40 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TCMT 22 04 08 Material Aluminum/Steel Maximum Bore Diameter 21.2598 in Maximum Bore Depth 40 mm Minimum Bore Diameter 18.0315 in 1.5 - 41 mm adjustment limit 2 cutting items Axial concentric coolant entry 70 bar coolant Axial inclined coolant exit 101.6 mm Dia bolt circle EFW feed direction 0 deg orthogonal rake 52 mm H support 90 deg cutting edge 0 deg inclination 124 mm L functional 124 mm L protruding 164 mm H 124 mm overhang 834 r/min 3 Nm torque 820..TC (XL) tool style 1200 m/min maximum cutting Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 820-540TC22 |
| Catalog Number | 6352121 |
| Country of Origin | NL |
| Gross Weight Per Pack | 27.8500 lb |
| Insert Screw | 124 mm |
| Insert Shape | Triangle |
| Insert Thickness | 3/16 in |
| Item Group | 530 |
| Overall Length | 4.8818 in |
| Series | CoroBore® 820 XL |
| Shank Diameter | 1.5748 in |
| Shank Type | T-Triangular |
| Type | 5757635 Key, 5758337 Key, 5758340 Key, 5764133 Key, 5924270 Stop Plate Set, 5924283 Bridge, 5924291 Cartridge and 5924293 Slide |
| UPC 11 | 69826274213 |
| Width Offset | 40 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TCMT 22 04 08 |
| Material | Aluminum/Steel |
| Maximum Bore Diameter | 21.2598 in |
| Maximum Bore Depth | 40 mm |
| Minimum Bore Diameter | 18.0315 in |
| 1.5 - 41 mm adjustment limit |
| 2 cutting items |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 101.6 mm Dia bolt circle |
| EFW feed direction |
| 0 deg orthogonal rake |
| 52 mm H support |
| 90 deg cutting edge |
| 0 deg inclination |
| 124 mm L functional |
| 124 mm L protruding |
| 164 mm H |
| 124 mm overhang |
| 834 r/min |
| 3 Nm torque |
| 820..TC (XL) tool style |
| 1200 m/min maximum cutting |
| Reliable system with rigid interfaces between head and cartridge for stable and vibration-free boring |
