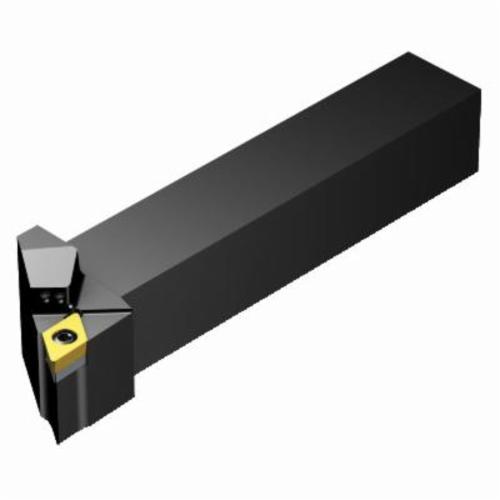

Sandvik Coromant 6188504 CoroTurn 107 Shank Tool, SDJCR/L..HP Tool Holder, DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Right Hand
Indexable Turning Tool Holders
1246595
MFG #: 6188504
Sandvik Coromant
360.06000
/ ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SDJCR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: SDJCR 1616H 11HP, ISO Code: SDJCR 1616H 11HP, 0 deg Rake, Steel
- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 28 mm maximum overhang |
| 3 Nm torque |
| 20 mm W functional |
| 40 - 60 deg insert screw clamping |
| D - 55 deg diamond insert |
| ANSI Code: SDJCR 1616H 11HP |
| ISO Code: SDJCR 1616H 11HP |
