Without coolant entry |
7.25 mm neck diameter |
32.804 mm usable length |
8.8 mm pre-machined hole diameter |
9.525 mm thread diameter |
M, N, P and S material grade |
Thread back taper property |
Released life cycle state |

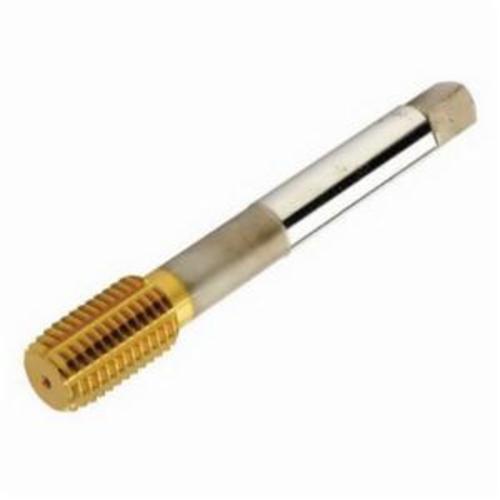

Taps that form the thread instead of cutting |
A chip-free solution |
All materials not suitable since there is need of certain ductility |
Recommended tensile strength limit is 1200 N/sq-mm |
For through or blind holes applications |
3XD cutting depth |
0.381 x 0.286 in tap shank adaptive interface machine direction |
C2-3 chamfer |
